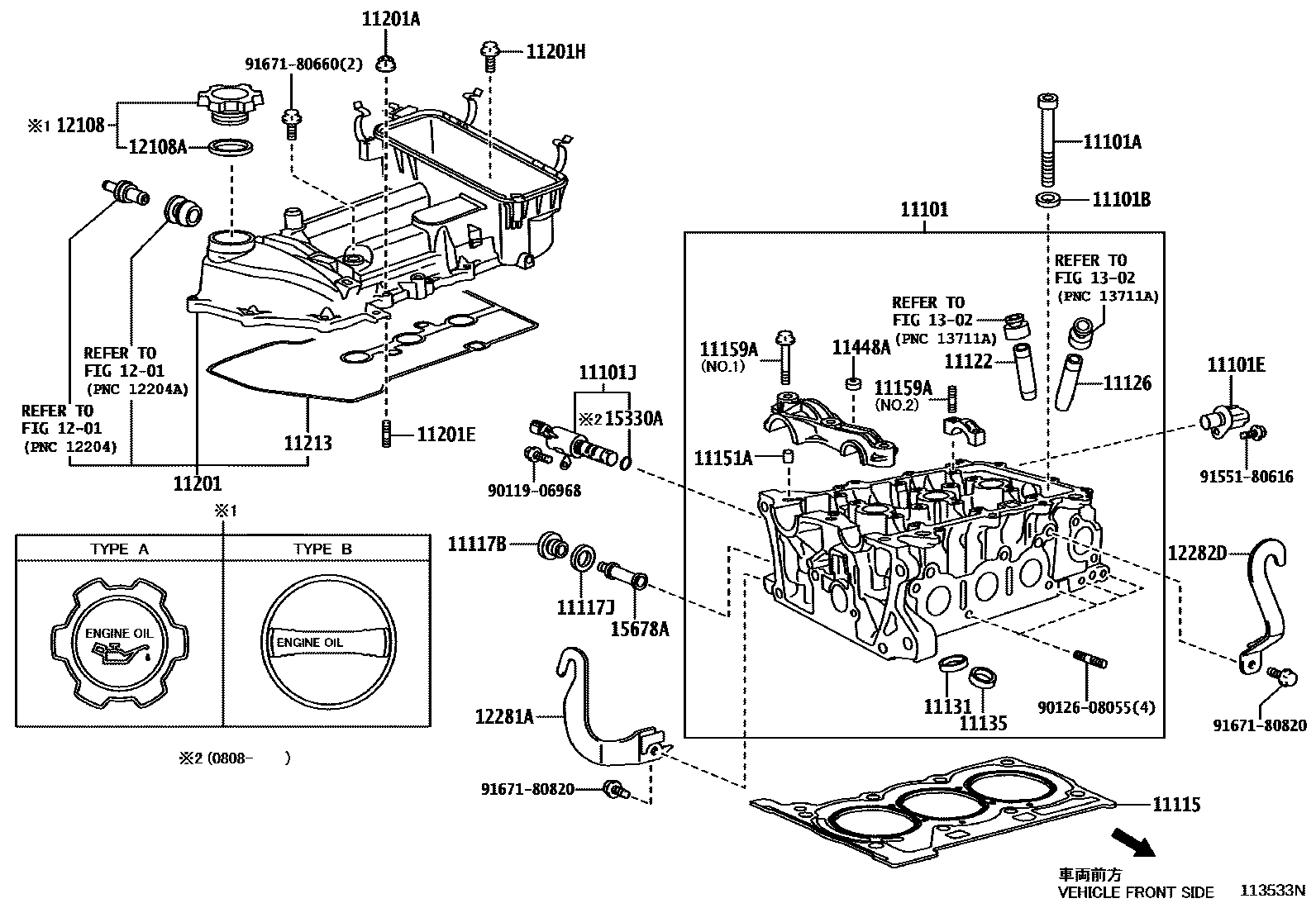

Toyota VITZ — CYLINDER HEAD
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
11126BUSH, EXHAUST VALVE GUIDE
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201EBOLT, STUD(FOR CYLINDER HEAD COVER SET)
11201HBOLT(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
11448AORIFICE, CYLINDER HEAD OIL
1201
12108AGASKET(FOR OIL FILLER CAP)
12282DHANGER, ENGINE, NO.2
1302
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
9011906968
main90119-06968
9012608055
main90126-08055
9155180616
main91551-80616
9167180660
main91671-80660
9167180820
main91671-80820
33 parts on this diagram · 4 diagrams in section
