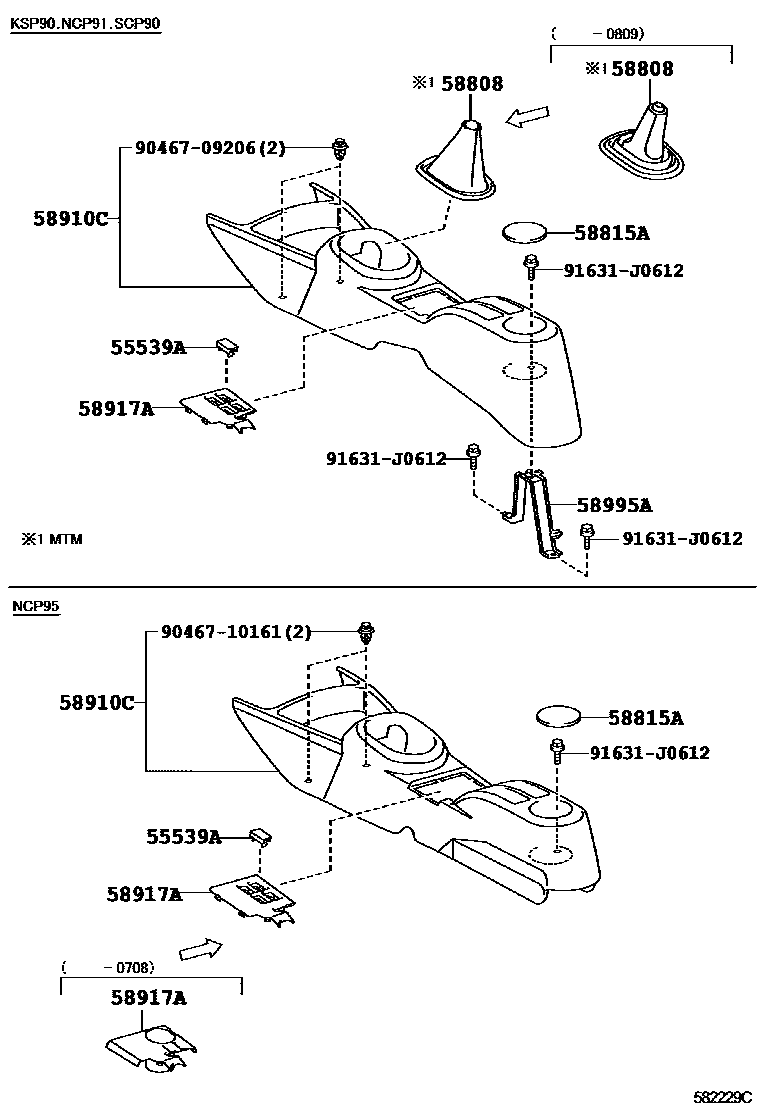

Toyota VITZ — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-B0iKSP90..B,F200501-200704

sub55539-52060

main55539-52060-B0iKSP90..B,F200501-200704

sub55539-52060

main55539-52060-B0iKSP90..B,F200501-200704

DK.GRAY,TRIM1#

sub55539-52060

main55539-52060-B0iKSP90..B,F200501-200704

DK.GRAY,TRIM1#,4#

sub55539-52060

main55539-52060-B0iNCP91..RS200501-200704

sub55539-52060

main55539-52060-B0iNCP95..ILL200512-200704

sub55539-52060

main55539-52060-B0iNCP95..ILL200512-200704

DK.GRAY,TRIM4#

sub55539-52060

main55539-52070-B0iNCP95..F,U200705-200708

DK.GRAY,TRIM1#,4#

sub55539-52070

main55539-52070-B0iNCP95..F,U200705-200708

DK.GRAY,TRIM4#

sub55539-52070

main55539-52070-B0iNCP95..ILL200705-200708

sub55539-52070

main55539-52070-B0iNCP95..ILL200705-200708

sub55539-52070

main55539-52070-B0iNCP95..ILL200705-200708

sub55539-52070

main55539-52070-B0iNCP95..ILL200705-200708

sub55539-52070

main55539-52070-B0iNCP95..ILL200705-201012

sub55539-52070

main55539-52070-B0iNCP95..ILL200705-201012

DK.GRAY,TRIM1#

sub55539-52070

main55539-52070-B0iKSP90..F200708-200808

sub55539-52070

main55539-52070-B0iKSP90..F200708-201012

sub55539-52070

main55539-52070-B0iKSP90..F200708-200808

sub55539-52070

main55539-52070-B0iKSP90..F200708-200808

sub55539-52070

main55539-52070-B0iKSP90..F200708-201012

sub55539-52070

main55539-52070-B0iKSP90..F200708-200808

sub55539-52070

main55539-52070-E0iKSP90,NCP95,SCP90..B,F200708-200808

sub55539-52070

main55539-52070-E0iKSP90,NCP95,SCP90..B,F200708-201012

sub55539-52070

main55539-52070-E0iKSP90,NCP95,SCP90..B,F200708-201012

sub55539-52070

main55539-52070-E0iKSP90,NCP95,SCP90..B,F200708-201012

ASH BROWN,TRIM4#

sub55539-52070

main55539-52070-E0iKSP90,NCP95,SCP90..B,F200708-200808

sub55539-52070

main55539-52070-E0iKSP90,NCP95,SCP90..B,F200708-201012

sub55539-52070

main55539-52070-E0iKSP90,NCP95,SCP90..F200708-200808

sub55539-52070

main55539-52070-E0iKSP90,NCP95,SCP90..F200708-200808

sub55539-52070

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-52060-B1iNCP91..5F200501-200809

DK.GRAY,TRIM1#

main58808-52090-B0iNCP91..5F200809-200911

DK.GRAY,TRIM1#

main58808-52170-B0iNCP91..5F200911-201007

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-52050iNCP91..5F200501-201012

58910CBOX ASSY, CONSOLE, REAR

main58910-52020-B0iNCP91..5F200501-201012

DK.GRAY,TRIM1#

main58910-52020-B0iNCP91,SCP90..ILL200708-200808

DK.GRAY,TRIM1#,42

main58910-52020-B0iNCP91,SCP90..ILL200708-200808

DK.GRAY,TRIM42

main58910-52020-B0iKSP90,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

main58910-52020-B0iKSP90,NCP91,SCP90..B,F,U,X200501-200708

DK.GRAY,TRIM1#,4#

main58910-52020-E0iKSP90,NCP91,SCP90..B,F,ILL,U200808-201012

ASH BROWN,TRIM4#

main58910-52020-E0iKSP90,NCP91,SCP90..B,F,ILL,U200708-200808

ASH BROWN,TRIM42

main58910-52030-B0iNCP95..F,U200708-200808

DK.GRAY,TRIM42

main58910-52030-B0iNCP95..ILL200708-200808

DK.GRAY,TRIM1#,42

main58910-52030-B0iNCP95..F,U200808-201012

DK.GRAY,TRIM1#

main58910-52030-B0iNCP95..F,U200501-200708

DK.GRAY,TRIM1#,4#

main58910-52030-B0iNCP95..ILL200512-200708

DK.GRAY,TRIM4#

main58910-52030-E0iNCP95200808-201012

ASH BROWN,TRIM4#

main58910-52030-E0iNCP95200708-200808

ASH BROWN,TRIM42

58917ACOVER, CONSOLE BOX, REAR

main58917-52040-B0iNCP91..RS200501-200708

DK.GRAY,TRIM1#,4#

sub58917-52041

main58917-52040-B0iKSP90,NCP91,SCP90..B,F,U,X200501-200901

DK.GRAY,TRIM1#

sub58917-52041

main58917-52040-B0iNCP91,SCP90..ILL200708-200808

DK.GRAY,TRIM42

sub58917-52041

main58917-52040-B0iKSP90,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub58917-52041

main58917-52040-B0iKSP90,NCP91,SCP90..B,F,U200708-200808

DK.GRAY,TRIM1#,42

sub58917-52041

main58917-52040-E0iKSP90,NCP91,SCP90..B,F,ILL,U200708-200808

ASH BROWN,TRIM42

sub58917-52041

main58917-52040-E0iKSP90,NCP91,SCP90..B,F,ILL,U200808-200901

ASH BROWN,TRIM4#

sub58917-52041

main58917-52041-B0iKSP90,NCP91,SCP90..CVFC..(B,F,RS,U)200902-201012

DK.GRAY,TRIM1#

main58917-52041-E0iKSP90,NCP91,SCP90..B,F,ILL,U200902-201012

ASH BROWN,TRIM4#

main58917-52050-B0iNCP95..ILL200512-200708

DK.GRAY,TRIM4#

main58917-52050-B0iNCP95..F,U200501-200708

DK.GRAY,TRIM1#,4#

main58917-52090-B0iNCP95..F,U200708-201012

DK.GRAY,TRIM1#

main58917-52090-E0iNCP95200708-201012

ASH BROWN,TRIM4#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-52010iKSP90,NCP91,SCP90..CVFC200501-201012

9046709206

main90467-09206

9046710161

main90467-10161

91631J0612

main91631-J0612

9 parts on this diagram · 1 diagram in section
