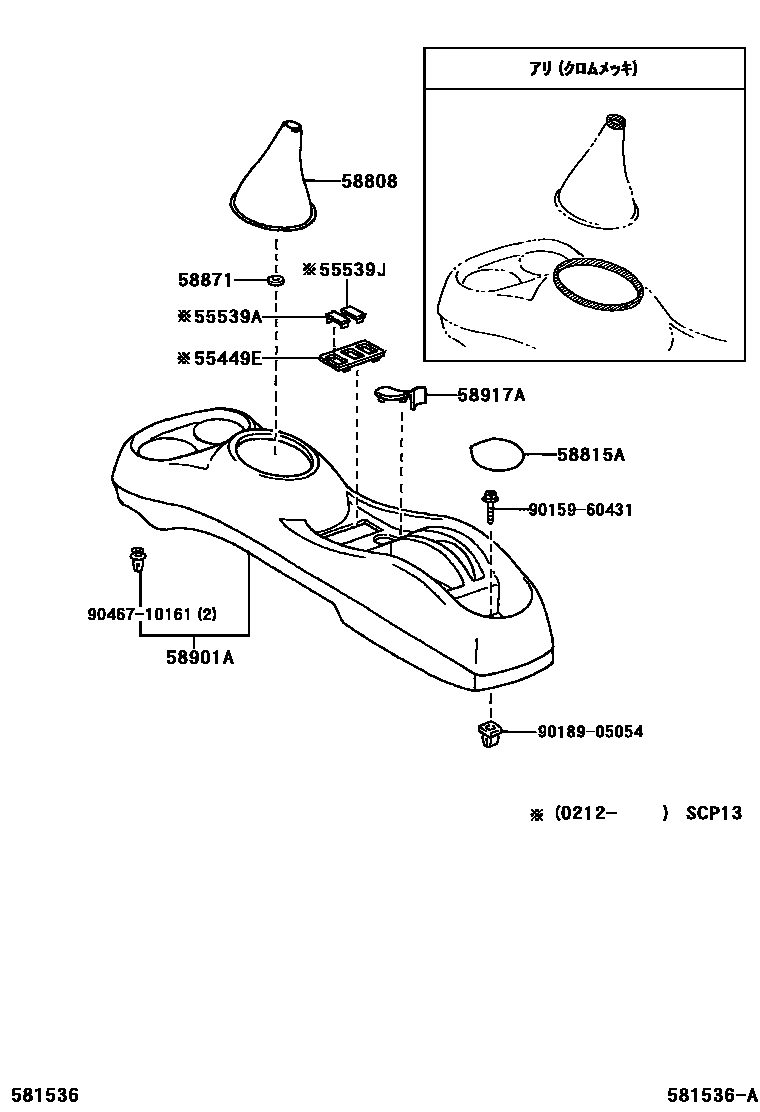

Toyota VITZ — CONSOLE BOX & BRACKET

55449EBASE, SWITCH

main55449-52010-B3iSCP13..U200212-200501

DK.GRAY,TRIM0#,96,98

55539ACOVER, SPARE SWITCH HOLE

main55539-32010-P3iSCP13..U200212-200501

DK.GRAY,TRIM0#,96,98

sub55539-32030

main55539-32010-P5iSCP13..U200308-200501

MD.GRAY,TRIM96,98

sub55539-32030

55539JCOVER, SPARE SWITCH HOLE

main55539-32010-P3iSCP13..U200212-200501

DK.GRAY,TRIM0#,96,98

sub55539-32030

main55539-32010-P5iSCP13..U200308-200501

MD.GRAY,TRIM96,98

sub55539-32030

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-52020-B0iSCP10..5F..(F,U)199901-199908

BLUE GRAY,TRIM1#

main58808-52020-B3iNCP15,SCP10..5F..(B,F)200112-200212

SHADOW GRAY,TRIM1#

main58808-52020-B4iNCP15,SCP10..5F200212-200501

DK.GRAY,TRIM9#

main58808-52020-G0iNCP10,15,SCP10..5F..(B,F,U)199901-200112

MIST GREEN,TRIM7#

main58808-52030-C0iNCP10,13..5F..RS200010-200212

BLACK,TRIM9#

main58808-52040-B0iNCP10,15,SCP10..5F..(F,U)200112-200212

SHADOW GRAY,TRIM1#

main58808-52050-B0iNCP10,13..5F;NCP15,SCP10..5D..5F..F200212-200501

58815ACARPET, CONSOLE BOX

main58815-52010iNCP1#,SCP10199901-200112

58871CUSHION, CONSOLE BOX

main58871-20060iNCP1#,SCP10..5F..(CLA,F,RS,U)200112-200212

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-52010-B0iNCP10,15,SCP10..B,CLA,F,U199901-200112

MD.GRAY,TRIM1#

main58911-52010-B2iNCP15,SCP10..B,F200112-200212

SHADOW GRAY,TRIM1#

main58911-52010-B3iNCP15,SCP10..(4FC,5F)..(B,F)200212-200501

DK.GRAY,TRIM9#

main58911-52010-G0iNCP10,15,SCP10..B,F,U199901-200112

MIST GREEN,TRIM7#

main58911-52020-B1iNCP10,15,SCP10..F,U200112-200212

main58911-52020-B2iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

58917ACOVER, CONSOLE BOX, REAR

main58917-52010-B0iNCP10,15,SCP10..B,CLA,F,U199901-200112

MD.GRAY,TRIM1#

main58917-52010-B2iNCP10,13..RS200112-200212

SHADOW GRAY,TRIM1#

main58917-52010-B3iSCP13..U200212-200501

DK.GRAY,TRIM9#

main58917-52010-G0iNCP10,15,SCP10..B,F,U199901-200112

MIST GREEN,TRIM7#

9015960431

main90159-60431

9018905054

main90189-05054

9046710161

main90467-10161

11 parts on this diagram · 1 diagram in section
