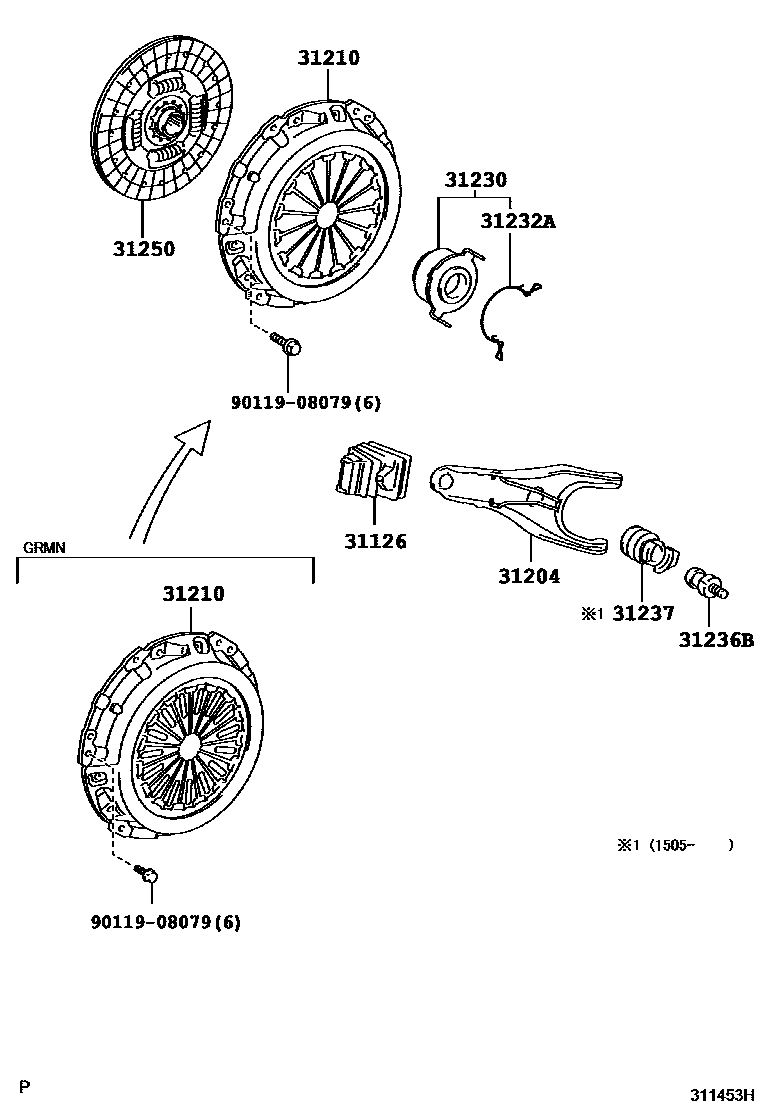

Toyota VITZ — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP131..5F201709

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP131..5F201709

31210COVER ASSY, CLUTCH

main31210-52180iNCP131..5F201709

main31210-52200supersedes 31210-52180iNCP131..5F201309-201402

31230BEARING ASSY, CLUTCH RELEASE

main31230-12181iNCP131..5F201709

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP131..5F201012-201404

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP131..5F201012-201404

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-52010iNCP131..5F201505-201701

31250DISC ASSY, CLUTCH

main31250-52050iNCP131..5F201709

main31250-52131supersedes 31250-52050iNCP131..5F201309-201402

9011908079

main90119-08079

9 parts on this diagram · 1 diagram in section
