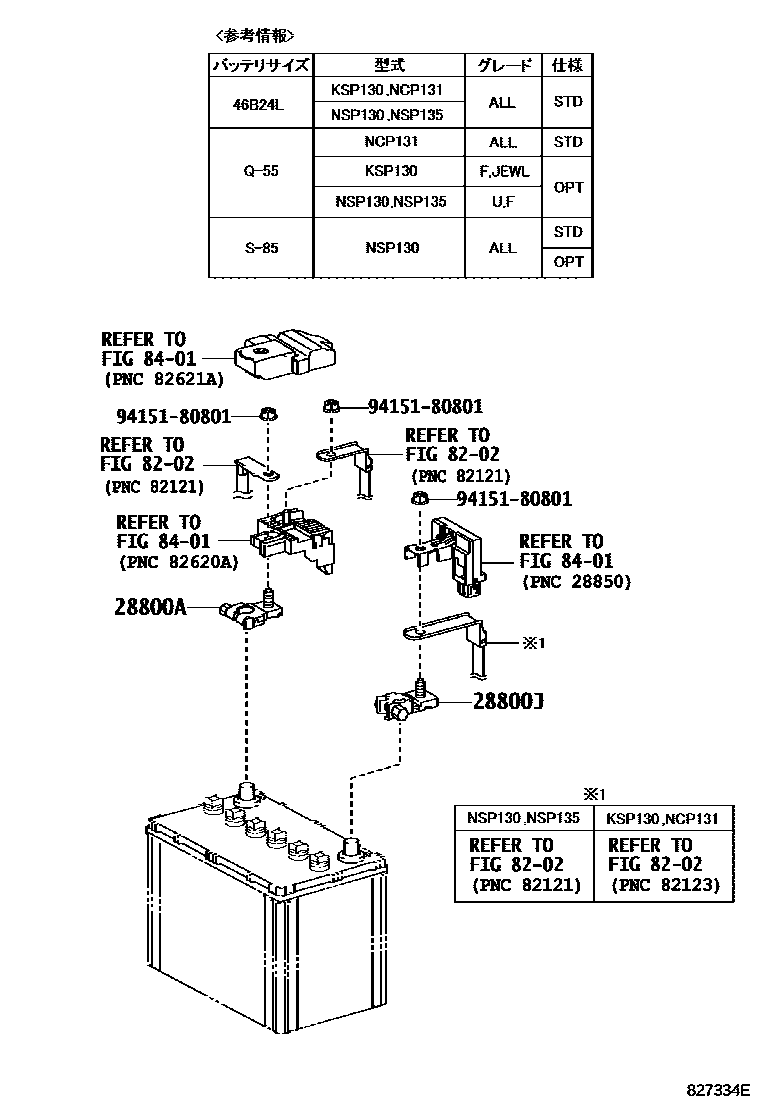

Toyota VITZ — BATTERY & BATTERY CABLE
28800ATERMINAL, BATTERY POSITIVE
main90982-05061i1KRFE,1NRFE..KSP130,NSP135..F..CBU; 1KRFE..KSP130..CBU; 1NRFE..NSP135..U..CBU; 1NZFE,1NRFKE..NCP131,NSP130..CVT201404-201701
28800JTERMINAL, BATTERY NEGATIVE
main90982-06059i1KRFE,1NRFE..KSP130,NSP135..F..CBU; 1KRFE..KSP130..CBU; 1NRFE..NSP135..U..CBU; 1NZFE,1NRFKE..NCP131,NSP130..CVT201404-201701
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
9415180801
main94151-80801
5 parts on this diagram · 5 diagrams in section
BATTERY & BATTERY CABLE for Toyota VITZ
This section contains 44 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota VITZ. Key components include: TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), TERMINAL, BATTERY NEGATIVE, HOSE, BATTERY, INSULATOR, BATTERY.
