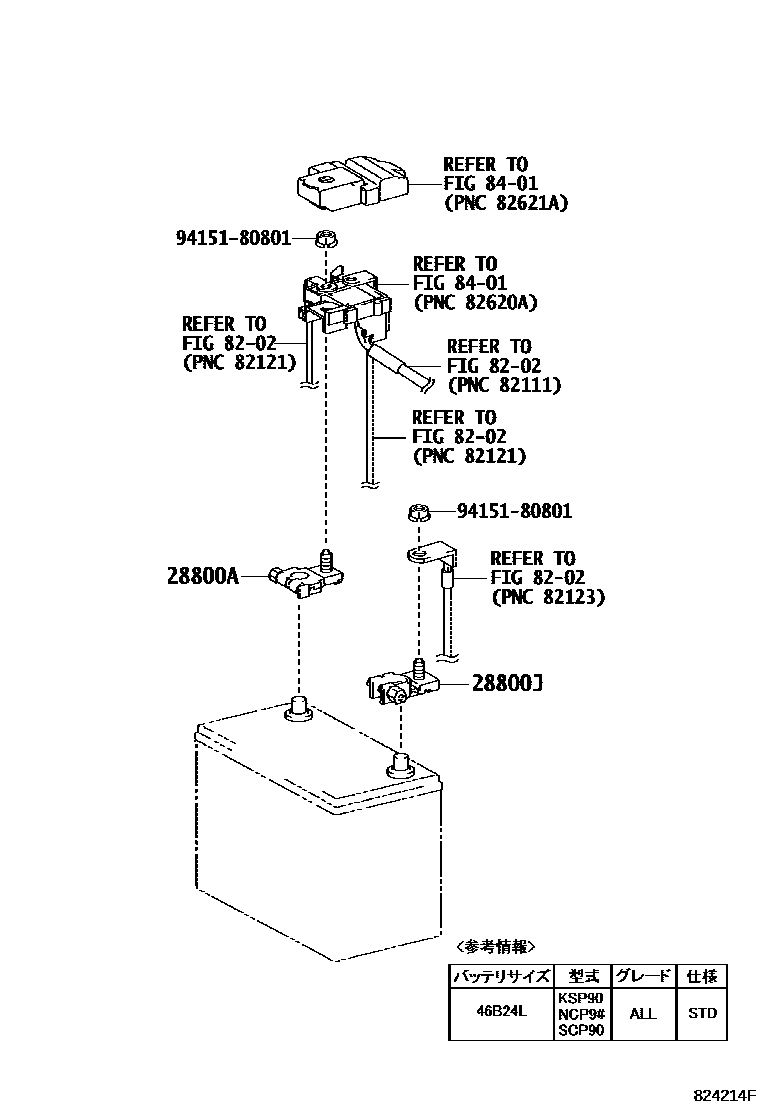

Toyota VITZ — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05055i200501-200708

28800JTERMINAL, BATTERY NEGATIVE

main90982-06058i200501-200708

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

5 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota VITZ

This section contains 5 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota VITZ. Key components include: TERMINAL, BATTERY POSITIVE, TERMINAL, BATTERY NEGATIVE, WIRING & CLAMP, SWITCH & RELAY & COMPUTER.
