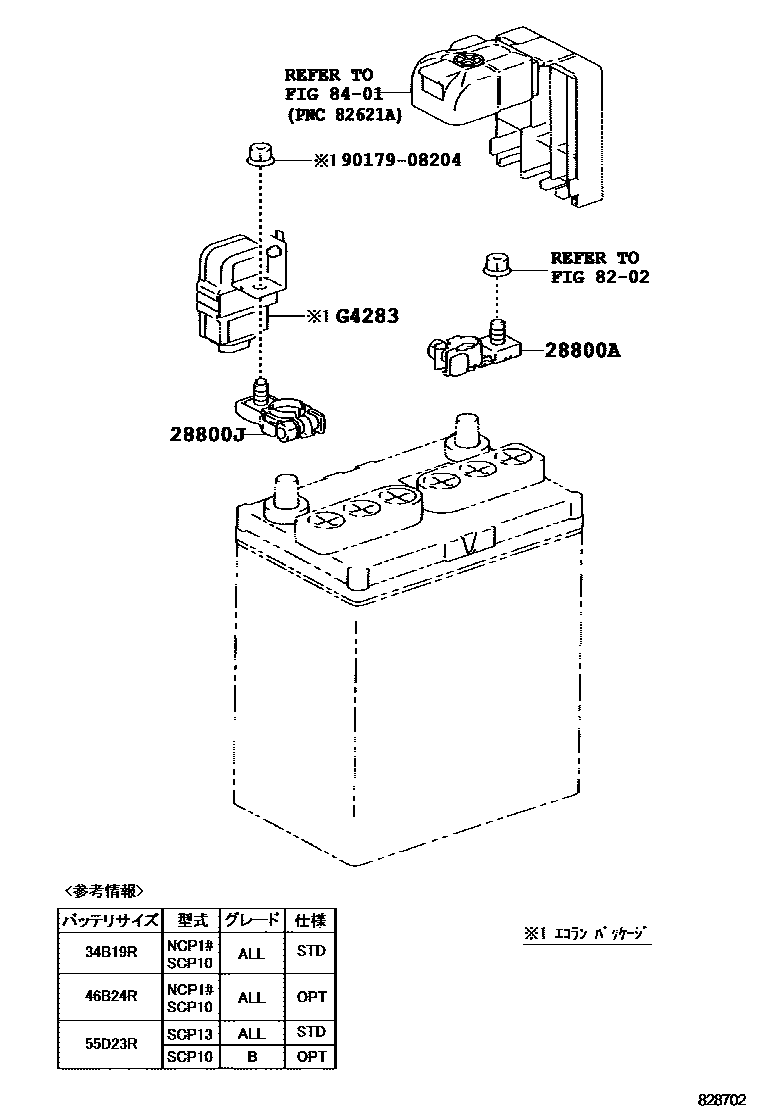

Toyota VITZ — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05052i200112-200212

main90982-05053i200212

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i200105-200112

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

G4283SENSOR, BATTERY CURRENT

mainG428352010i200105-200112

9017908204

main90179-08204

6 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota VITZ

This section contains 6 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota VITZ. Key components include: TERMINAL, BATTERY POSITIVE, TERMINAL, BATTERY NEGATIVE, WIRING & CLAMP, SWITCH & RELAY & COMPUTER, SENSOR, BATTERY CURRENT.
