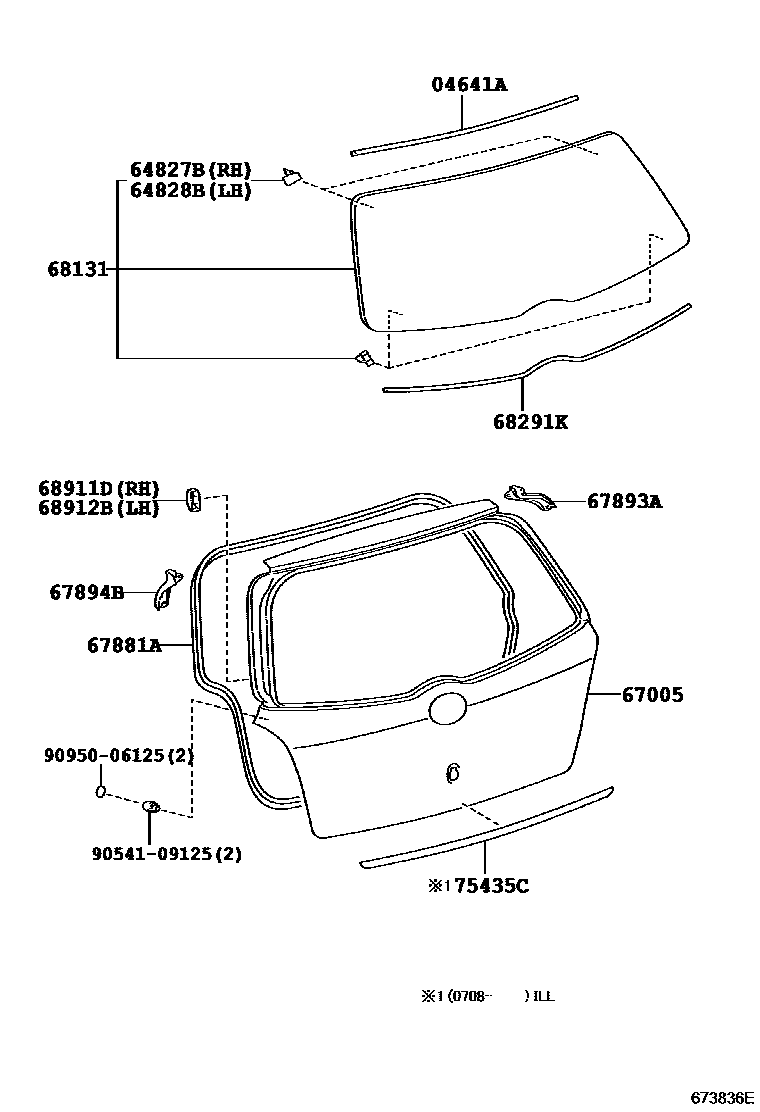

Toyota VITZ — BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main64813-52070iKSP90,NCP9#,SCP90200501-201012

sub56117-74010

64827BCLIP, BACK WINDOW GLASS, RH

main64827-52070iKSP90,NCP9#,SCP90..B,F,ILL,U200501-201012

64828BCLIP, BACK WINDOW GLASS, LH

main64828-52050iKSP90,NCP9#,SCP90200501-201012

67005PANEL SUB-ASSY, BACK DOOR

main67005-52720iNCP91,SCP90..RS200708-201012

sub67005-52A50

main67005-52720iNCP91..RS200501-200708

sub67005-52A50

main67005-52730iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-201012

67881AWEATHERSTRIP, BACK DOOR

main67881-52110iKSP90,NCP9#,SCP90200501-201012

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-52040iKSP90,NCP9#,SCP90200501-201012

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-52040iKSP90,NCP9#,SCP90200501-201012

68131GLASS, BACK DOOR

main68105-52380iKSP90..B200501-201012

main68105-52450iKSP90,NCP9#,SCP90..F,ILL,RS,U,X200501-200706

sub68105-52451

main68105-52451iKSP90,NCP9#,SCP90..F,ILL,U200707-201012

68291KDAM KIT, BACK WINDOW GLASS

main64814-52040iKSP90,NCP9#,SCP90200501-201012

sub56117-50140

68911DCOVER, BACK DOOR STAY, RH

main68911-52010iKSP90,NCP9#,SCP90200501-201012

68912BCOVER, BACK DOOR STAY, LH

main68912-52010iKSP90,NCP9#,SCP90200501-201012

75435CORNAMENT, BACK DOOR

main75435-52010iNCP9#,SCP90..ILL200708-201012

9054109125

main90541-09125

9095006125

main90950-06125

14 parts on this diagram · 2 diagrams in section
