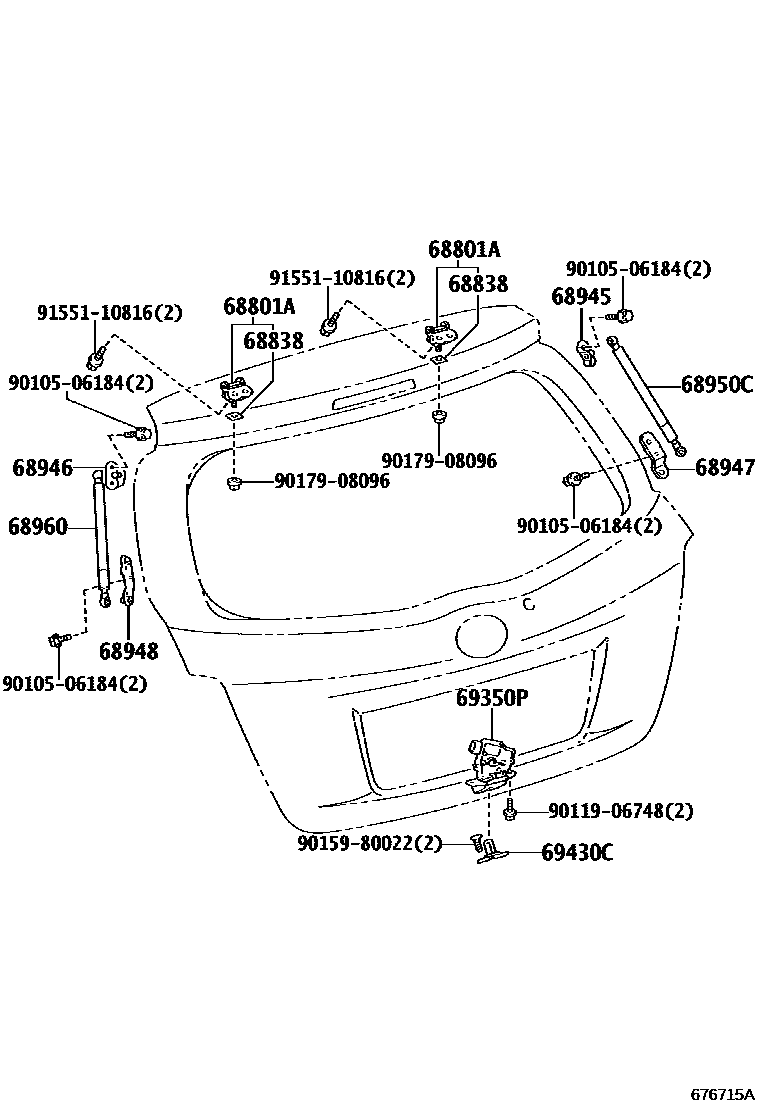

Toyota VITZ — BACK DOOR LOCK & HANDLE

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-52210×2iKSP130,NCP131,NHP130,NSP13#..CBU201810

sub68801-52211

main68801-74020×2iKSP130,NCP131,NHP130,NSP13#..CBU201701-201809

68838PAD, BACK DOOR HINGE, NO.1

main68838-74020×2iKSP130,NCP131,NHP130,NSP13#..CBU201701

main68838-74030×2iKSP130,NCP131,NHP130,NSP13#..CBU201701

main68838-74040×2iKSP130,NCP131,NHP130,NSP13#..CBU201701

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52110iKSP130,NCP131,NSP13#..CBU201404-201701

main68945-52140iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

main68945-52160iNCP131,NHP130..GRS201709

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-52110iKSP130,NCP131,NSP13#..CBU201012-201404

main68945-52160iNCP131,NHP130..GRS201709

main68946-52090iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-52020iKSP130,NCP131,NSP13#..CBU201404-201701

main68947-52040iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

main68947-52050iNCP131,NHP130..GRS201709

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-52020iKSP130,NCP131,NSP13#..CBU201012-201404

main68948-52040iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

main68948-52050iNCP131,NHP130..GRS201709

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W640iNCP131..5F;KSP130..CBU201012-201209

main68950-0W641iNCP131..5F;KSP130..CBU201209-201404

main68950-0W660iNCP131,NSP13#..CVT..CBU201012-201209

main68950-0W661iNCP131,NSP13#..CVT..CBU201209-201404

main68950-0W670iNCP131..5F;KSP130..CBU201012-201208

main68950-0W671iNCP131..5F;KSP130..CBU201209-201404

main68950-0W690iNCP131,NSP13#..CVT..CBU201012-201208

main68950-0W691iNCP131,NSP13#..CVT..CBU201404-201701

main68950-0WC70iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

main68950-0W650iKSP130..F..CBU201012-201209

main68950-0W651iKSP130..F..CBU201209-201404

main68950-0W680iKSP130..F..CBU201012-201208

main68950-0W681iKSP130..F..CBU201209-201404

main68950-0WC50iKSP130,NSP130..F..CBU201701

68960STAY ASSY, BACK DOOR, LH

main68960-0W620iNCP131..5F;KSP130..CBU201012-201209

main68960-0W621iNCP131..5F;KSP130..CBU201209-201404

main68960-0W640iNCP131,NSP13#..CVT..CBU201012-201209

main68960-0W641iNCP131,NSP13#..CVT..CBU201209-201404

main68960-0W650iNCP131..5F;KSP130..CBU201012-201208

main68960-0W651iNCP131..5F201709

main68960-0W670iNCP131,NSP13#..CVT..CBU201012-201208

main68960-0W671iNCP131,NSP13#..CVT..CBU201404-201701

main68960-0WC70iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

main68960-0W630iKSP130..F..CBU201012-201209

main68960-0W631iKSP130..F..CBU201209-201404

main68960-0W660iKSP130..F..CBU201012-201208

main68960-0W661iKSP130..F..CBU201404-201701

main68960-0WC50iKSP130,NSP130..F..CBU201701

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52390iKSP130,NCP131,NSP13#..CBU201012-201202

main69350-52391iKSP130,NCP131,NSP13#..CBU201203-201404

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52050iKSP130,NCP131,NSP13#..CBU201012-201404

9010506184

main90105-06184

9011906748

main90119-06748

9015980022

main90159-80022

9017908096

main90179-08096

9155110816

main91551-10816

15 parts on this diagram · 1 diagram in section
