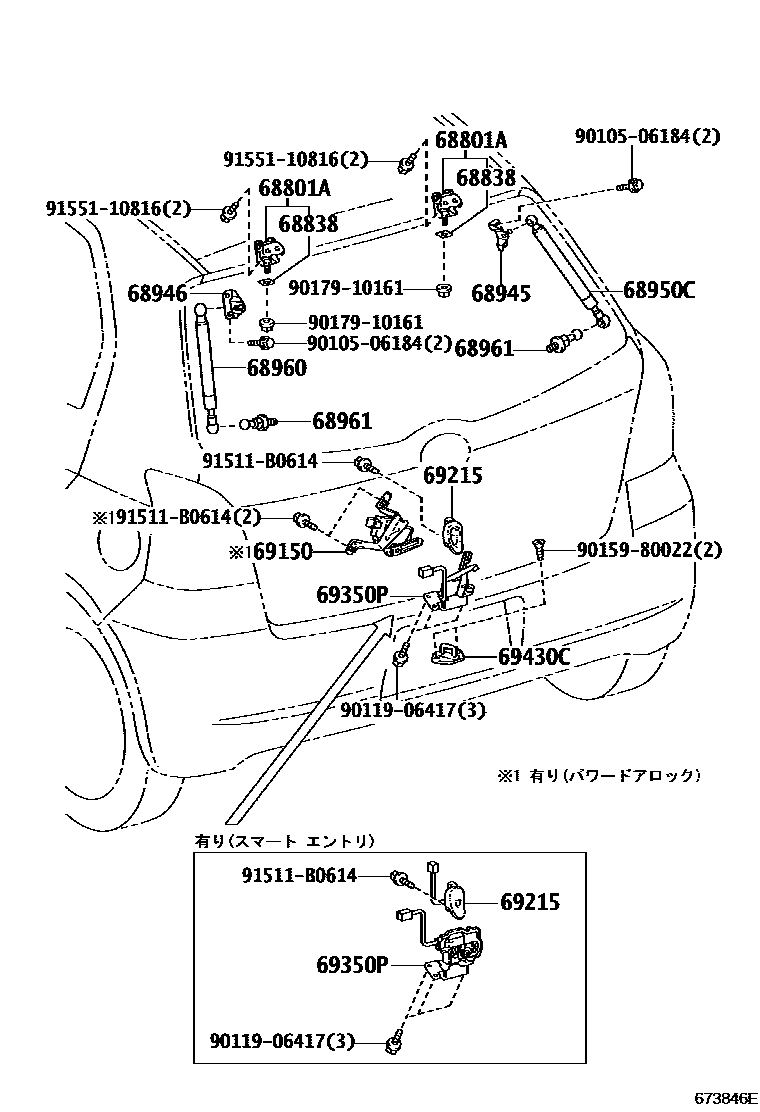

Toyota VITZ — BACK DOOR LOCK & HANDLE

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-52010iKSP90,NCP9#,SCP90200501-201012

68838PAD, BACK DOOR HINGE, NO.1

main68838-10020iNCP91,SCP90..RS200501-201012

main68838-52010iNCP91,SCP90..RS200501-201012

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52050iKSP90,NCP9#,SCP90200501-201012

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-52050iKSP90,NCP9#,SCP90..B,F,ILL,U200501-201012

68950CSTAY ASSY, BACK DOOR, RH

main68950-0D020iKSP90,NCP9#,SCP90200501-200702

sub68950-0D021

main68950-0D021iKSP90,NCP9#,SCP90200703-200804

sub68950-0D022

main68950-0D022iKSP90,NCP9#,SCP90200805-201012

68960STAY ASSY, BACK DOOR, LH

main68960-0D010iKSP90,NCP9#,SCP90200501-200702

sub68960-0D011

main68960-0D011iKSP90,NCP9#,SCP90200703-200804

sub68960-0D012

main68960-0D012iKSP90,NCP9#,SCP90200805-201012

68961BOLT, BACK DOOR STAY

main68961-10030iKSP90,NCP9#,SCP90200501-201012

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-52070iKSP90,NCP95,SCP90..F200708-200809

main69150-52070iKSP90,NCP9#,SCP90..B,F,ILL,RS,X200501-200708

main69150-52070iNCP91..5F200808-201012

main69150-52070iKSP90..U201007-201012

69215HANDLE, BACK DOOR OUTSIDE

main69209-52010iKSP90..U200808-201012

main69209-52010iKSP90,NCP9#,SCP90..F,ILL,RS,X200501-200708

main69209-52010iKSP90,NCP9#,SCP90..U200708-200808

main69209-52020-A0iNCP9#,SCP90..ILL200708-201012

WHITE PEARL CS.,070

main69209-52020-B0iNCP9#,SCP90..ILL200708-201012

MEDIUM SILVER ME.,1F8

main69209-52020-D0iNCP9#,SCP90..ILL200708-201011

DARK RED MC.,3Q8

main69209-52020-G0iNCP9#,SCP90..ILL200708-200807

DK.GREEN M.M.,6S3

main69209-52020-J0iNCP9#,SCP90..ILL200708-201012

GRAYISH BLUE M.M.,8T1

main69215-52060iKSP90,NCP9#,SCP90..ATM..(B,F,RS)200501-201012

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52110iNCP95,SCP90..U200501-200708

sub69350-52111

main69350-52110iKSP90,NCP9#,SCP90..ILL,U200708-200808

sub69350-52111

main69350-52110iKSP90..U200808-201012

sub69350-52111

main69350-52260iNCP91..5F200501-201012

sub69350-52261

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-20160iKSP90,NCP9#,SCP90..B,F,ILL,U200501-201012

9010506184

main90105-06184

9011906417

main90119-06417

9015980022

main90159-80022

9017910161

main90179-10161

91511B0614

main91511-B0614

9155110816

main91551-10816

17 parts on this diagram · 1 diagram in section
