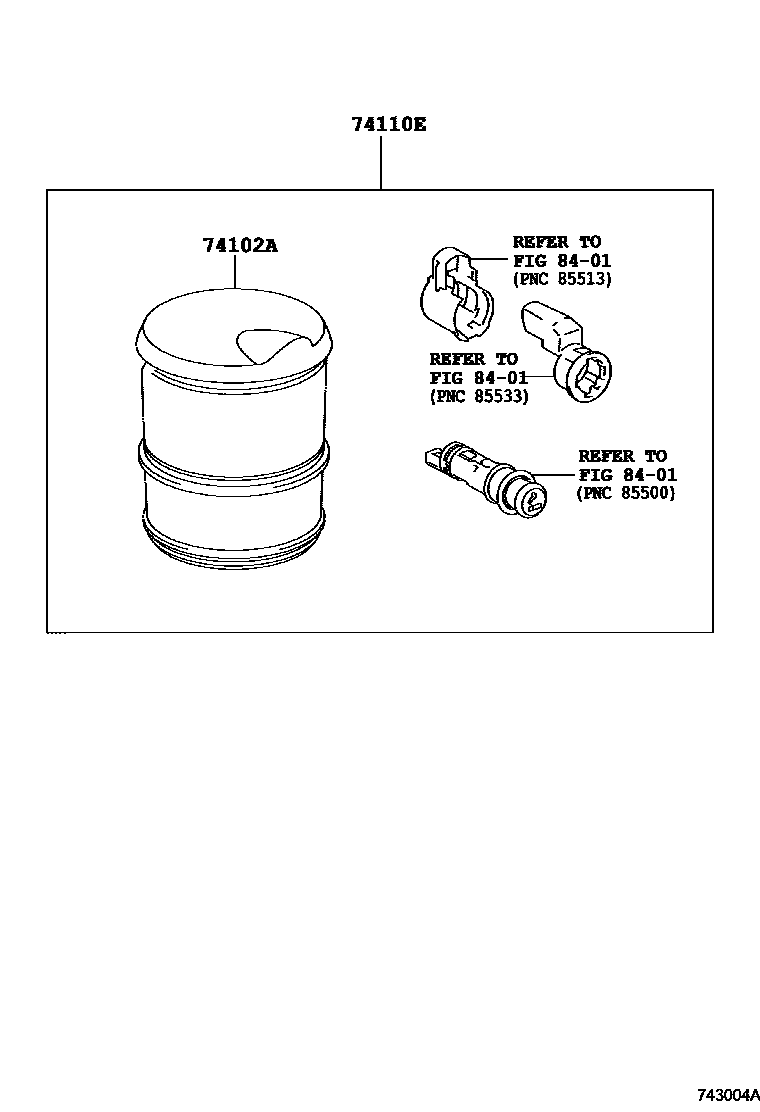

Toyota VITZ — ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74130-42010i201012-201404

74110ERECEPTACLE ASSY, FRONT ASH

main74110-52070i201404-201701

main74110-52080i201012-201404

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

3 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota VITZ

This section contains 3 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota VITZ. Key components include: RECEPTACLE ASSY, FRONT ASH, SWITCH & RELAY & COMPUTER.
