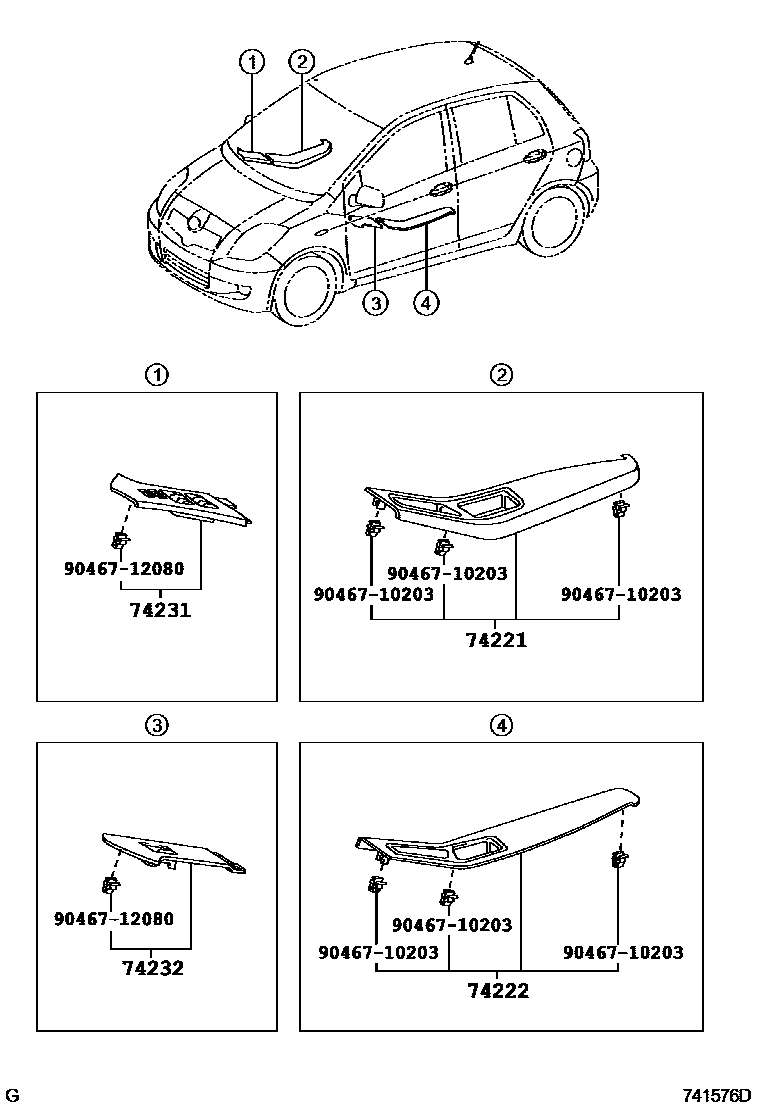

Toyota VITZ — ARMREST & VISOR

0001 1������ 0002 1����� & ���� ������

74221COVER, DOOR ARMREST, RH

main74221-52010-B0iKSP90,NCP9#,SCP90..B,F,U200808-201012

GRAY,TRIM1#

main74221-52010-B1iNCP91,SCP90..RS200809-201012

DK.GRAY,TRIM1#

main74221-52010-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

GREGE,TRIM4#

74222COVER, DOOR ARMREST, LH

main74222-52010-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

GRAY,TRIM1#

main74222-52010-B1iNCP91,SCP90..RS200708-200809

DK.GRAY,TRIM1#

main74222-52010-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200808-201012

GREGE,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52290-B0iKSP90,NCP9#,SCP90..B,F,U200708-200808

GRAY,TRIM1#

main74231-52290-B1iNCP91..RS200501-200708

DK.GRAY,TRIM1#

main74231-52290-E0iKSP90,NCP9#,SCP90..B,F,ILL,U,X200508-200708

GREGE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52220-B0iKSP90,NCP9#,SCP90..B,F,U200808-201012

GRAY,TRIM1#

main74232-52220-B1iNCP91,SCP90..RS200809-201012

DK.GRAY,TRIM1#

main74232-52220-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200808-201012

GREGE,TRIM4#

9046710203

main90467-10203

9046712080

main90467-12080

6 parts on this diagram · 2 diagrams in section
