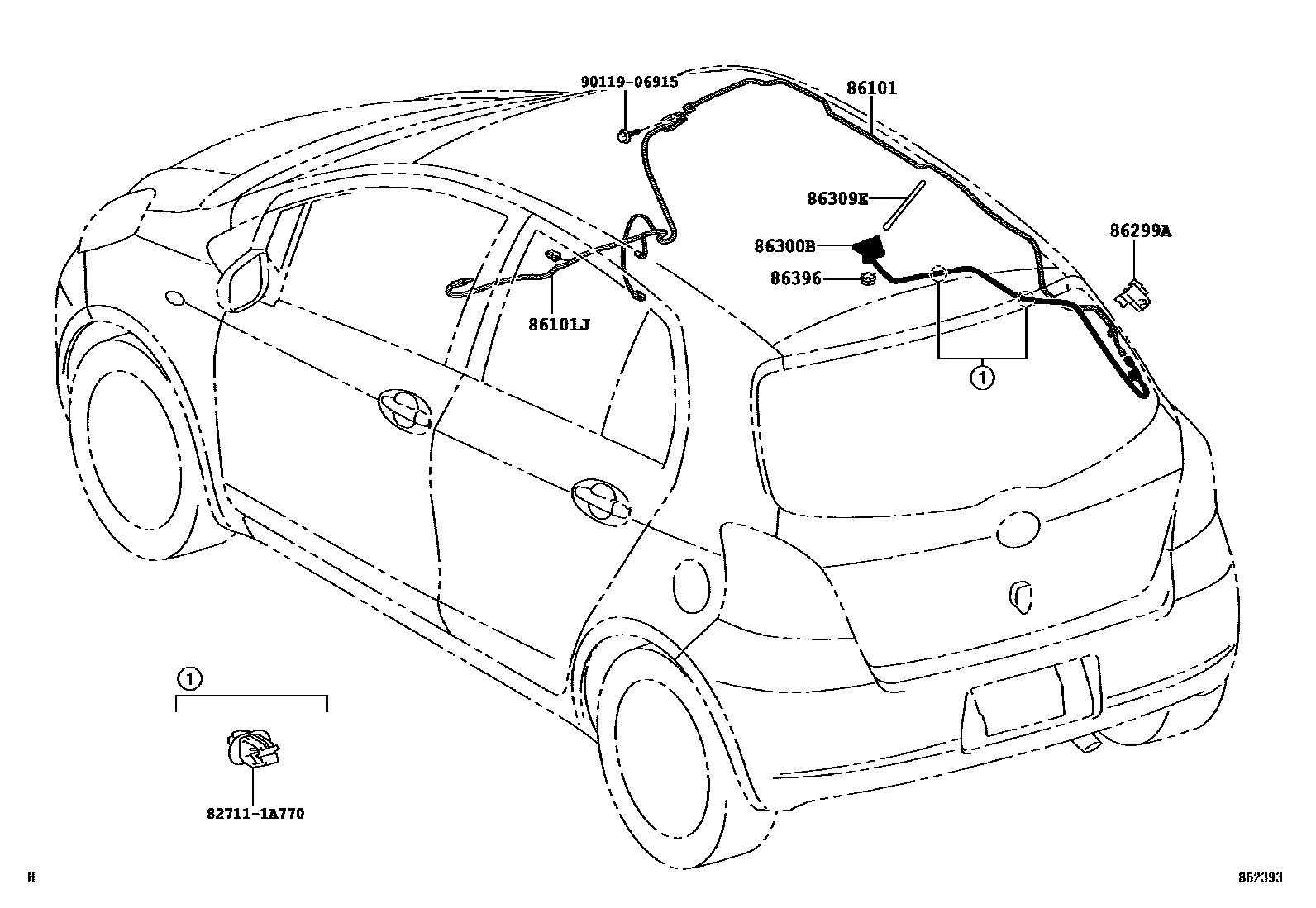

Toyota VITZ — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-52340iKSP90,NCP9#,SCP90200808-201012

main86101-52390iNCP95,SCP90..U200501-200512

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-52420iNCP95,SCP90..U200501-200512

main86101-52430iNCP95,SCP90..U200501-200512

main86101-52440supersedes 86101-52400iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

86299ACLIP, RADIO TO ANTENNA WIRE

main86299-52010iKSP90,NCP9#,SCP90200501-200708

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52280iNCP91,SCP90..RS200708-200809

main86300-52310iNCP95,SCP90..U200501-200512

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-52030iKSP90,NCP9#,SCP90200501-200708

main86309-52070iNCP95,SCP90..U200501-200512

86396NUT, ANTENNA

main86396-20040iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906915

main90119-06915

8 parts on this diagram · 1 diagram in section
