Toyota VITZ — ALTERNATOR

0001 112V 80A 0002 112V 100A 0003 112V 80A 0004 112V 100A 0005 112V 80A 0006 112V 80A,100A 0007 112V 80A,100A 0008 112V 80A 0009 112V 80A

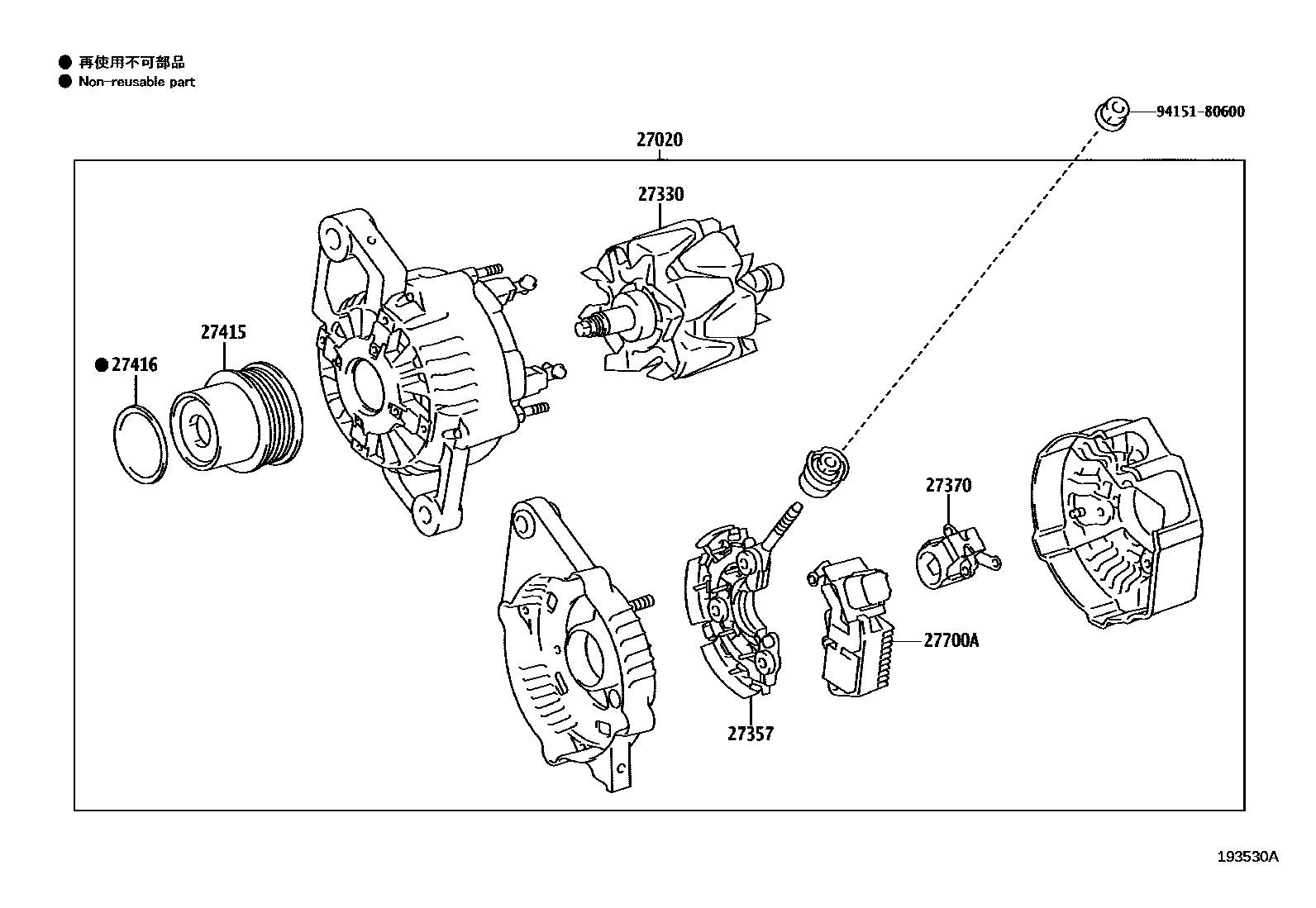

27020ALTERNATOR ASSY

main27060-21131i1NZFE..NCP131201012-201404

main27060-21180i1NZFE..NCP131..CVT201404-201701

sub27060-21181

main27060-21200i1NZFE..NCP131..5F201709

sub27060-21201

main27060-47270i1NRFKE..NSP130201404-201701

main27060-40080supersedes 27060-40130i1KRFE..KSP130..CBU201012-201404

main27060-40140supersedes 27060-40130i1KRFE..KSP130..CBU201404-201701

main27060-47110supersedes 27060-47100i1NRFE..NSP13#..CBU201012-201404

main27060-47140i1NRFE..NSP130..(JEWL,U)..CBU201106-201404

sub27060-47250

main27060-47150i1NRFE..NSP130..(JEWL,U)..CBU201106-201404

main27060-47200supersedes 27060-47210i1NRFE..NSP135..CBU201404-201701

27330ROTOR ASSY, ALTERNATOR

main27330-30130i1KRFE,1N#..KSP130,NCP131,NSP13#..CBU201012-201404

main27330-47310i1KRFE,1NZFE,1NRFE..KSP130,NCP131,NSP135..CBU201404-201701

main27330-47330i1KRFE..KSP130..CBU201404-201701

main27330-23130i1NRFE..NSP130..(JEWL,U)..CBU201106-201404

main27330-30070i1KRFE,1NRFE..KSP130,NSP13#..CBU201012-201404

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i1KRFE,1N#..KSP130,NCP131,NSP13#..CBU201012-201404

main27357-47170i1NRFE..NSP130..F..CBU201012-201404

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i1KRFE,1N#..KSP130,NCP131,NSP13#..CBU201012-201404

main27370-31220i1KRFE,1NZFE,1NR#..KSP130,NCP131,NSP13#..CBU201404-201701

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0M011i1NZFE..NCP131..CVT201709

main27415-0Y061supersedes 27415-0Y051i1NRFE..NSP135..CBU201701

main27415-0W031supersedes 27415-0W210i1KRFE..KSP130..CBU201012-201312

main27415-0W220supersedes 27415-0W210i1KRFE..KSP130..CBU201701

main27415-0Y060supersedes 27415-0Y051i1NRFE..NSP13#..CBU201012-201306

27416CAP, ALTERNATOR PULLEY

main27416-0W020i1KRFE..KSP130..CBU201404-201701

main27416-0W050i1NZFE,1NR#..NCP131,NSP13#..CVT..CBU201701

27700AREGULATOR ASSY, GENERATOR

main27700-28080i1KRFE,1N#..KSP130,NCP131,NSP13#..CBU201012-201404

main27700-33030i1NRFE..NSP130..F..CBU201012-201404

9415180600

main94151-80600

8 parts on this diagram · 9 diagrams in section
