Toyota VITZ — ACCELERATOR LINK

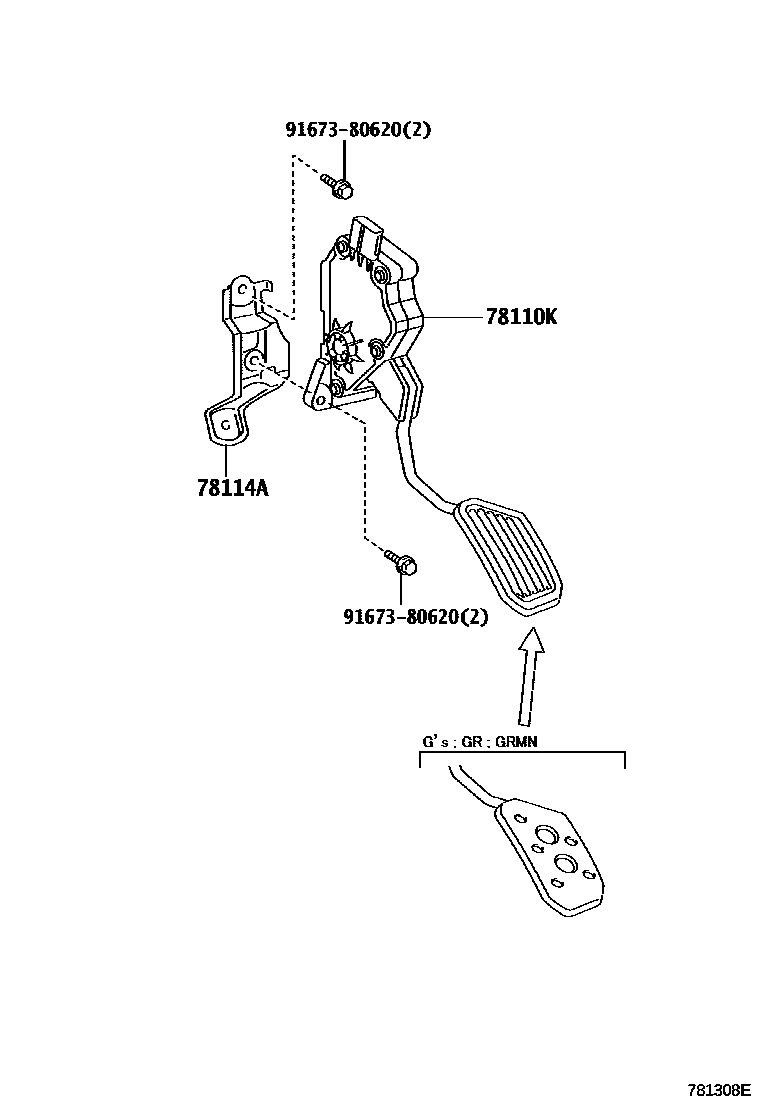

Parts diagram

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-52033i201012-201212

main78110-52100i201301-201404

main78110-52110i201404-201601

main78110-52220i201602-201701

main78110-52180i201404-201601

main78110-52290i201602-201701

main78110-52291i201709-202001

main78110-WY020i201110-201404

main78110-WY080i201602-201701

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-52020i201012-201404

9167380620

main91673-80620

3 parts on this diagram · 1 diagram in section
