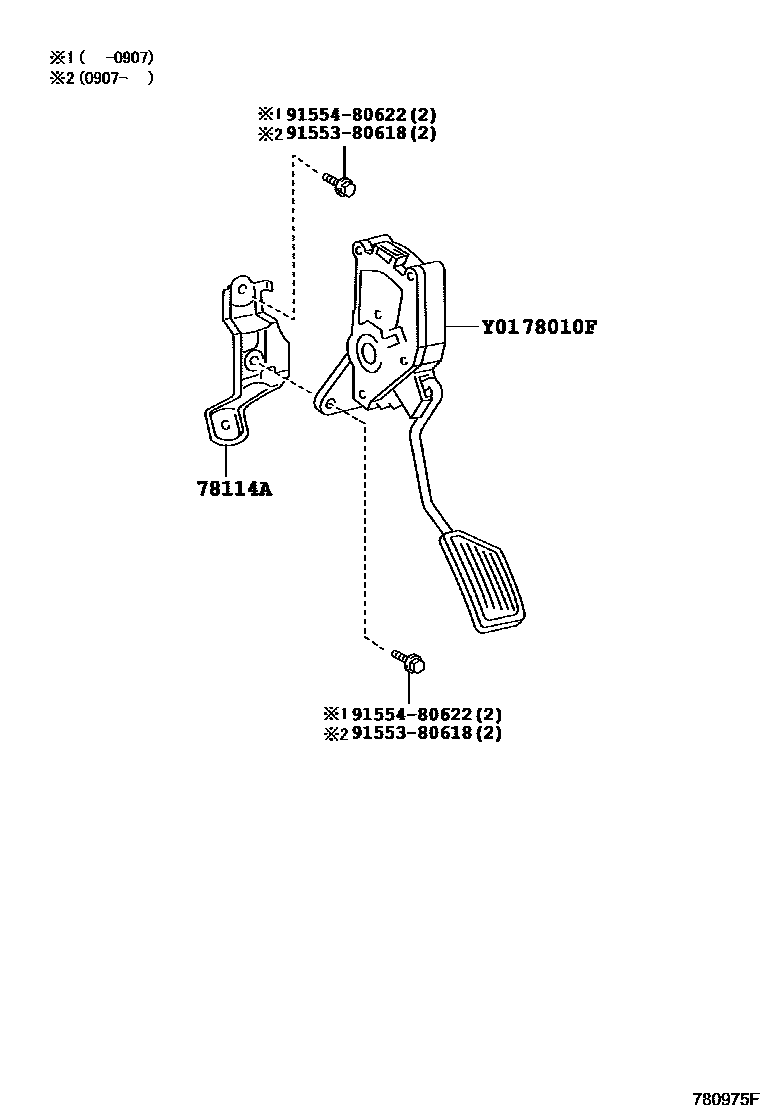

Toyota VITZ — ACCELERATOR LINK

78010FPEDAL ASSY, ACCELERATOR

main78110-52010iKSP90,NCP9#,SCP90200501-200708

sub78110-52011

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-52020iKSP90,NCP9#,SCP90200501-200708

9155380618

main91553-80618

9155480622

main91554-80622

4 parts on this diagram · 1 diagram in section
