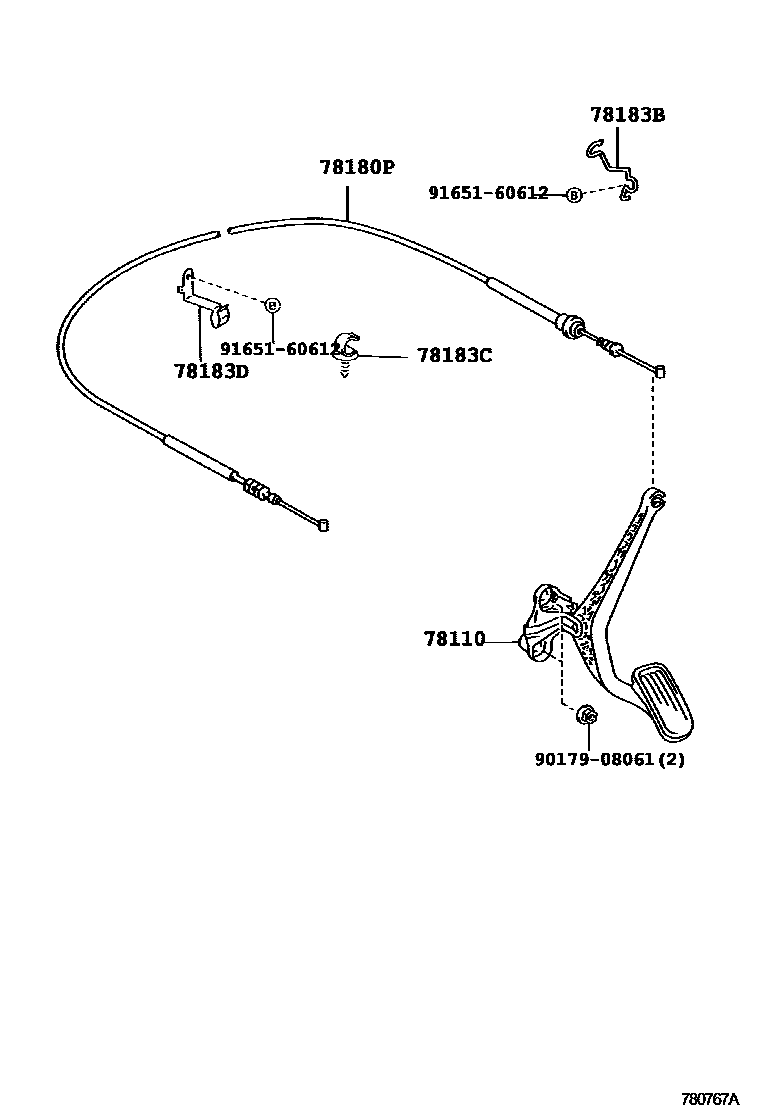

Toyota VITZ — ACCELERATOR LINK

0001 1 0002 1 0003 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-52050iSCP10199901-199908

main78120-52110iNCP1#,SCP10200403

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-52030iNCP1#199908-200112

main78180-52060iSCP10199901-200112

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-52020iSCP10200112-200212

main78183-52080iNCP1#200112-200212

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-52070iNCP1#199908-200112

78183DCLAMP, ACCELERATOR CONTROL CABLE

main78183-52030iNCP1#199908-200109

main78183-52120iNCP1#200109-200112

9017908061

main90179-08061

9165160612

main91651-60612

7 parts on this diagram · 3 diagrams in section
