Toyota VITZ — ABS & VSC

0001 1 0002 1 0003 1 0004 1

4102

4708

8401

89441ASENSOR, DECELERATION

main89440-52090iKSP130,NCP131,NSP130..CVT..CBU201012-201404

main89441-12060iNSP135..CBU201012-201404

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-52130iKSP130,NCP131,NSP130..CBU201012-201404

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-52140iKSP130,NCP131,NSP130..CBU201012-201404

89542SENSOR, SPEED, FRONT RH

main89542-52090iKSP130,NCP131,NSP13#..CBU201012-201404

main89542-52130iKSP130,NCP131,NHP130,NSP13#..CBU201701-202001

89543SENSOR, SPEED, FRONT LH

main89543-52090iKSP130,NCP131,NSP13#..CBU201012-201404

main89543-52130iKSP130,NCP131,NHP130,NSP13#..CBU201701-202001

9010508120

main90105-08120

9017906178

main90179-06178

9167180816

main91671-80816

91671A0616

main91671-A0616

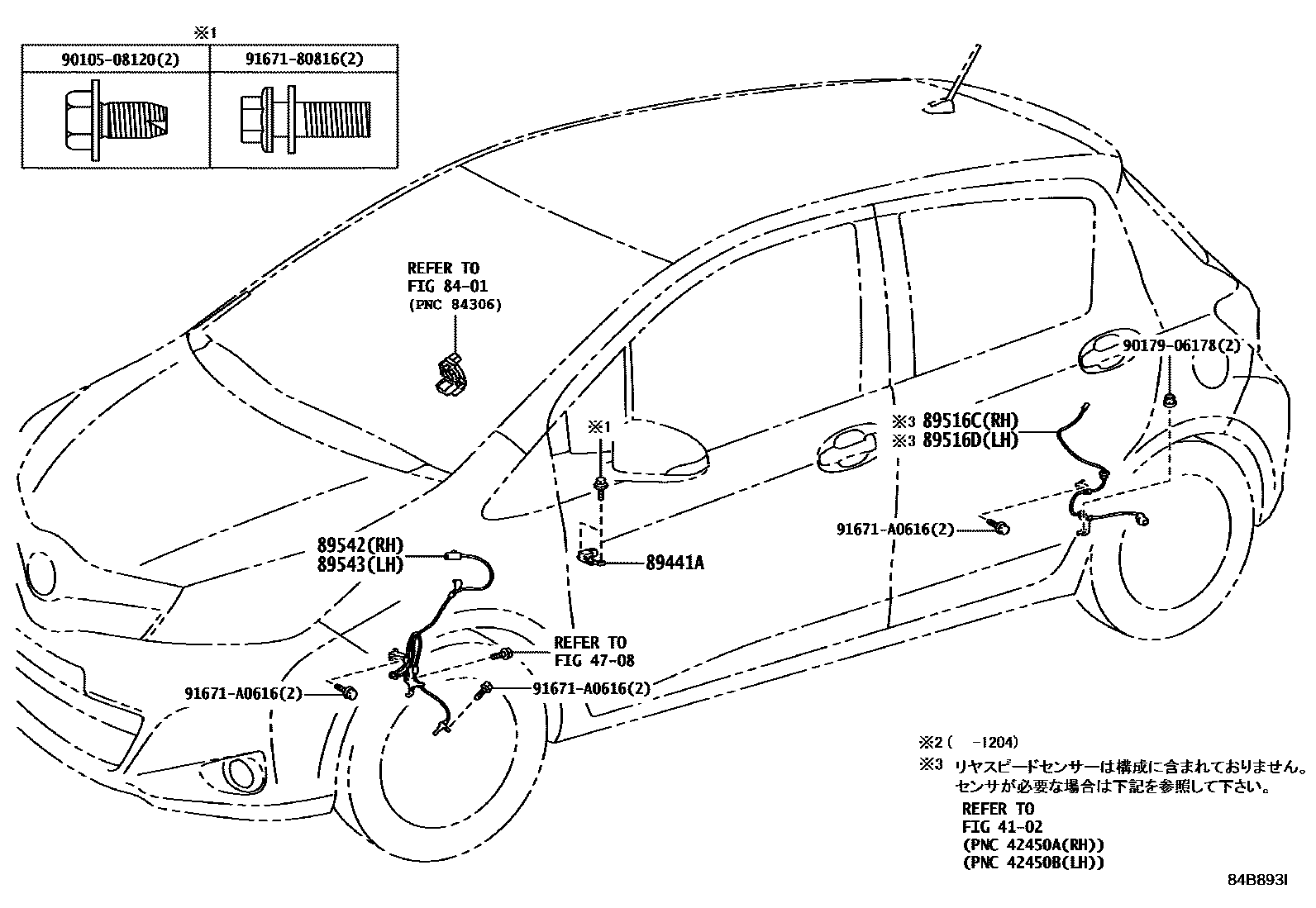

12 parts on this diagram · 4 diagrams in section
