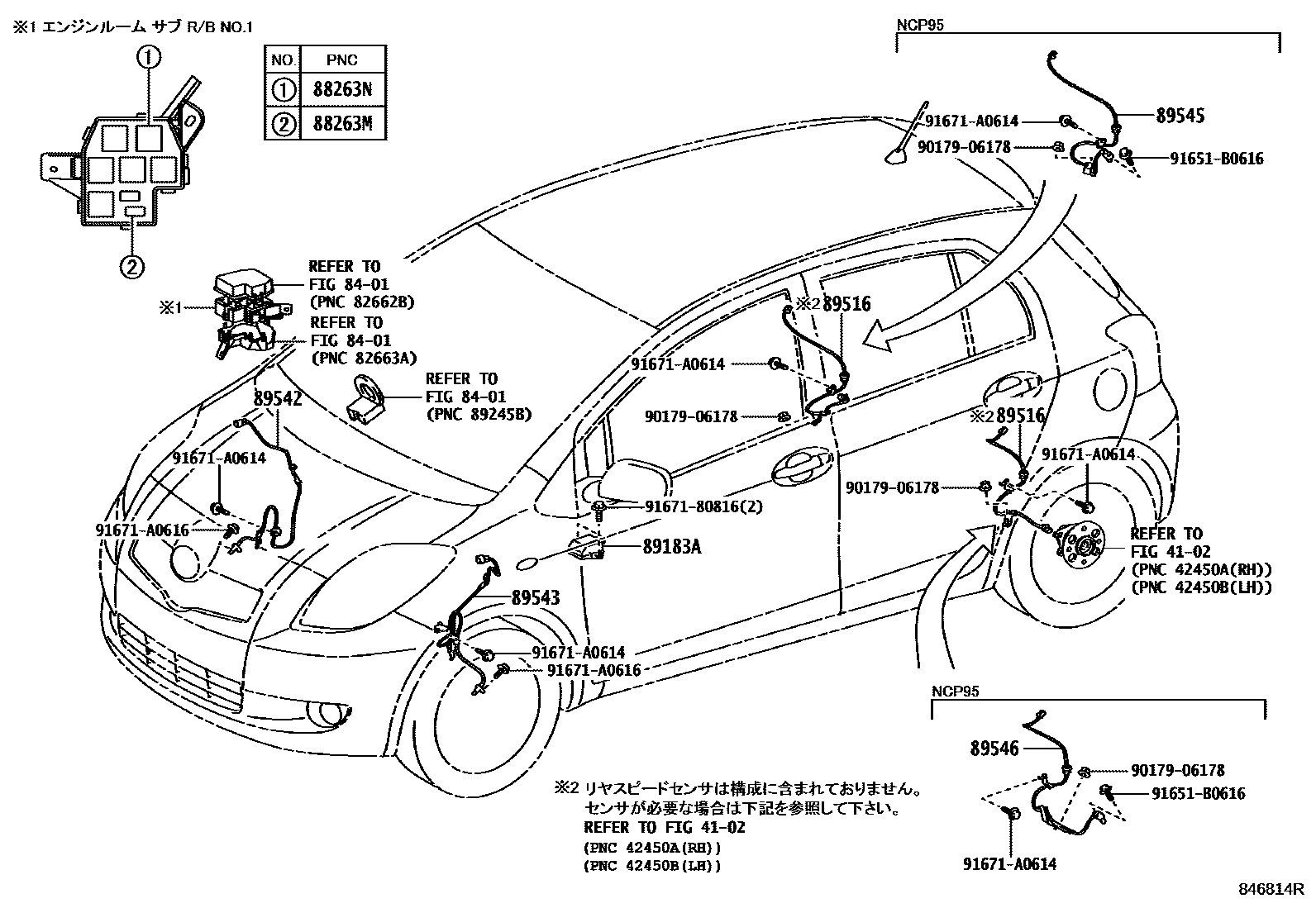

Toyota VITZ — ABS & VSC

4102

8401

88263MRELAY, ABS SOLENOID

main88263-32070iKSP90..B,F200708-200808

88263NRELAY, ABS MOTOR

main88263-21010iNCP91..RS200809-201012

89183ASENSOR, YAWRATE

main89183-60020iNCP91..RS200501-200708

89516WIRE, SKID CONTROL SENSOR

main89516-52090iKSP90,NCP91,SCP90200501-200708

main89516-52100iKSP90,NCP91,SCP90..B,F,ILL,U200708-200808

main89516-52110iKSP90,NCP91,SCP90200905-201012

main89516-52120iKSP90,NCP91,SCP90200905-201012

89542SENSOR, SPEED, FRONT RH

main89542-52030iKSP90,NCP9#,SCP90200501-200708

main89542-52060iKSP90,NCP9#,SCP90200901-201012

sub89542-52120

89543SENSOR, SPEED, FRONT LH

main89543-52030iKSP90,NCP9#,SCP90200501-200708

main89543-52060iKSP90,NCP9#,SCP90200901-201012

sub89543-52120

89545SENSOR, SPEED, REAR RH

main89545-52040iNCP95200501-200708

89546SENSOR, SPEED, REAR LH

main89546-52040iNCP95200501-200708

9017906178

main90179-06178

91651B0616

main91651-B0616

9167180816

main91671-80816

91671A0614

main91671-A0614

91671A0616

main91671-A0616

15 parts on this diagram · 1 diagram in section
