Toyota VITZ — MIRROR

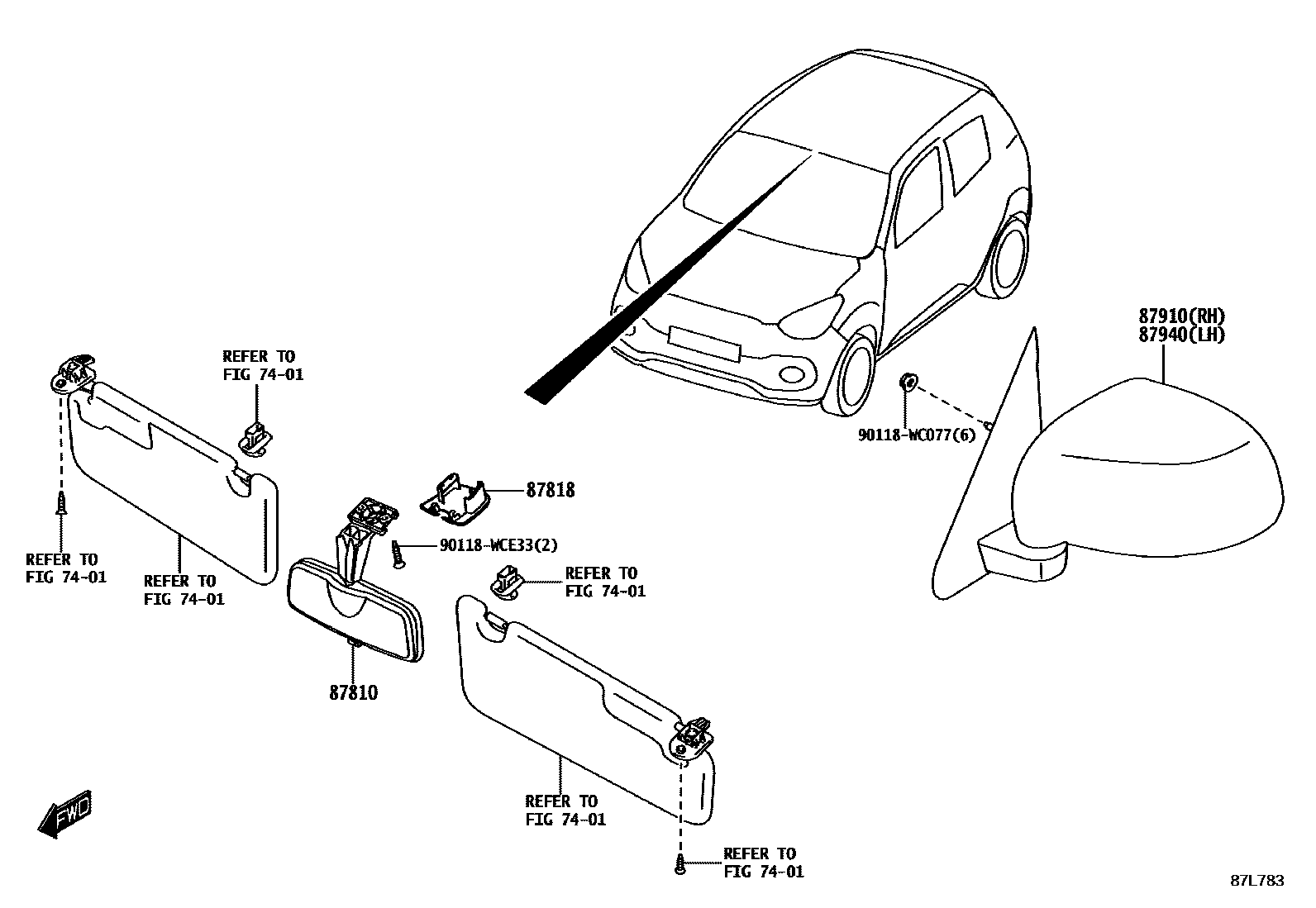

Parts diagram

7401

87810MIRROR ASSY, INNER REAR VIEW

main87810-WC006i202301

POS.46

main87810-WC007i202301

POS.17

87818COVER, INNER RR VIEW MIRROR

main87818-WC007i202301-202310

POS.34

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-WC232i202301

POS.46

main87910-WC233i202301

POS.49,TRIM06&WAJ

main87910-WC234i202301

POS.62,TRIM02&Z2S

main87910-WC235i202301

POS.8,TRIM04&Z4Q

main87910-WC236i202301

POS.8,TRIM07&ZAM

main87910-WC237i202301

POS.50,TRIM01&ZHJ

main87910-WC238i202301

POS.52,TRIM03&ZNZ

main87910-WC239i202301

POS.6,TRIM05&ZTL

main87910-WC240i202301

POS.66,TRIM06&WAJ

main87910-WC241i202301

POS.18,TRIM02&Z2S

main87910-WC242i202301

POS.20,TRIM04&Z4Q

main87910-WC243i202301

POS.28,TRIM07&ZAM

main87910-WC244i202301

POS.15,TRIM01&ZHJ

main87910-WC245i202301

POS.45,TRIM03&ZNZ

main87910-WC246i202301

POS.13,TRIM05&ZTL

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-WC232i202301

POS.46

main87940-WC233i202301

POS.49,TRIM06&WAJ

main87940-WC234i202301

POS.62,TRIM02&Z2S

main87940-WC235i202301

POS.8,TRIM04&Z4Q

main87940-WC236i202301

POS.8,TRIM07&ZAM

main87940-WC237i202301

POS.50,TRIM01&ZHJ

main87940-WC238i202301

POS.52,TRIM03&ZNZ

main87940-WC239i202301

POS.6,TRIM05&ZTL

main87940-WC240i202301

POS.66,TRIM06&WAJ

main87940-WC241i202301

POS.18,TRIM02&Z2S

main87940-WC242i202301

POS.20,TRIM04&Z4Q

main87940-WC243i202301

POS.28,TRIM07&ZAM

main87940-WC244i202301

POS.15,TRIM01&ZHJ

main87940-WC245i202301

POS.45,TRIM03&ZNZ

main87940-WC246i202301

POS.13,TRIM05&ZTL

90118WC077

main90118-WC077

90118WCE33

main90118-WCE33

7 parts on this diagram · 3 diagrams in section
