Toyota VITZ — HEADLAMP

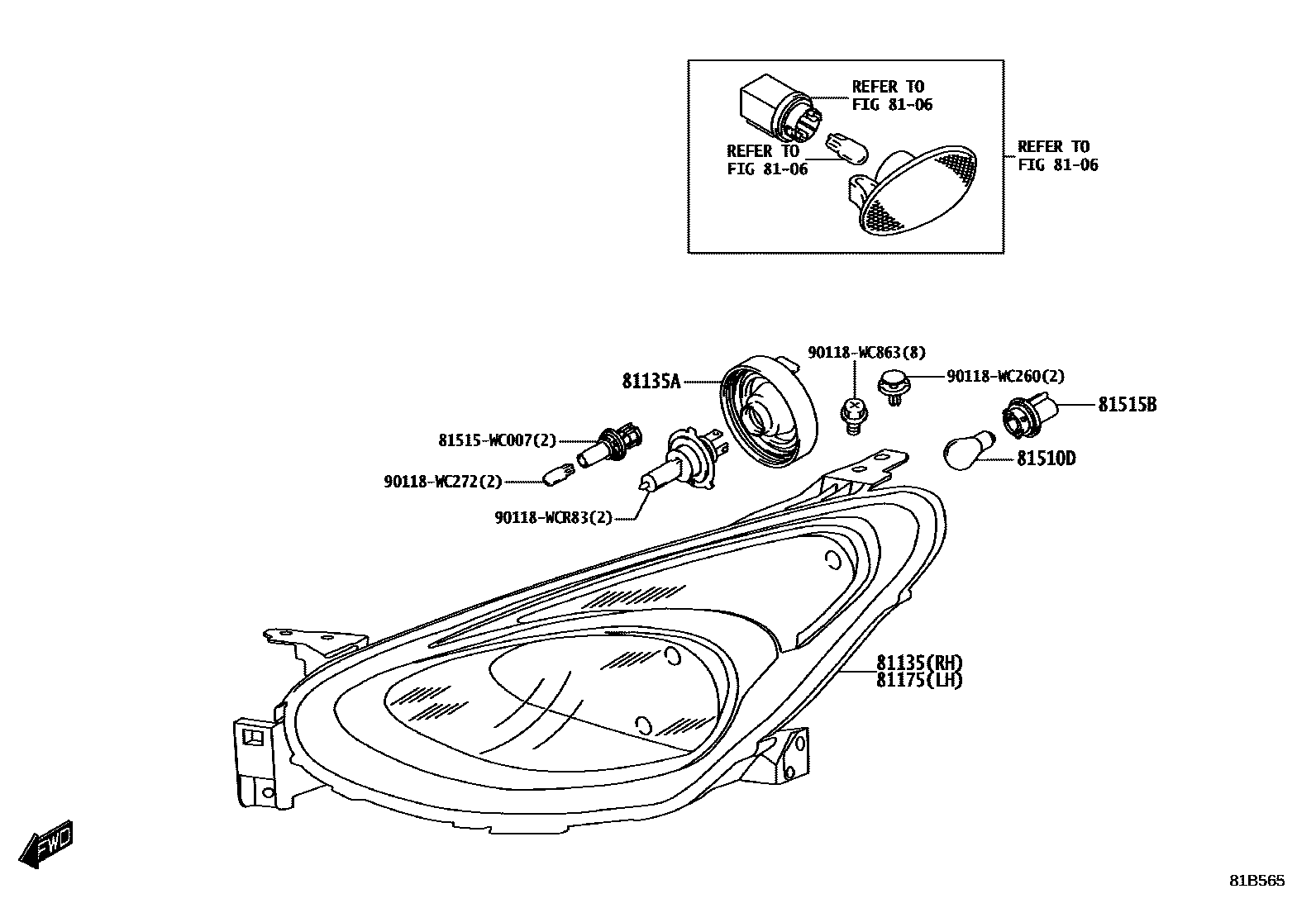

Parts diagram

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

81135UNIT ASSY, HEADLAMP, RH

main81135-WC004

main81130-WC020

main81130-WC021

81135ACAP, LOCKING

81175UNIT ASSY, HEADLAMP, LH

main81170-WC020

main81170-WC021

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

81515BSOCKET, FRONT TURN SIGNAL LAMP

81515WC007WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-WC007

90118WC260

main90118-WC260

90118WC272

main90118-WC272

90118WC863

main90118-WC863

90118WCR83

main90118-WCR83

11 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota VITZ

This section contains 11 genuine Toyota parts for the HEADLAMP system of the Toyota VITZ. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, UNIT ASSY, HEADLAMP, RH, CAP, LOCKING, UNIT ASSY, HEADLAMP, LH, BULB (FOR FRONT TURN SIGNAL LAMP).
