Toyota VITZ — FRONT AXLE ARM & STEERING KNUCKLE

4303FRONT AXLE HUB

→ Go to FIG 43-03

43211KNUCKLE, STEERING, RH

main43211-WC011i202301-202310

POS.34

main43211-WC013i202409

POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67

43211KBOLT (FOR STEERING KNUCKLE RH)

main90118-WCG05×2i202301-202310

POS.34

43211LNUT (FOR STEERING KNUCKLE RH)

main90118-WC488×2i202301-202310

POS.34

43212KNUCKLE, STEERING, LH

main43212-WC011i202301-202310

POS.34

main43212-WC013i202409

POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67

43212DBOLT (FOR STEERING KNUCKLE LH)

main90118-WCG05×2i202301-202310

POS.34

43212ENUT (FOR STEERING KNUCKLE LH)

main90118-WC488×2i202301-202310

POS.34

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90118-WC167i202301-202310

POS.34

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90118-WC167i202301-202310

POS.34

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-WC011i202301-202310

POS.34

main48068-WC015i202409

POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90118-WCS25i202301-202310

POS.34

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-WC011i202301-202310

POS.34

main48069-WC015i202409

POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90118-WCS25i202301-202310

POS.34

90118WC230

main90118-WC230

15 parts on this diagram · 1 diagram in section

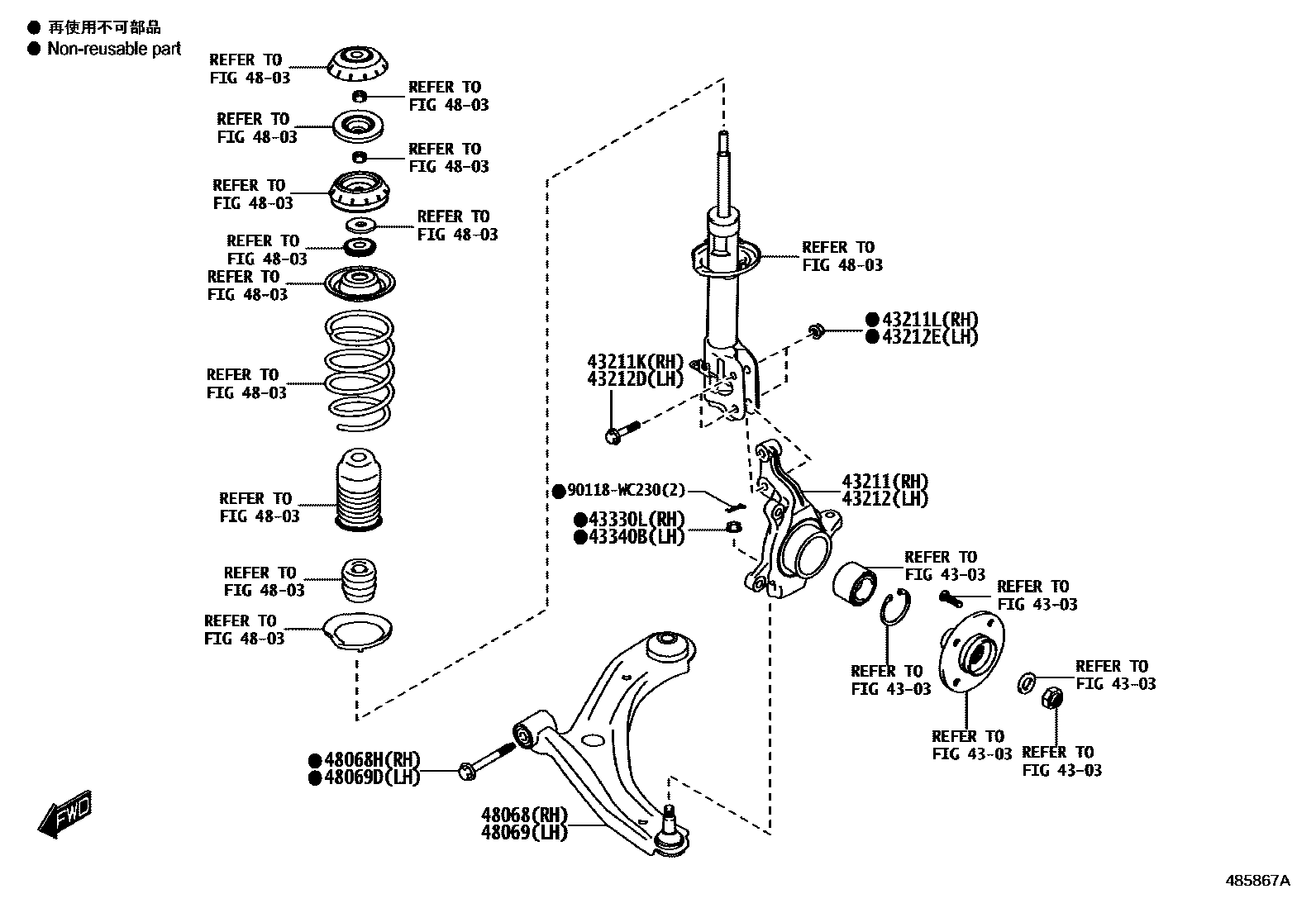

FRONT AXLE ARM & STEERING KNUCKLE for Toyota VITZ

This section contains 15 genuine Toyota parts for the FRONT AXLE ARM & STEERING KNUCKLE system of the Toyota VITZ. Key components include: FRONT AXLE HUB, KNUCKLE, STEERING, RH, BOLT (FOR STEERING KNUCKLE RH), NUT (FOR STEERING KNUCKLE RH), KNUCKLE, STEERING, LH.
