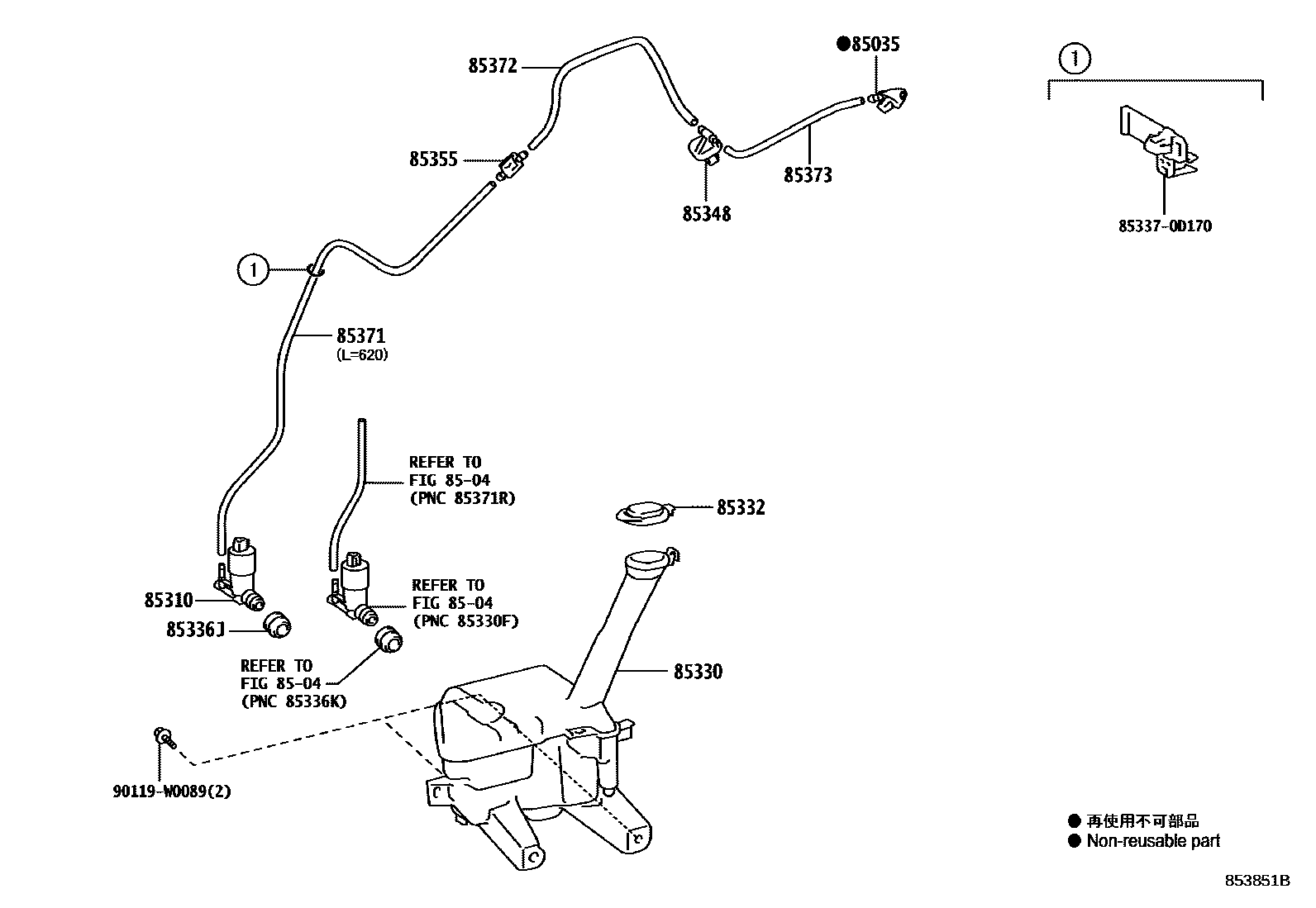

Toyota VITZ GRMN — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52490iNSP131201711

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D121iNSP131201711

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D170iNSP131201711

85332CAP, WINDSHIELD WASHER JAR

main85316-0D170iNSP131201711

85336JPROTECTOR, WASHER JAR

main85336-0D170iNSP131201711

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-52190iNSP131201711

85355VALVE, WINDSHIELD WASHER HOSE

main85321-26020iNSP131201711

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46057iNSP131201711

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNSP131201711

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iNSP131201711

853370D170CASE, LEVEL WARNING SWITCH

main85337-0D170

90119W0089

main90119-W0089

13 parts on this diagram · 1 diagram in section
