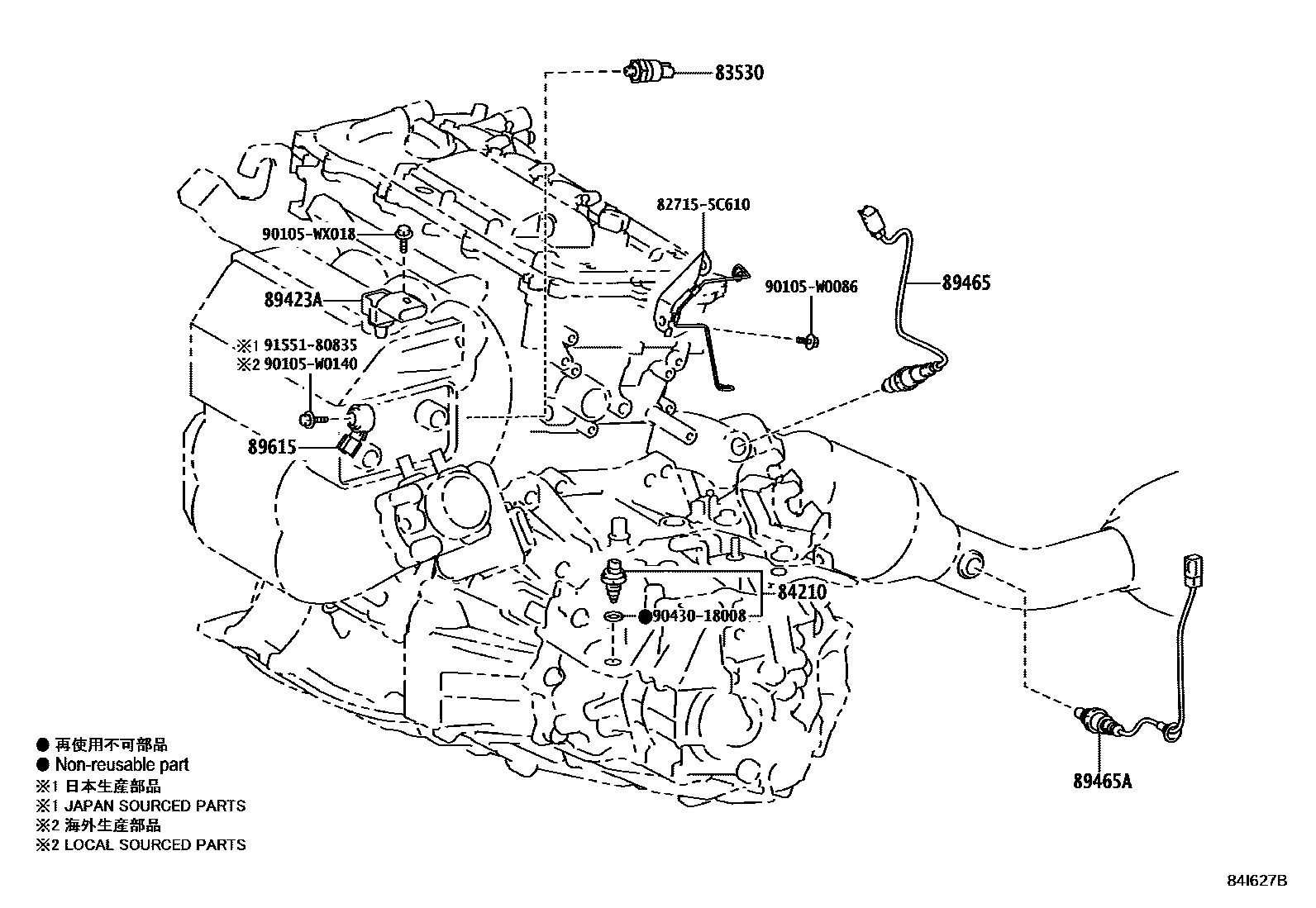

Toyota VITZ GRMN — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� 0003 1�������� ������K�� 0004 1��� 0005 1������������ 0006 1������� 0007 1���,���,��� & �������

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iNSP131201711-201804

main83530-28020iNSP131201711-201804

main83530-60020iNSP131201711-201804

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iNSP131201711

89423ASENSOR, MANIFOLD TEMPERATURE

main89423-YV010iNSP131201711

89465SENSOR, OXYGEN

main89465-02060iNSP131201711

89465ASENSOR, OXYGEN NO.2

main89465-52880iNSP131201711

89615SENSOR, KNOCK CONTROL

main89615-02020iNSP131201711

827155C610BRACKET,WIRING HARNESS CLAMP

main82715-5C610

90105W0086

main90105-W0086

90105W0140

main90105-W0140

90105WX018

main90105-WX018

9043018008

main90430-18008

9155180835

main91551-80835

12 parts on this diagram · 7 diagrams in section
