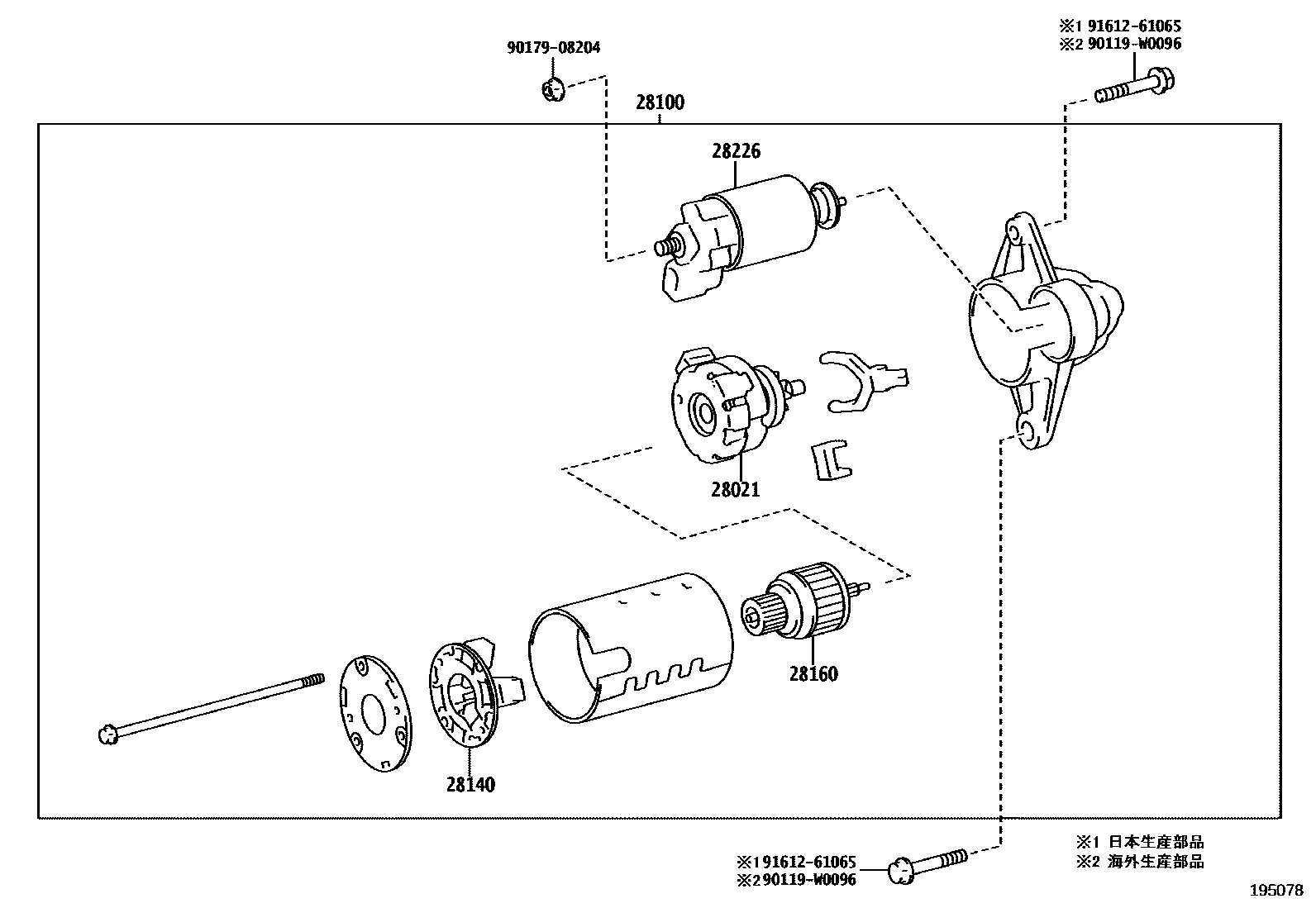

Toyota VITZ GRMN — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-47170i2ZRFE..NSP131201711

28100STARTER ASSY

main28100-37130i2ZRFE..NSP131201711

28140HOLDER ASSY, STARTER BRUSH

main28140-21070i2ZRFE..NSP131201711

28160ARMATURE ASSY, STARTER

main28160-21080i2ZRFE..NSP131201711

28226STARTER KIT, BATTERY TERMINAL

main28226-37130i2ZRFE..NSP131201711

90119W0096

main90119-W0096

9017908204

main90179-08204

9161261065

main91612-61065

8 parts on this diagram · 1 diagram in section
