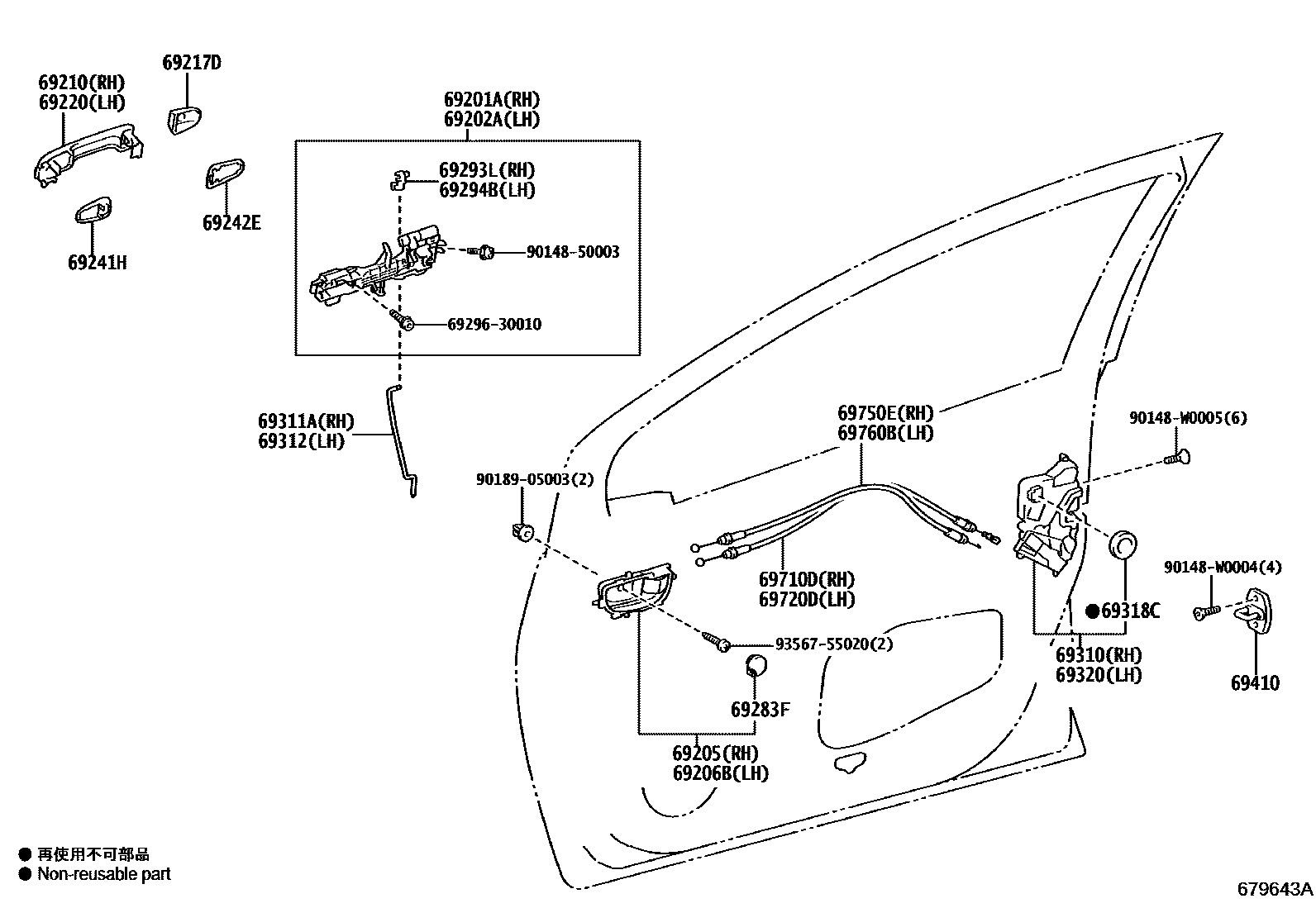

Toyota VITZ GRMN — FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
EU BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
EU BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040 ,2NR
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040 ,2NR
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283FPLUG, FRONT DOOR INSIDE HANDLE BEZEL
EU BLACK,TRIM2#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
90148W0004
main90148-W0004
90148W0005
main90148-W0005
9018905003
main90189-05003
9356755020
main93567-55020
28 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota VITZ GRMN
This section contains 28 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota VITZ GRMN. Key components include: FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH.
