Toyota VITZ GRMN — FRONT AXLE HUB

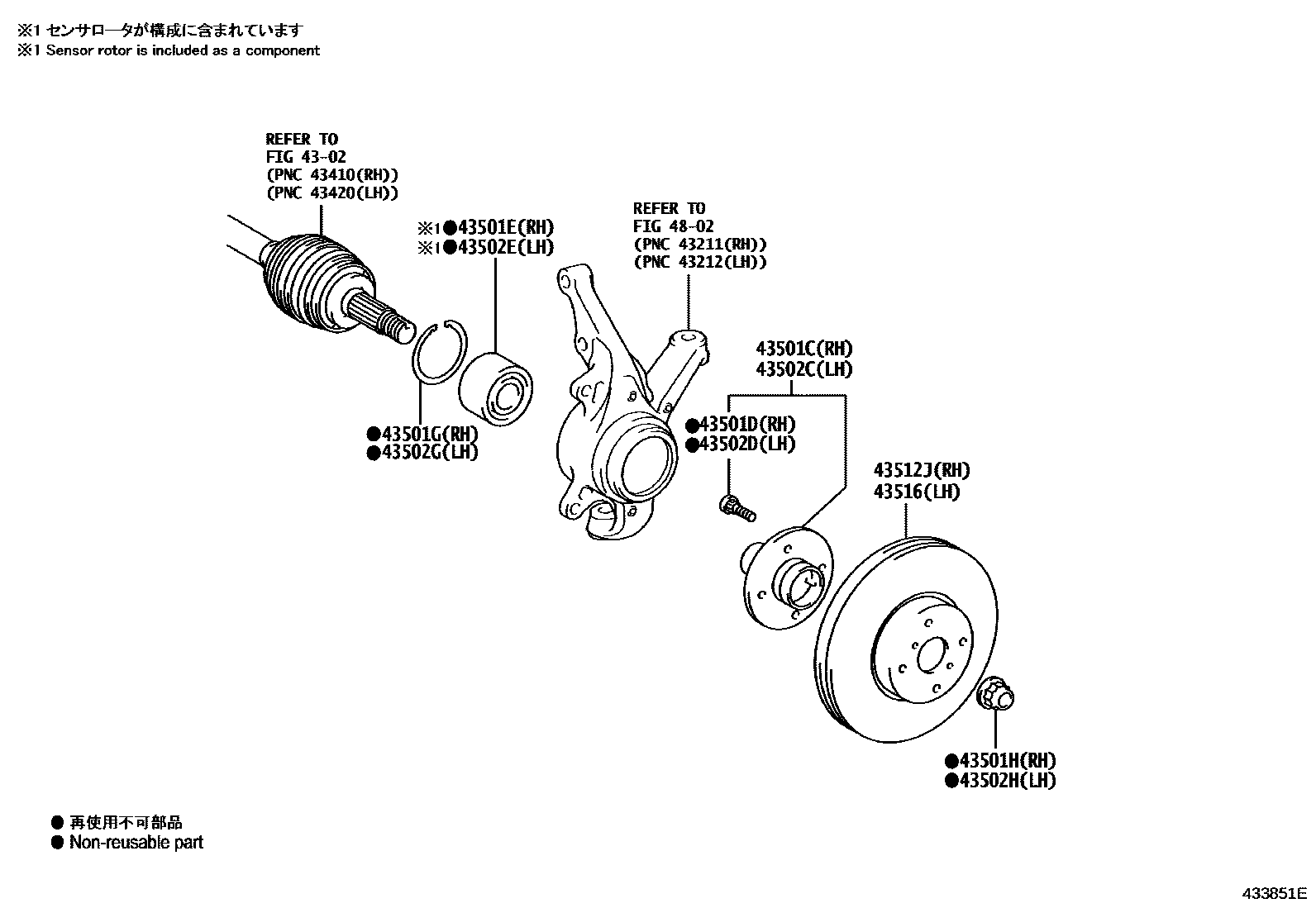

Parts diagram

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0D101i201711

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4i201711

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-W0002i201711

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003i201711

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i201711

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0D101i201711

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4i201711

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-W0002i201711

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003i201711

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i201711

43512JDISC, FRONT RH

main43512-52140i201711

43516DISC, FRONT LH

main43516-52010i201711

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

14 parts on this diagram · 1 diagram in section
