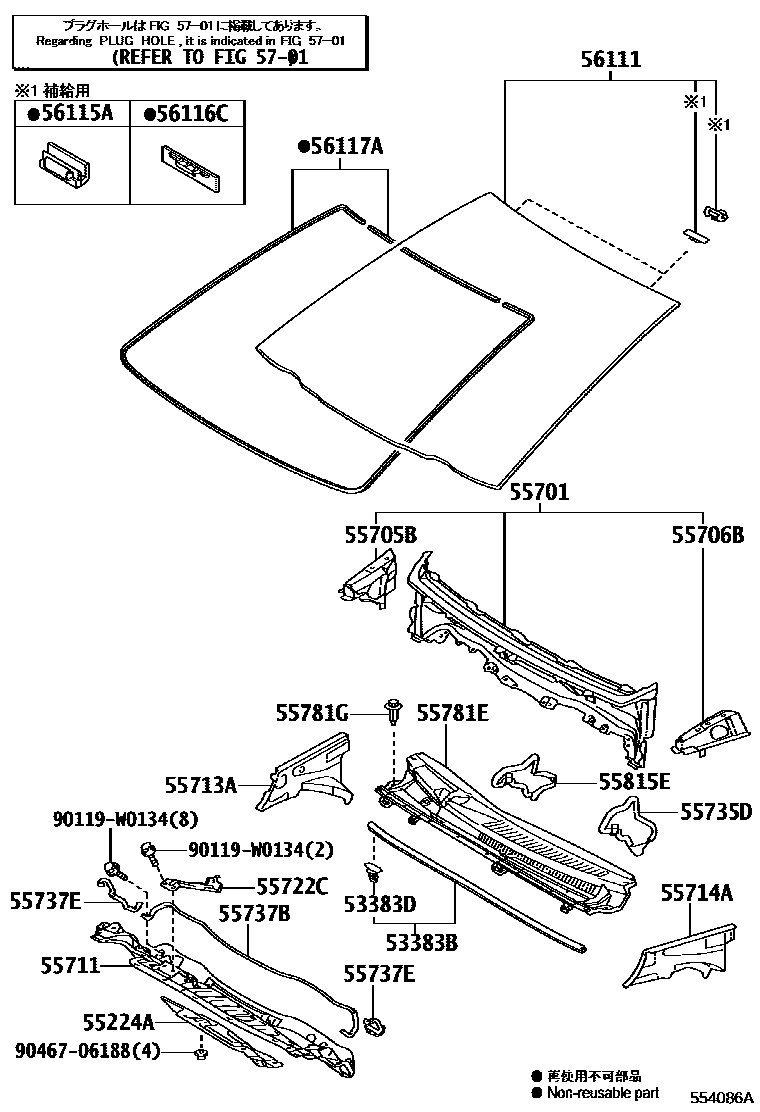

Toyota VITZ GRMN — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0D120i201711

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×6i201711

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-0D011i201711

55701PANEL SUB-ASSY, COWL

main55700-0D180i201711

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0D090i201711

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0D100i201711

55711PANEL, COWL TOP, OUTER

main55701-0D110i201711

55713APANEL, COWL TOP SIDE, RH

main55713-0D090i201711

55714APANEL, COWL TOP SIDE, LH

main55714-0D090i201711

55722CBRACE, COWL TOP TO COWL, INNER

main55722-0D090i201711

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-0D040i201711

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D010i201711

55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-0D030×2i201711

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0D360i201711

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C7×2i201711

BLACK

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-0D020i201711

56111GLASS, WINDSHIELD

main56101-0D251i201711

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2i201711

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i201711

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50130i201711

5701HOLE PLUG

→ Go to FIG 57-01

90119W0134

main90119-W0134

9046706188

main90467-06188

23 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota VITZ GRMN

This section contains 23 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota VITZ GRMN. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), INSULATOR, DASH PANEL, OUTER NO.2, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH.
