Toyota VITZ GRMN — ABS & VSC

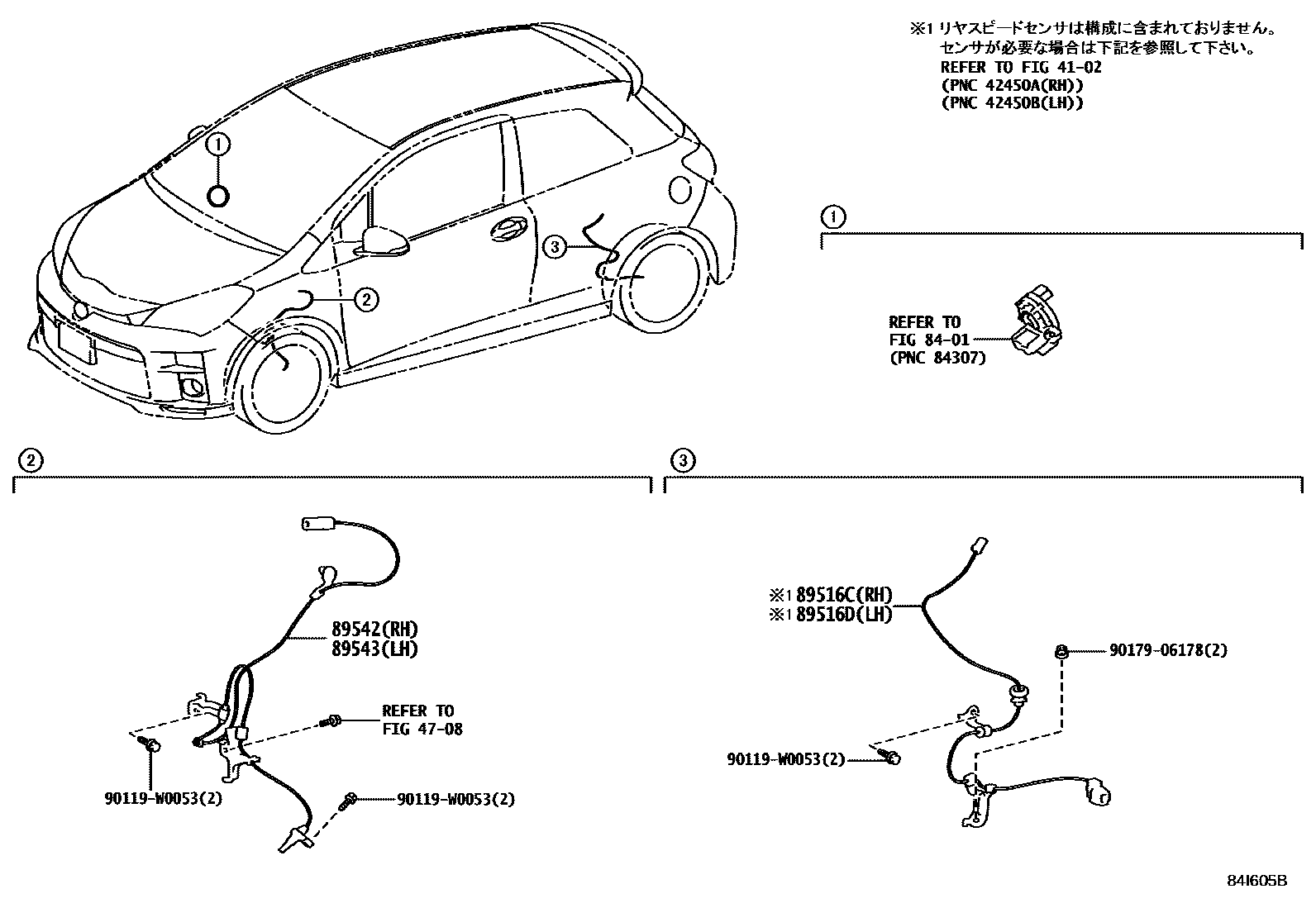

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-0D130i201711

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-0D140i201711

89542SENSOR, SPEED, FRONT RH

main89542-0D050i201711

89543SENSOR, SPEED, FRONT LH

main89543-0D050i201711

90119W0053

main90119-W0053

9017906178

main90179-06178

9 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota VITZ GRMN

This section contains 9 genuine Toyota parts for the ABS & VSC system of the Toyota VITZ GRMN. Key components include: REAR AXLE SHAFT & HUB, BRAKE TUBE & CLAMP, SWITCH & RELAY & COMPUTER, WIRE, SKID CONTROL SENSOR, RH, WIRE, SKID CONTROL SENSOR, LH.
