Toyota VISTA/VISTA ARDEO — RADIATOR GRILLE

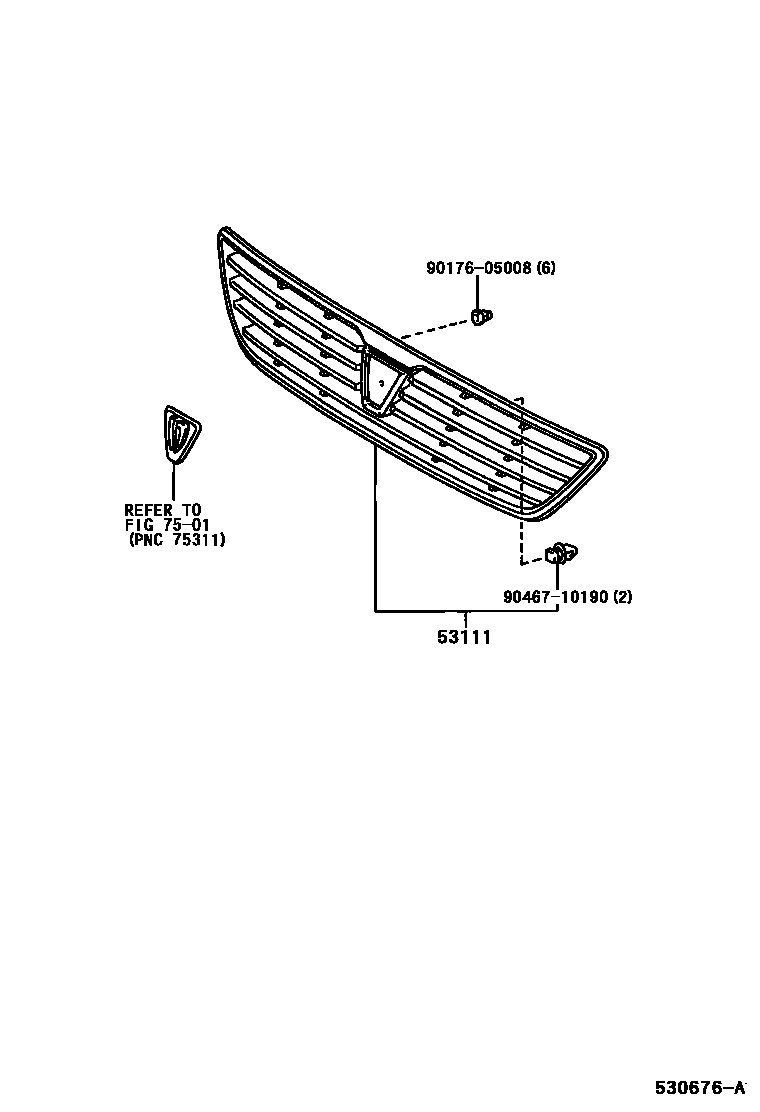

Parts diagram

53111GRILLE, RADIATOR

main53101-32340i200004

main53111-32320i199806-200004

main53111-32330i199806-200004

main53111-32350i199806-200004

main53111-32370-A0i200004

main53111-32370-A1i200004-200012

main53111-32370-B0i200004-200204

main53111-32370-B1i200004-200204

main53111-32370-B2i200204

main53111-32370-D0i200004-200108

main53111-32370-E0i200204

main53111-32370-G0i200004-200204

main53111-32370-G1i200204

main53111-32370-J0i200004

main53111-32380i200004

main53111-32390i200004-200012

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9017605008

main90176-05008

9046710190

main90467-10190

4 parts on this diagram · 3 diagrams in section

RADIATOR GRILLE for Toyota VISTA/VISTA ARDEO

This section contains 5 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota VISTA/VISTA ARDEO. Key components include: GRILLE, RADIATOR, PROTECTOR, RADIATOR GRILLE, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
