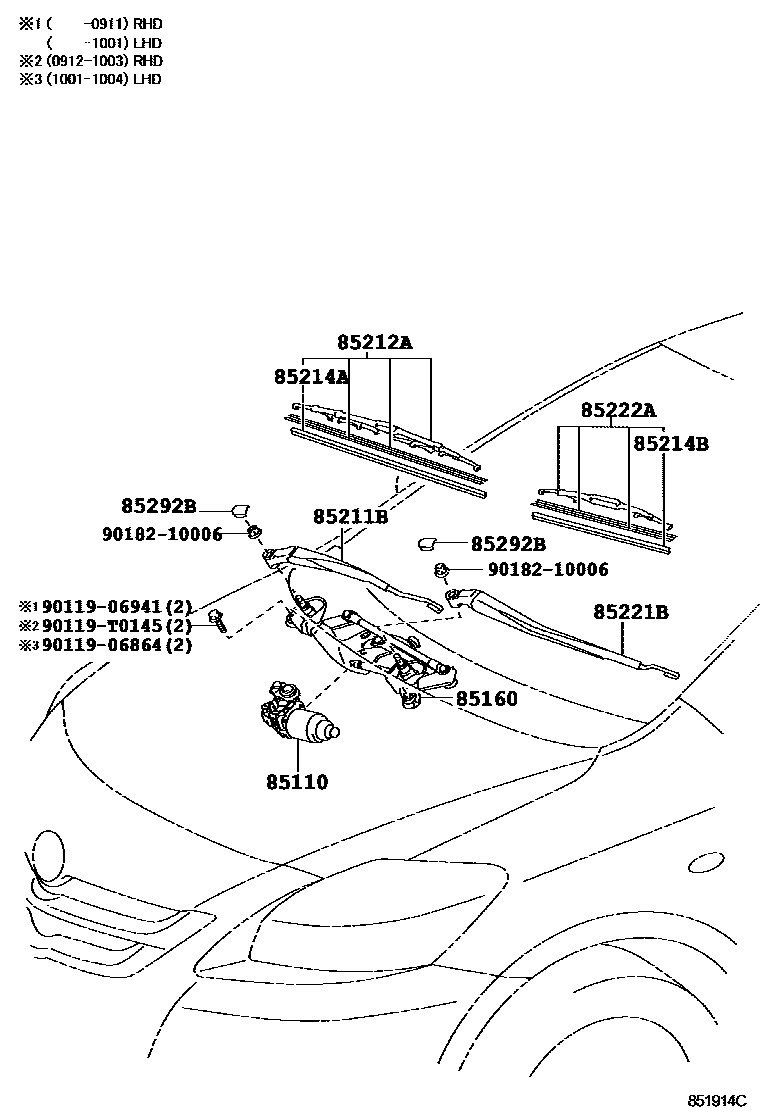

Toyota VIOS — WINDSHIELD WIPER

0001 1 0003 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D120iNCP93..MA200702-201004

main85110-0D130iNCP9#..LHD200708-201004

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D120iNCP93..IDN,TH200702-201003

main85150-0D130iNCP9#..LHD201004-201403

85211BARM, FRONT WIPER, RH

main85211-0D101iNCP93..IDN,TH200702-201003

main85211-0D111iNCP9#..LHD201004-201403

85212ABLADE, FR WIPER, RH

main85212-0D070iNCP93..MA200702-201004

main85212-0D081iNCP9#..LHD201004-201403

85214ARUBBER, WIPER, RH

main85214-02180iNCP93..MA200702-201004

main85214-0D121iNCP9#..LHD200708-201004

85214BRUBBER, WIPER, LH

main85214-02180iNCP9#..LHD200708-201004

main85214-0D121iNCP93..MA200702-201004

85221BARM, FRONT WIPER, LH

main85221-0D101iNCP93..RHD201003-201310

main85221-0D111iNCP9#..LHD201004-201403

85222ABLADE, FR WIPER, LH

main85222-0D071iNCP93..MA200702-201004

main85222-0D080iNCP9#..LHD201004-201403

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030×2iNCP9#201003-201403

9011906864

main90119-06864

9011906941

main90119-06941

90119T0145

main90119-T0145

9018210006

main90182-10006

13 parts on this diagram · 2 diagrams in section
