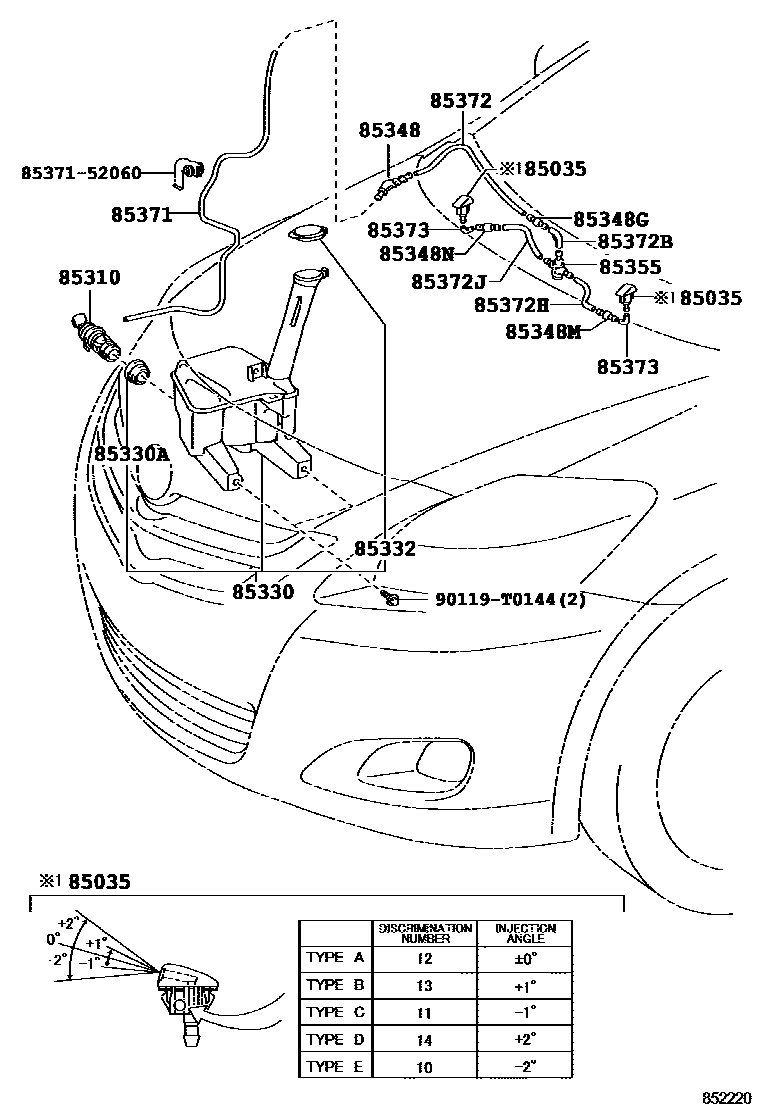

Toyota VIOS — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
TYPE D:REFER ILLUST.
TYPE E:REFER ILLUST.
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1800(*H,L=780)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=560
L=1800(*H,L=540)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=15
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=350
L=1800(*H,L=350)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=260
L=260
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=50
L=1000(*H,L=50)
8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-52060
90119T0144
main90119-T0144
18 parts on this diagram · 2 diagrams in section
