Toyota VIOS — V-BELT

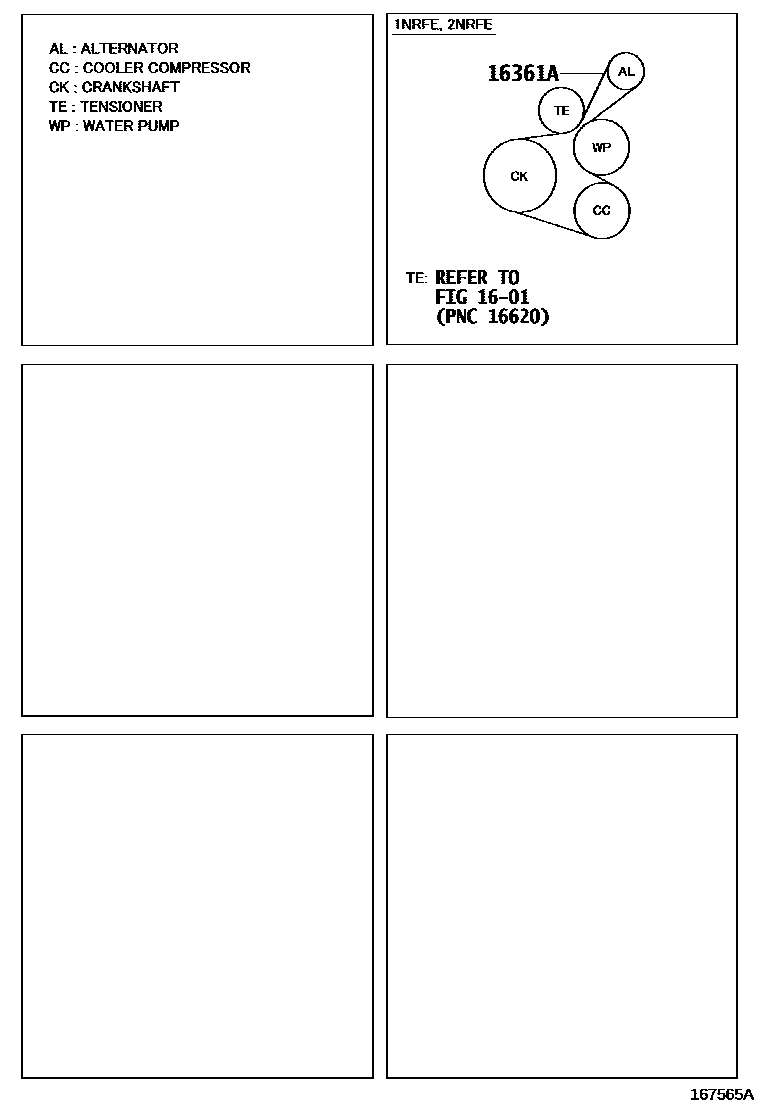

Parts diagram
1601WATER PUMP
→ Go to FIG 16-01
16361ABELT, V(FOR FAN & ALTERNATOR)
main90916-T2047i201911-202405

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota VIOS

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota VIOS. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
