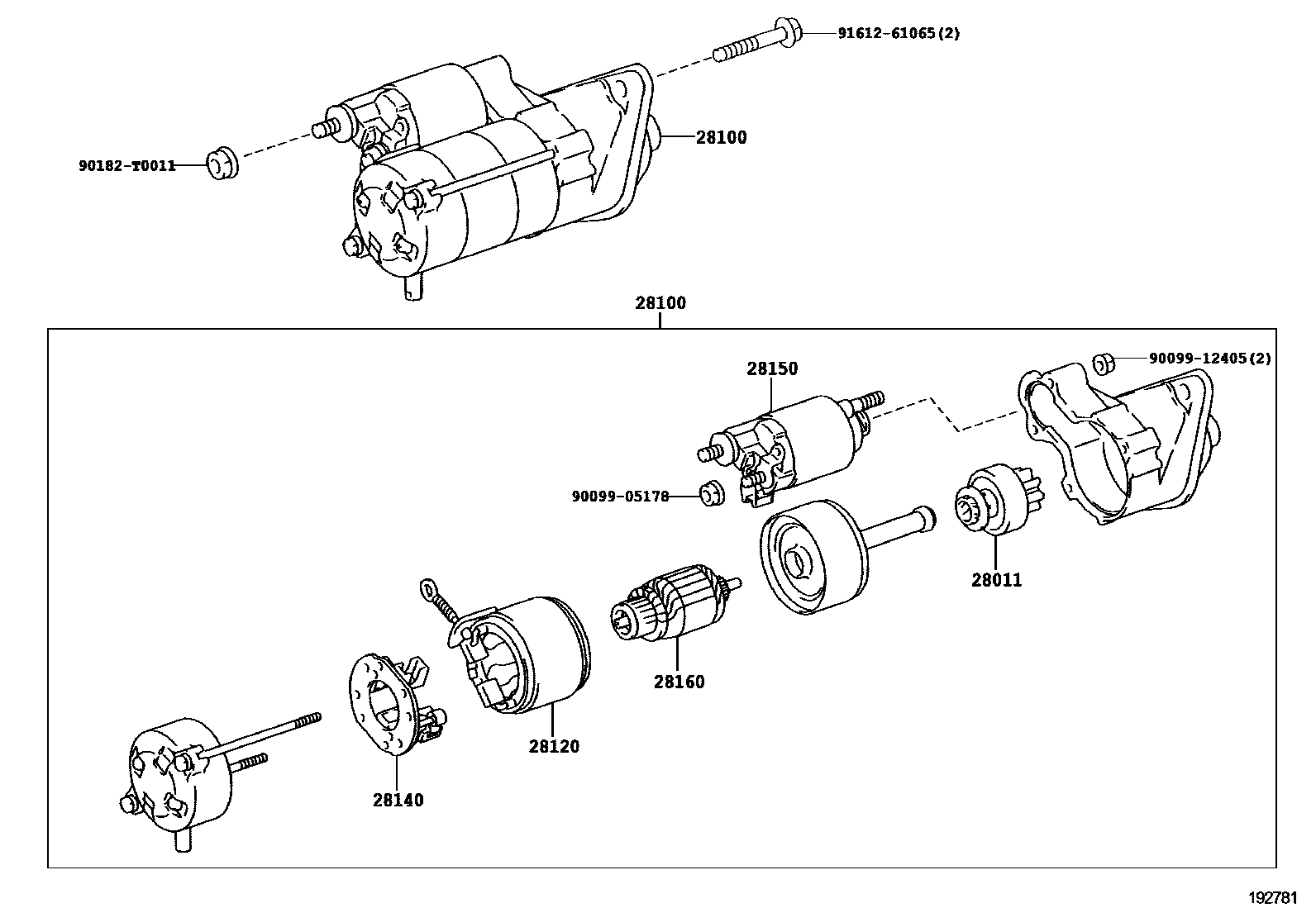

Toyota VIOS — STARTER

0001 112V 0.8KW 0002 112V 0.8KW

28011CLUTCH SUB-ASSY, STARTER

main28011-0T070i1NZFE,2NZFE..NCP9#201203-201403

main28011-70020i1NZFE,2NZFE..NCP9#201003-201203

28100STARTER ASSY

main28100-0M050i1NZFE,2NZFE..NCP9#200702-201001

12V 0.8KW

main28100-0M051i1NZFE,2NZFE..NCP9#201002-201004

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-0D040i1NZFE,2NZFE..NCP9#201003-201403

main28120-70020i1NZFE,2NZFE..NCP9#200702-201002

28140HOLDER ASSY, STARTER BRUSH

main28140-0T070i1NZFE,2NZFE..NCP9#201203-201403

main28140-70020i1NZFE,2NZFE..NCP9#200702-201004

28150SWITCH ASSY, MAGNET STARTER

main28150-0M050i1NZFE,2NZFE..NCP9#201203-201403

main28150-16160i1NZFE..NCP93200702-200707

main28150-21020i1NZFE,2NZFE..NCP9#201003-201203

28160ARMATURE ASSY, STARTER

main28160-0T100i1NZFE,2NZFE..NCP9#201203-201403

main28160-70021i1NZFE,2NZFE..NCP9#200702-201004

9009905178

main90099-05178

9009912405

main90099-12405

90182T0011

main90182-T0011

9161261065

main91612-61065

10 parts on this diagram · 2 diagrams in section
