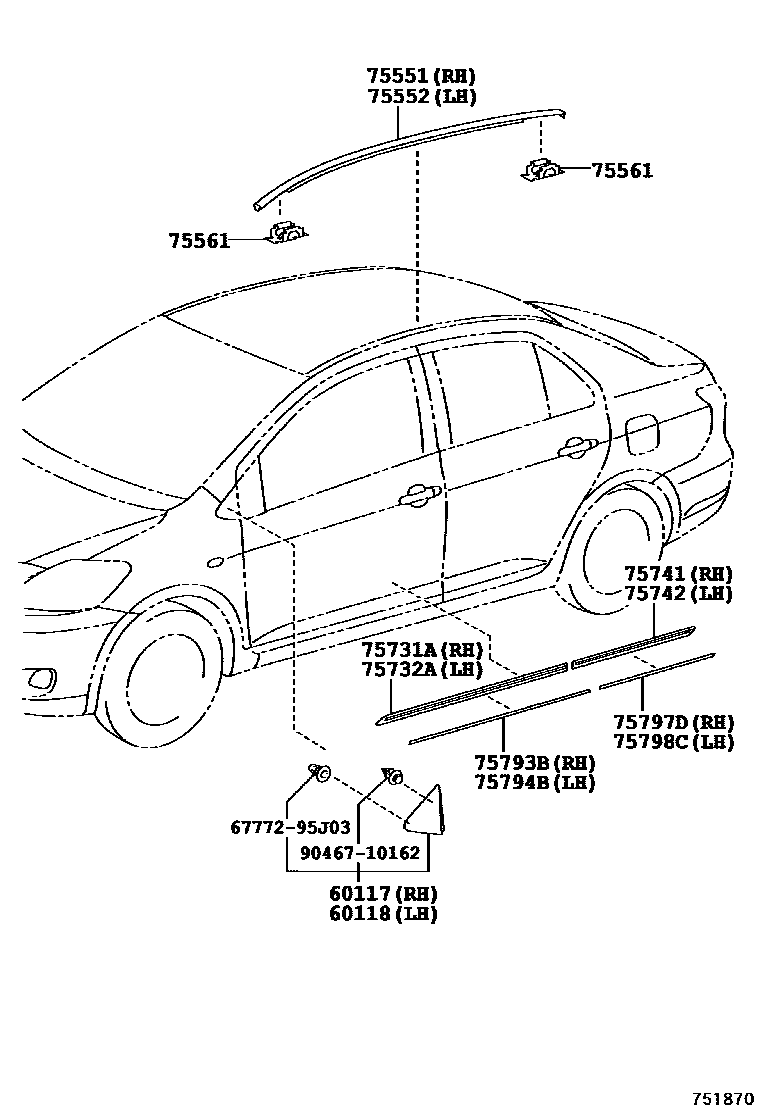

Toyota VIOS — SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
NO PAINT REQ.
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75731AMOULDING, FRONT DOOR, OUTSIDE RH
PAINT REQ.
PAINT REQ.
75732AMOULDING, FRONT DOOR, OUTSIDE LH
PAINT REQ.
PAINT REQ.
75741MOULDING, REAR DOOR, OUTSIDE RH
PAINT REQ.
PAINT REQ.
75742MOULDING, REAR DOOR, OUTSIDE LH
PAINT REQ.
PAINT REQ.
75793BINSERT, FRONT DOOR OUTSIDE MOULDING, RH
75794BINSERT, FRONT DOOR OUTSIDE MOULDING, LH
75797DINSERT, REAR DOOR OUTSIDE MOULDING, RH
75798CINSERT, REAR DOOR OUTSIDE MOULDING, LH
6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-95J03
9046710162
main90467-10162
15 parts on this diagram · 1 diagram in section
