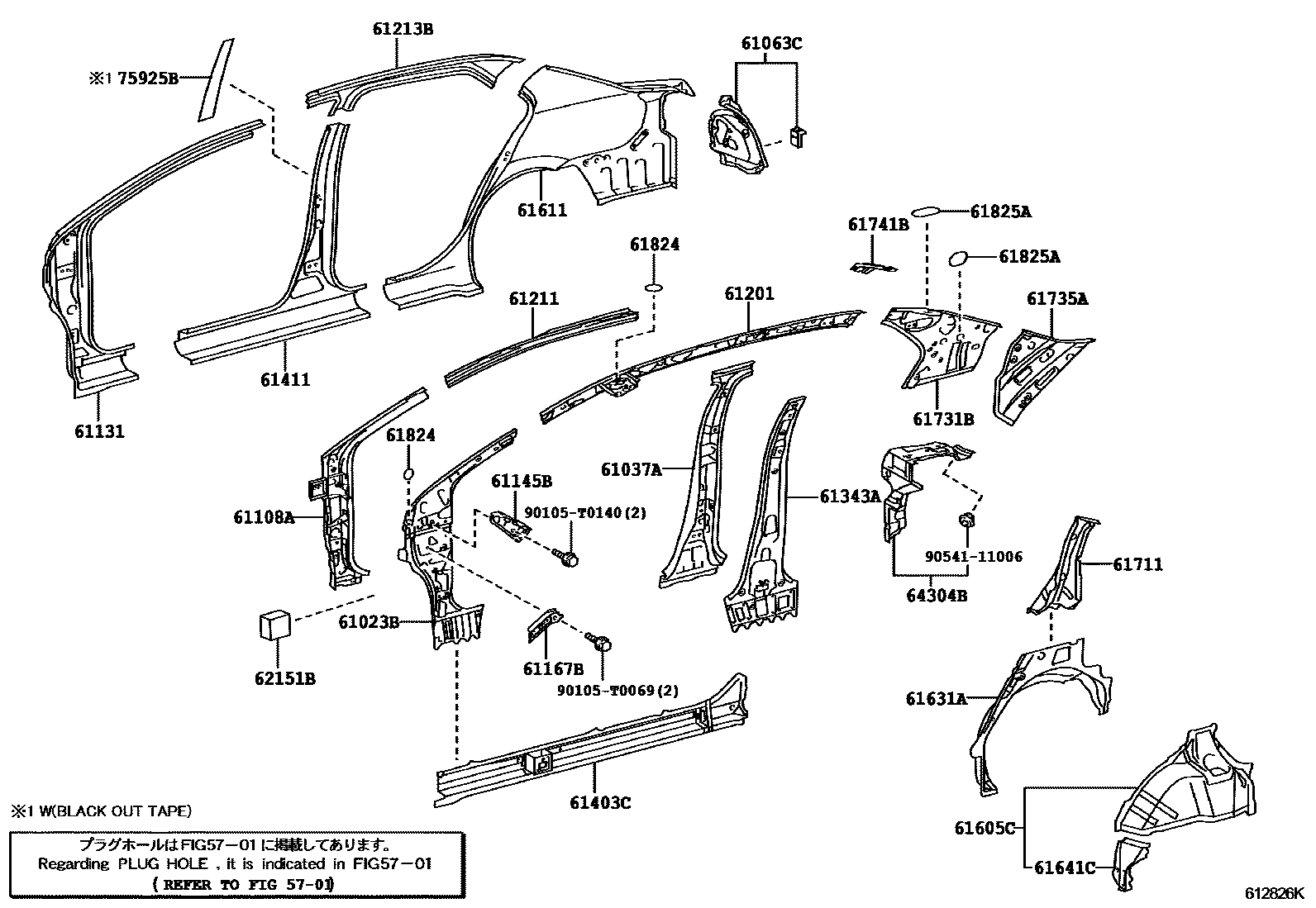

Toyota VIOS — SIDE MEMBER

0001 1RH 0002 1LH

5701

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0D120iNCP9#200702-201002

sub61023-0D121

main61023-0D121iNCP9#201003-201403

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-0D904iNCP93..IDN,TH200702-201403

61063CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH

main61063-0D010iNCP93..IDN,TH200702-201304

main61063-0D020iNCP9#..MA,PH,VN200708-201403

sub61063-0D010

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0D070iNCP9#200702-201403

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0D110iNCP93..S200702-201003

main61131-0D120iNCP93..RHD..(15E,15G,15J,LIMO)200702-201403

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-0D040iNCP93..IDN,TH200702-201403

61167BBRACE, FRONT BODY PILLAR, LOWER

main61167-0D020iNCP93..IDN,TH200702-201403

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-0D050iNCP9#200702-201002

main61201-0D090iNCP9#..MA,PH,VN201003-201403

61211RAIL, ROOF SIDE, OUTER RH

main61211-0D090iNCP93..IDN,TH200702-201403

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0D090iNCP93..IDN,TH200702-201403

61343APILLAR, CENTER BODY, INNER RH

main61032-0D040iNCP9#200702-201403

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0D090iNCP93..IDN,TH200702-201403

61411PANEL, ROCKER, OUTER RH

main61411-0D130iNCP93..S200702-201003

main61411-0D140iNCP93..RHD..(15E,15G,15J,LIMO)200702-201403

61605CPANEL SUB-ASSY, QUATER, REAR INNER RH

main61605-0D010iNCP93..IDN,TH200702-201304

main61605-0D020iNCP9#..MA,PH,VN200708-201403

sub61605-0D050

61611PANEL, QUARTER, RH

main61601-0D150iNCP93..S200702-201003

main61601-0D160iNCP93..RHD..(15E,15G,15J,LIMO)200702-201403

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-52140iNCP93..IDN,TH200702-201403

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-0D070iNCP93..IDN,TH200702-201112

main61641-0D070iNCP9#201112-201403

(L)

main61641-52100iNCP9#201112-201403

(J)

61711PANEL, ROOF SIDE, OUTER RH

main61711-52150iNCP9#200702-201403

61731BPANEL, ROOF SIDE, INNER RH

main61731-0D080iNCP9#200702-201002

sub61731-0D120

main61731-0D120iNCP9#..MA,PH,VN201003-201403

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-0D030iNCP9#200702-201403

61741BREINFORCEMENT, BACK WINDOW OPENING, RH

main61741-0D040iNCP93..IDN,TH200702-201304

main61741-52040iNCP9#..MA,PH,VN200708-201403

61824PLATE, NOISE CONTROL, NO.1

main61824-0D020iNCP9#200702-201001

main61825-0D020iNCP9#201001-201403

61825APLATE, NOISE CONTROL, NO.2

main61825-0D020iNCP9#200702-201403

62151BPAD, COWL SIDE SILENCER

main62151-0D020iNCP9#200702-201403

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-0D060iNCP93..IDN,TH200702-201112

main64304-0D060iNCP9#201112-201403

(L)

main64304-52080iNCP9#201112-201403

(J)

75925BTAPE, BLACK OUT, NO.3 RH

main75925-0D030iNCP93..IDN,TH200702-201403

90105T0069

main90105-T0069

90105T0140

main90105-T0140

9054111006

main90541-11006

30 parts on this diagram · 2 diagrams in section
