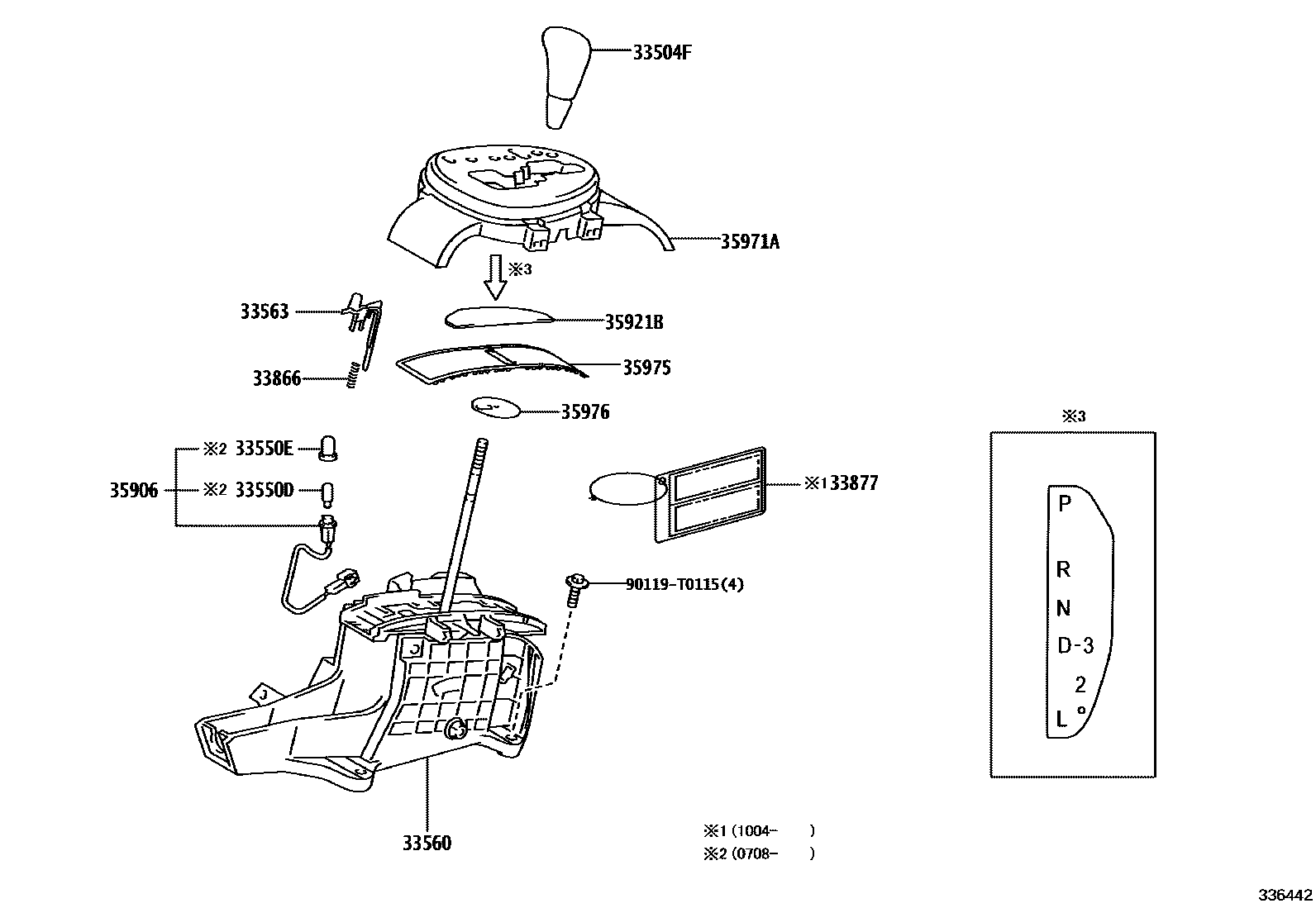

Toyota VIOS — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0D100-B0iNCP9#..MTM..(13E,13J,15E,15J,J,LIMO)200708-201403

DK.GRAY,TRIM1#

main33504-0D100-B0iNCP93..MTM..(IDN,MA,TH,VN)200702-201004

DK.GRAY,TRIM1#,4#

main33504-0D100-E0iNCP93..MTM..(15E,E)201003-201403

ASH BROWN,TRIM4#

main33504-0D170-B0iNCP93..G200901-201004

DK.GRAY,TRIM4#

main33504-0D170-B0iNCP93..ATM..15G200901-201307

DK.GRAY,TRIM1#

main33504-0D170-B0iNCP93..15G..TH200901-201003

DK.GRAY,TRIM1#,4#

main33504-0D170-E0iNCP93..ATM..(15G,G)..(IDN,MA,TH,VN)201003-201403

ASH BROWN,TRIM4#

main33504-0K010-B0iNCP93..S200906-201310

DK.GRAY,TRIM1#

main33504-0K010-B0iNCP93..ATM..(15E,15J);NCP93..ATM..(15G,E,J)..(IDN,MA)200702-201004

DK.GRAY,TRIM1#,4#

main33504-0K010-E1iNCP93..ATM..15E201003-201304

ASH BROWN,TRIM4#

main33504-13061-B2iNCP93..MTM..15G201003-201307

DK.GRAY,TRIM1#

sub33504-13061

main33504-13061-E0iNCP93..MTM..15G..IDN201003-201304

ASH BROWN,TRIM4#

sub33504-13061

main33504-35060-B0iNCP93..(15G,G,S)..(MA,TH)200702-200812

DK.GRAY,TRIM1#

sub33504-35060

main33504-35060-B0iNCP93..15S;NCP93..ATM..PH200702-200812

DK.GRAY,TRIM1#,4#

sub33504-35060

main33504-35060-B0iNCP93..G..VN200709-200812

DK.GRAY,TRIM4#

sub33504-35060

33550DBULB, POSITION INDICATOR LAMP

main35955-74010iNCP93..LHD..ATM200708-201401

12V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main35956-52020iNCP93..LHD..ATM200708-201401

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-0D040iNCP93..ATM..IDN200702-200910

WIRELESS DOOR LOCK-SMART KEY:FRONT(D) & BACK W(PUSH START)

sub33560-0D041

main33560-0D041iNCP93..15G..TH201003-201304

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

main33560-0D041iNCP93..15G..TH200911-201003

WIRELESS DOOR LOCK-SMART KEY:FRONT(D) & BACK W(PUSH START)

main33560-0D050iNCP93..ATM..(MA,TH)200702-200910

sub33560-0D051

main33560-0D051iNCP93..ATM..(MA,TH)200911-201310

main33560-52220iNCP9#..LHD..ATM200708-201403

33563BUTTON, SHIFT LOCK RELEASE

main33563-0D030iNCP93..ATM..MA200702-201310

main33563-52090iNCP93..LHD..ATM200708-201403

33866SPRING, SHIFT LOCK RELEASE

main33866-52010iNCP93..LHD..ATM200708-201403

main90501-T0013iNCP93..ATM..MA200702-201310

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-02010iNCP93..ATM..(IDN,TH)200702-201004

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-0D030iNCP93..ATM..(E,G,J)..MA200702-201310

main35906-0D040iNCP93..15S200702-201003

SINGAPORE & BRUNEI SPEC&WIRELESS DOOR LOCK-WITHOUT

main35906-0D040iNCP93..S200702-201310

main35906-52060iNCP93..LHD..ATM200708-201403

35921BPLATE, CONTROL POSITION INDICATOR NO,2

main35921-0D030iNCP93..ATM..MA200702-201310

main35921-52090iNCP93..LHD..ATM200708-201403

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-0D111iNCP93..ATM..15E200702-201004

main35971-0D112iNCP93..ATM..(15E,15J,E,J)201003-201310

main35971-0D130iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC&WIRELESS DOOR LOCK-WITHOUT

sub35971-0D131

main35971-0D130iNCP93..S200702-201004

sub35971-0D131

main35971-0D131iNCP93..S201004-201310

main35971-0D150iNCP93..ATM..15E200702-201004

main35971-0D241iNCP93..RHD..ATM..(15G,G)201003-201310

main35971-52310iNCP93..LHD..ATM200708-201004

main35971-52441iNCP93..LHD..ATM201004-201403

main35971-52540iNCP92..ATM201004-201307

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-0D030iNCP93..RHD..ATM200702-200910

sub35975-0D031

main35975-0D031iNCP93..RHD..ATM200911-201310

main35975-52080iNCP9#..LHD..ATM200708-201403

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-0D050iNCP93..RHD..ATM200702-200910

sub35976-0D051

main35976-0D051iNCP93..RHD..ATM200911-201310

main35976-52080iNCP9#..LHD..ATM200708-201403

90119T0115

main90119-T0115

13 parts on this diagram · 4 diagrams in section
