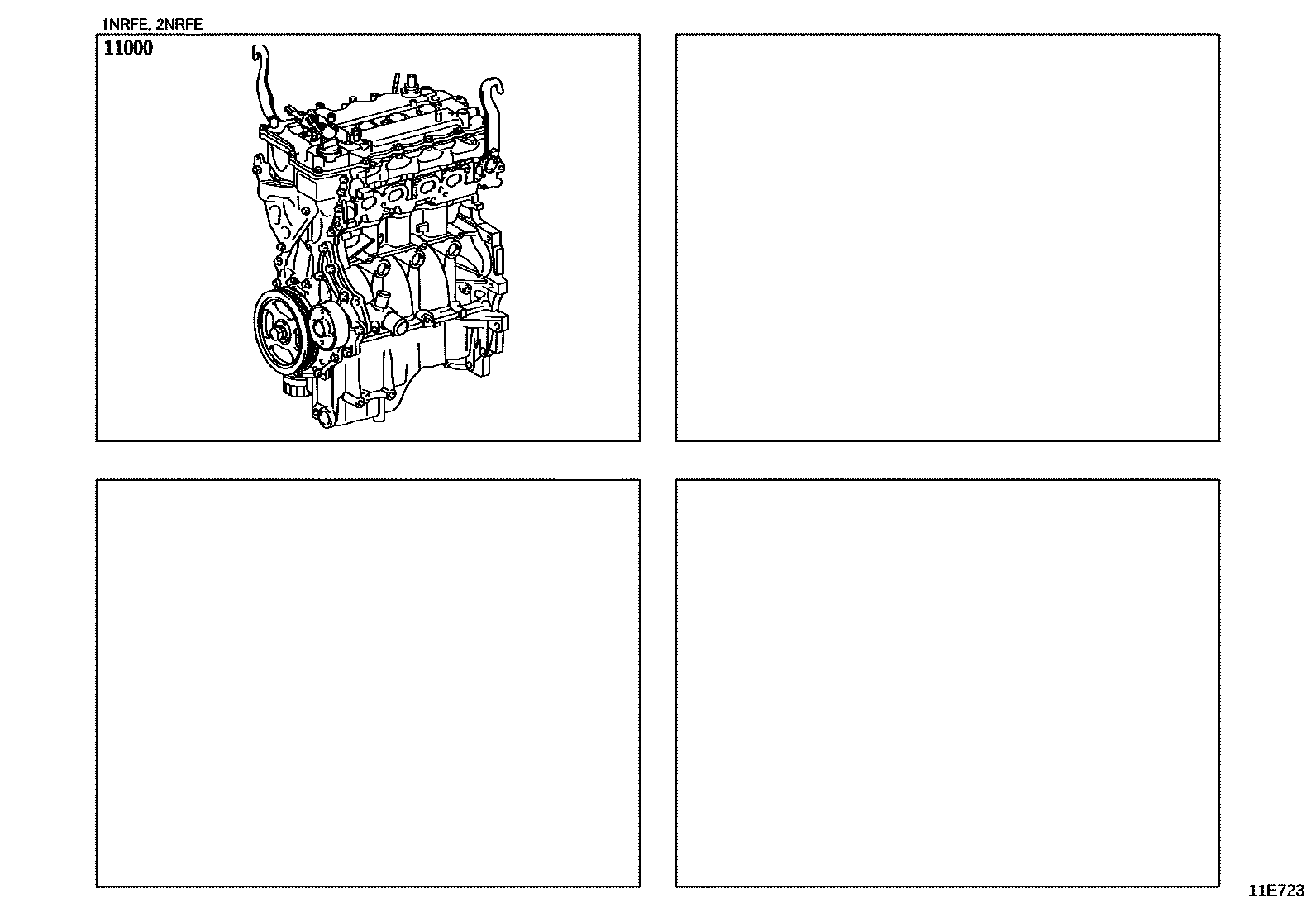

Toyota VIOS — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0Y110i201911-202002

main19000-0Y120i201911-202002

main19000-0Y130i201911-202002

main19000-0Y390i202002-202405

main19000-0Y400i202002-202104

main19000-0Y410i202002

1 parts on this diagram · 1 diagram in section
