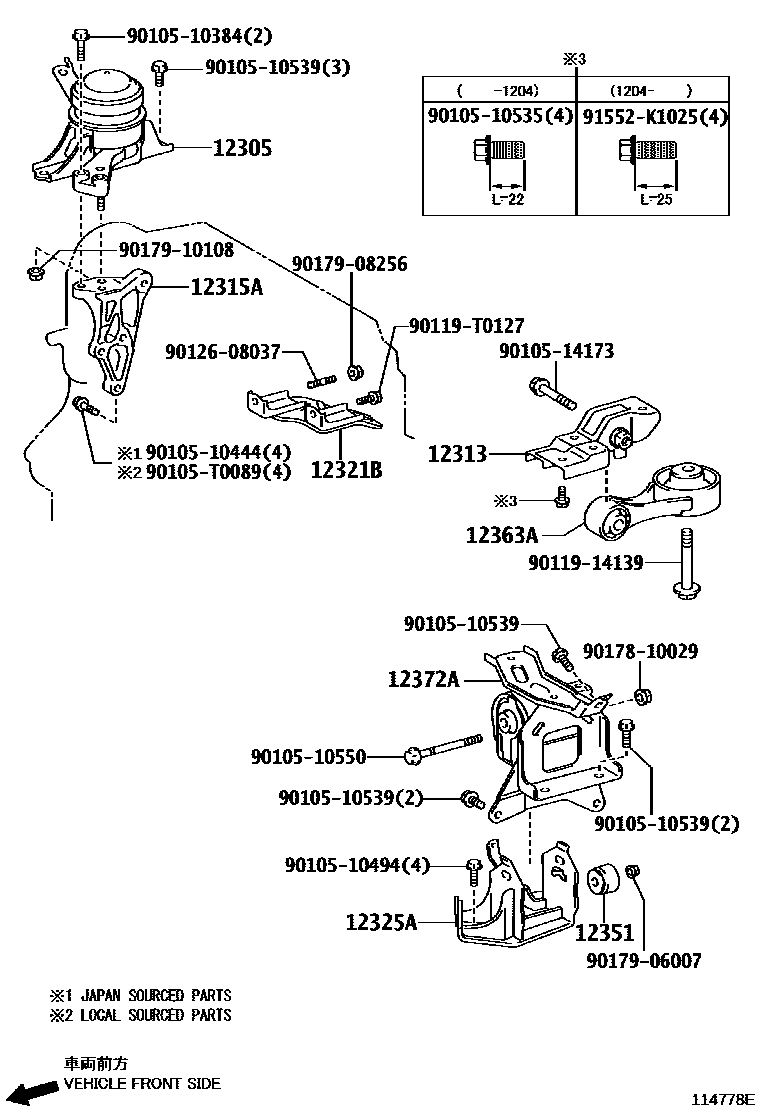

Toyota VIOS — MOUNTING

0001 1 0002 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-21330i1NZFE..NCP93..MTM..(IDN,TH)200702-201003

main12305-21331i1NZFE,2NZFE..NCP9#..MTM201206-201403

main12305-21340i1NZFE..NCP93..ATM..(MA,PH,VN)200702-201004

main12305-21341i1NZFE,2NZFE..NCP9#..ATM201206-201403

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-0M010i1NZFE..NCP93..MTM..(IDN,TH)200702-201003

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0M011i1NZFE..NCP93200702-201004

main12315-0M012i1NZFE..NCP93201203-201205

(L)

main12315-0M013i1NZFE..NCP93201205-201403

(L)

main12315-21031i2NZFE..NCP92200708-200908

main12315-21032i2NZFE..NCP92201004-201009

main12315-21033i2NZFE..NCP92201009-201307

main12315-21042i1NZFE..NCP93201003-201009

(J)

main12315-21043i1NZFE..NCP93201009-201201

(J)

main12315-21044i1NZFE..NCP93201201-201403

(J)

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-0D020i1NZFE,2NZFE..NCP9#..MA,PH,VN200702-201004

(L)

main43409-52020i1NZFE,2NZFE..NCP9#..MA,PH,VN200702-201004

(J)

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0M060i1NZFE..NCP93..MTM..VN200702-201004

main12325-0M070i1NZFE..NCP93..ATM..(IDN,TH,VN)201003-201403

main12325-21180i2NZFE..NCP92..ATM201004-201307

main12325-21190i1NZFE..NCP93..ATM..(MA,PH)201004-201310

main12325-21230i1NZFE,2NZFE..NCP9#..MTM..(MA,PH)200708-201004

12351DAMPER, ENGINE MOUNTING

main12351-21090i1NZFE..NCP93;2NZFE..NCP92..MTM201003-201403

12363AROD, ENGINE MOVING CONTROL

main12363-0M010i1NZFE,2NZFE..NCP9#..MTM..(MA,PH,VN)200702-201004

main12363-0M011i1NZFE,2NZFE..NCP9#..MTM201210-201403

main12363-0M020i1NZFE..NCP93..ATM..(MA,PH,VN)200702-201004

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0M050i1NZFE..NCP93..MTM..(IDN,TH)200702-201003

main12372-0M060i1NZFE..NCP93..ATM..(IDN,TH)200702-201003

main12372-21130i1NZFE,2NZFE..NCP9#..MTM..(MA,PH,VN)200708-200901

main12372-21131i1NZFE,2NZFE..NCP9#..MTM..(MA,PH,VN)201004-201403

main12372-21150i1NZFE,2NZFE..NCP9#..ATM..(MA,PH,VN)201004-201403

9010510384

main90105-10384

9010510444

main90105-10444

9010510494

main90105-10494

9010510535

main90105-10535

9010510539

main90105-10539

9010510550

main90105-10550

9010514173

main90105-14173

90105T0089

main90105-T0089

9011914139

main90119-14139

90119T0127

main90119-T0127

9012608037

main90126-08037

9017810029

main90178-10029

9017906007

main90179-06007

9017908256

main90179-08256

9017910108

main90179-10108

91552K1025

main91552-K1025

24 parts on this diagram · 2 diagrams in section
