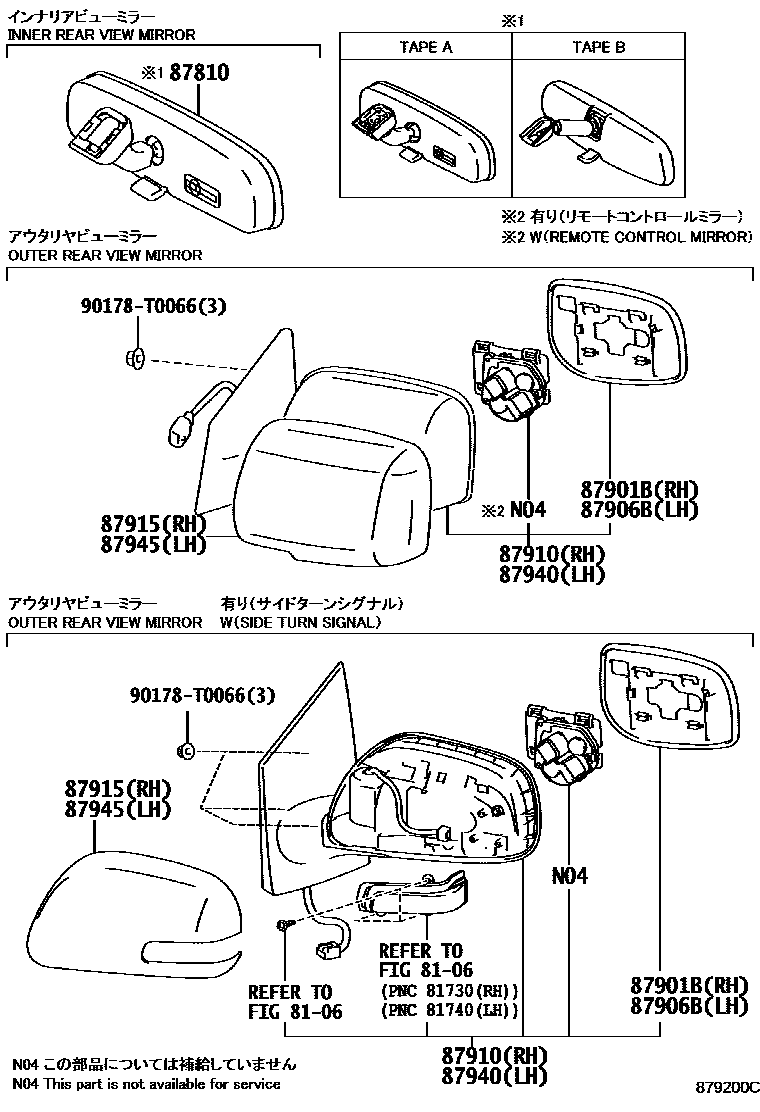

Toyota VIOS — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
TYPE A
TYPE B
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,SINGAPORE & BRUNEI SPEC
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
PAINT REQ.
PAINT REQ.
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,SINGAPORE & BRUNEI SPEC
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
PAINT REQ.
PAINT REQ.
90178T0066
main90178-T0066
9 parts on this diagram · 1 diagram in section
