Toyota VIOS — METER

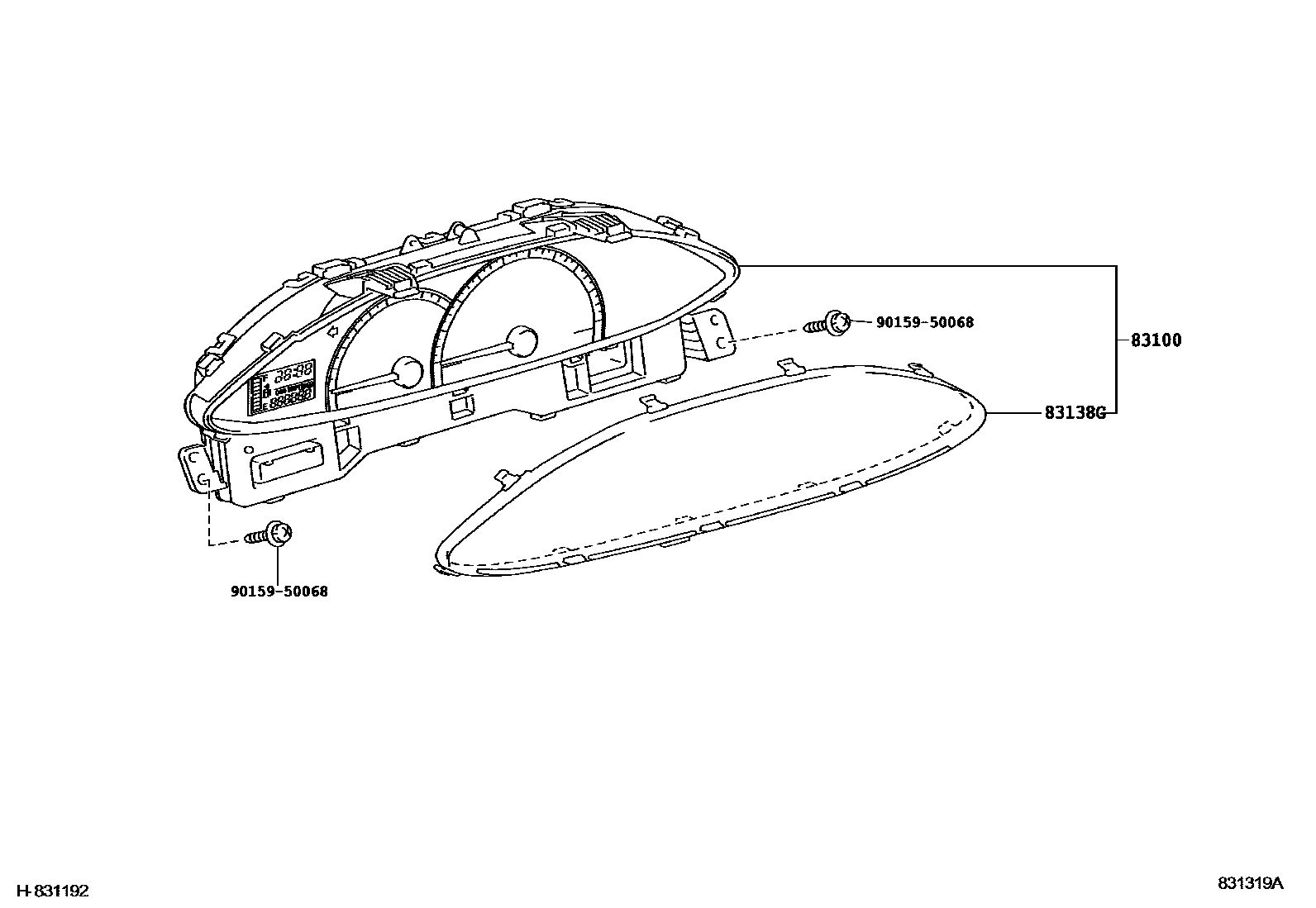

83100METER ASSY, COMBINATION

main83800-0DD30iNCP93..ATM..IDN200807-200901

main83800-0DD31iNCP93..RHD..ATM..15G200902-201003

main83800-0DD40iNCP93..15G..TH200702-200901

SINGAPORE & BRUNEI SPEC

main83800-0DD41iNCP93..15S200902-201003

SINGAPORE & BRUNEI SPEC

main83800-0DD50iNCP93..RHD..ATM..(15E,E,G)200702-200901

SINGAPORE & BRUNEI SPEC

main83800-0DD51iNCP93..(E,G)..MA200902-201004

main83800-0DD60iNCP93..15E..IDN200807-200901

main83800-0DD61iNCP93..15E..IDN200902-201003

SINGAPORE & BRUNEI SPEC

main83800-0DD70iNCP93..ATM..IDN200702-200807

main83800-0DD80iNCP93..MTM..15G..IDN200702-200806

main83800-0DD81iNCP93..MTM..15G..IDN200807-200901

main83800-0DD82iNCP93..MTM..15G..IDN200902-201003

main83800-0DD90iNCP93..15E..IDN200702-200807

main83800-0DE00iNCP93..LHD..ATM200708-200901

main83800-0DE01iNCP93..LHD..ATM200902-201004

main83800-0DE10iNCP93..LHD..MTM..(15G,E)200708-200901

main83800-0DE11iNCP93..LHD..MTM..(15G,E)200902-201004

main83800-0DE20iNCP92..13J200708-200901

main83800-0DE21iNCP92..13J200902-201004

main83800-0DE70iNCP92..13E200708-200901

main83800-0DE71iNCP92..13E200902-201004

main83800-0DE80iNCP93..ATM..15E200702-200901

SRS AIR BAG-WITHOUT

main83800-0DE81iNCP93..ATM..J200902-201004

main83800-0DE90iNCP93..MTM..15J200702-200807

main83800-0DE91iNCP93..MTM..MA200902-201004

main83800-0DK70iNCP93..RHD..MTM..(15J,LIMO)200807-200901

main83800-0DK71iNCP93..RHD..MTM..(15J,LIMO)200902-201003

main83800-0DM00iNCP93..RHD..ATM..(15E,E,G,J)201003-201310

main83800-0DM10iNCP93..MTM..(15E,J)..(IDN,MA)201003-201310

main83800-0DM20iNCP92..13J201004-201403

main83800-0DM30iNCP92..MTM..13E201004-201307

main83800-0DM50iNCP93..MTM..15E..TH201003-201209

main83800-0DM51iNCP93..MTM..15E..TH201209-201304

main83800-0DM70supersedes 83800-0DF00iNCP93..RHD..MTM..(15J,LIMO)201003-201209

main83800-0DM71iNCP93..RHD..MTM..(15J,LIMO)201209-201304

main83800-0DM90iNCP93..S201004-201310

main83800-0DN00iNCP93..RHD..ATM..15G201003-201304

main83800-0DN10iNCP93..MTM..15G..IDN201003-201304

main83800-0DN20iNCP93..LHD..ATM201004-201403

main83800-0DN30iNCP93..LHD..MTM..(15G,E)201004-201403

main83800-0DP40iNCP92..ATM201004-201307

main83800-0DK80supersedes 83800-0DM40iNCP93..ATM..15J200807-200901

J-ECO PACKAGE

main83800-0DK81supersedes 83800-0DM40iNCP93..ATM..15J200902-201003

J-ECO PACKAGE

main83800-0DM80supersedes 83800-0DM40iNCP93..ATM..15J201003-201209

J-ECO PACKAGE

main83800-0DM81supersedes 83800-0DM40iNCP93..ATM..15J201209-201304

J-ECO PACKAGE

main83800-0DN80supersedes 83800-0DD30iNCP93..15G..TH201003-201304

SINGAPORE & BRUNEI SPEC

83138GGLASS, COMBINATION METER

main83852-0DD30iNCP93..RHD..(15G,15S)200702-201003

main83852-0DD50iNCP93..RHD..(15E,15J,LIMO)200702-201003

9015950068

main90159-50068

3 parts on this diagram · 1 diagram in section
