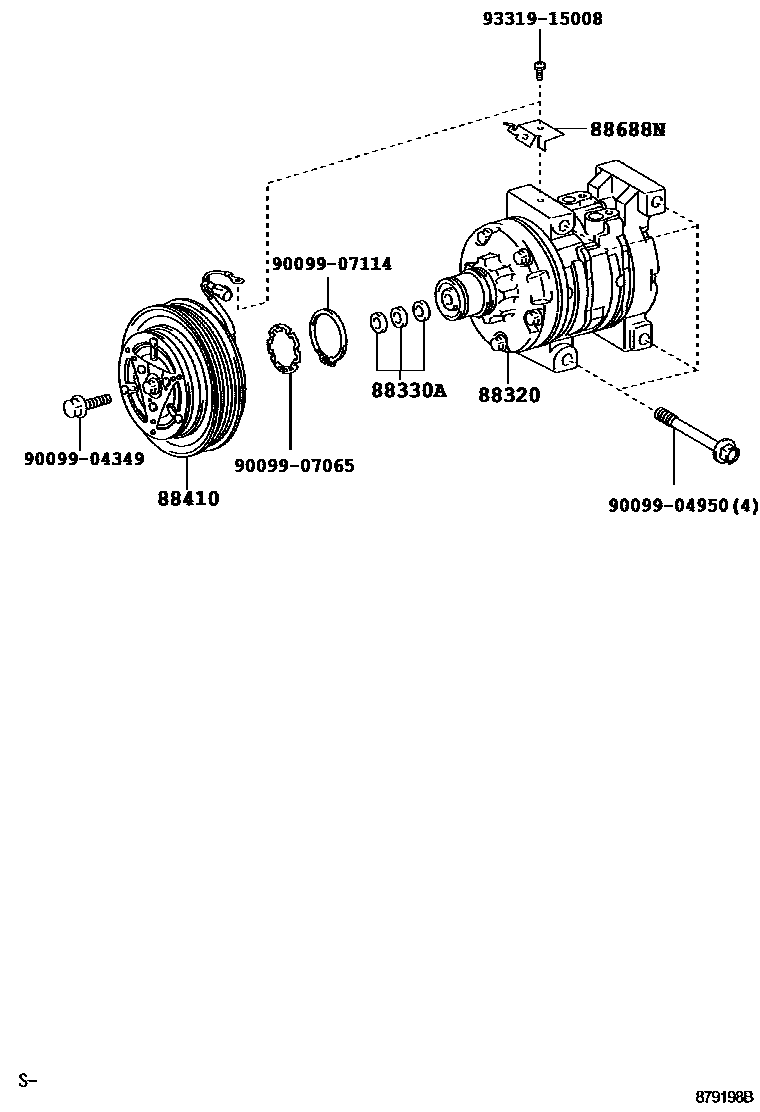

Toyota VIOS — HEATING & AIR CONDITIONING - COMPRESSOR

88320COMPRESSOR ASSY, COOLER

main88320-0D020i200702-201004

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i201003-201403

main88335-30420i200702-200802

SINGAPORE & BRUNEI SPEC

88410CLUTCH ASSY, MAGNET

main88410-0D100i200702-200802

SINGAPORE & BRUNEI SPEC

main88410-0D130i200802-200808

SINGAPORE & BRUNEI SPEC

main88410-0D160i200802-201004

88688NBRACKET, COOLER

main88688-25200i200702-201004

9009904349

main90099-04349

9009904950

main90099-04950

9009907065

main90099-07065

9009907114

main90099-07114

9331915008

main93319-15008

9 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota VIOS

This section contains 11 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota VIOS. Key components include: COMPRESSOR ASSY, W/PULLEY, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), CLUTCH ASSY, MAGNET, BRACKET, COOLER.
