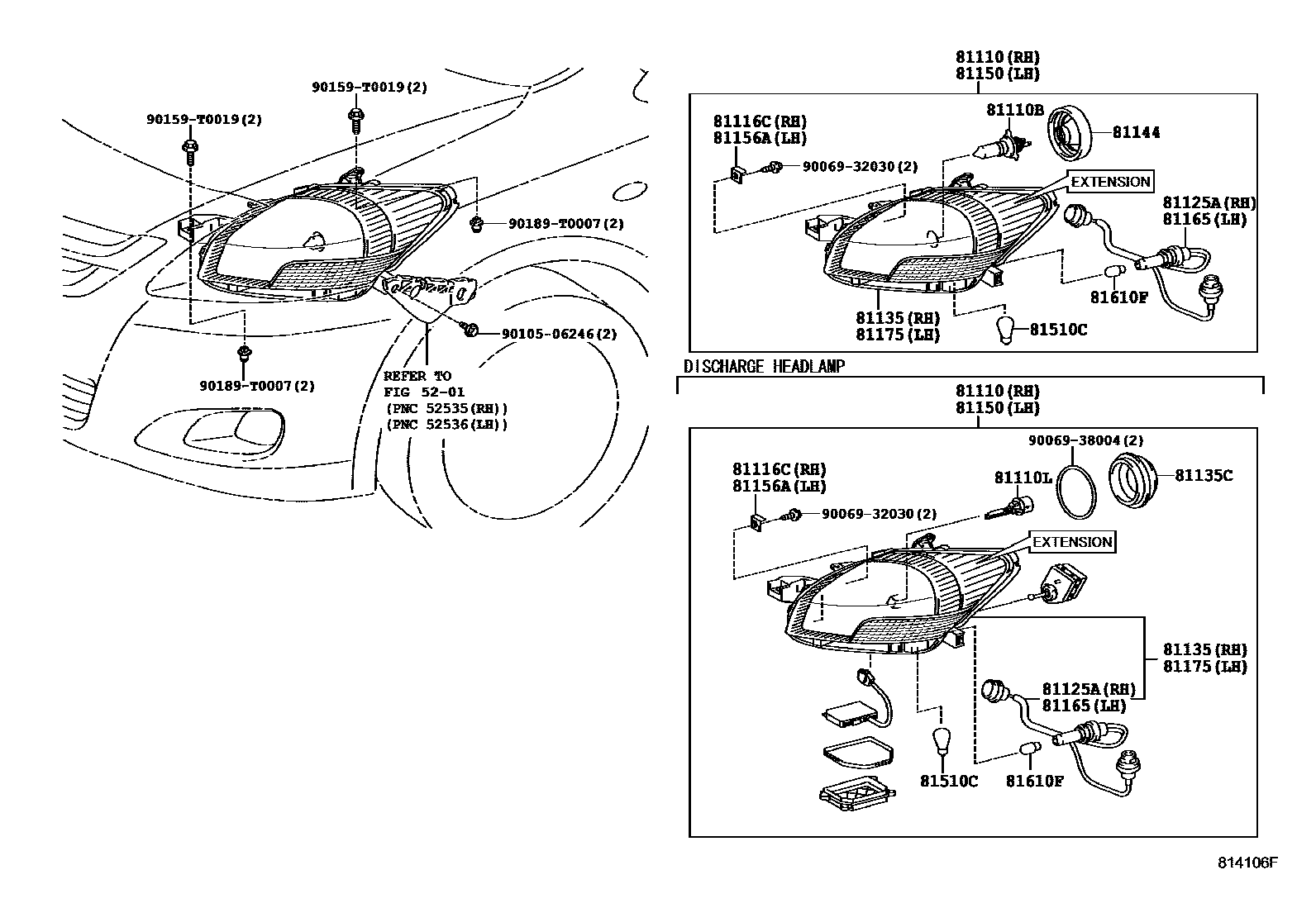

Toyota VIOS — HEADLAMP

5201

81110HEADLAMP ASSY, RH

main81110-0D270iNCP93..15G..IDN200702-201003

main81110-0D270iNCP93..15G..IDN201003-201203

EXTENSION=CHROME

main81110-0D280iNCP9#..LHD200708-201004

main81110-0D280iNCP93..LIMO..VN201004-201401

EXTENSION=CHROME

main81110-0D290iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J)..TH200702-201004

main81110-0D290iNCP93..MA,TH;NCP93..15E..IDN201003-201304

EXTENSION=CHROME

main81110-0D380iNCP93..15G..IDN200709-200710

sub81110-0D270

main81110-0D680iNCP9#..LHD..(13E,13J,15G,E,G)201203-201401

EXTENSION=SMOKE

main81110-0D690iNCP93..MA,TH;NCP93..15E..IDN201203-201310

EXTENSION=SMOKE

main81110-0D730iNCP93..15G..IDN201203-201304

EXTENSION=SMOKE

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J)..TH200702-201403

12V 60/55W,HALOGEN

81110LBULB, DISCHARGE HEADLAMP

main90981-20012iNCP93..15S;NCP93..15G..IDN200702-201304

45V 35W

81116CBRACKET, HEADLAMP, RH

main81116-0D290iNCP93..15G..IDN200702-201403

81125ACORD, HEADLAMP, RH

main81125-0D270iNCP93..15G..IDN200702-201304

main81125-0D290iNCP93..(15E,LIMO)..IDN;NCP9#..(13E,13J,15E,15G,15J,E,G,J,LIMO,S)..(MA,PH,TH,VN)200702-201403

81135UNIT ASSY, HEADLAMP, RH

main81130-0D280iNCP9#..LHD..(13E,13J,15G,E,G)201004-201401

EXTENSION=CHROME

main81130-0D280iNCP9#..LHD200708-201004

main81130-0D290iNCP93..MA,TH;NCP93..15E..IDN201003-201304

EXTENSION=CHROME

main81130-0D290iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J)..TH200702-201004

main81130-0D680iNCP9#..LHD..(13E,13J,15G,E,G)201203-201401

EXTENSION=SMOKE

main81130-0D690iNCP93..MA,TH;NCP93..15E..IDN201203-201310

EXTENSION=SMOKE

main81130-0D730iNCP93..15G..IDN201203-201304

EXTENSION=SMOKE

main81140-0D270iNCP93..15S200702-201003

main81140-0D270iNCP93..15G..IDN201003-201203

EXTENSION=CHROME

81135CCOVER, HEADLAMP BACK, NO.1

main81135-0D270iNCP93..15G..IDN200702-201304

81144COVER, HEADLAMP, NO.1

main90069-81046iNCP93..(15E,LIMO)..IDN;NCP9#..(13E,13J,15E,15G,15J,E,G,J,LIMO,S)..(MA,PH,TH,VN)200702-200910

main90069-81087iNCP93..(15E,LIMO)..IDN;NCP9#..(13E,13J,15E,15G,15J,E,G,J,LIMO,S)..(MA,PH,TH,VN)200910-201403

81150HEADLAMP ASSY, LH

main81150-0D270iNCP93..15G..IDN201003-201203

EXTENSION=CHROME

main81150-0D270iNCP93..15S200702-201003

main81150-0D280iNCP93..LIMO..VN201004-201401

EXTENSION=CHROME

main81150-0D280iNCP9#..LHD200708-201004

main81150-0D290iNCP93..MA,TH;NCP93..15E..IDN201003-201304

EXTENSION=CHROME

main81150-0D290iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J)..TH200702-201004

main81150-0D380iNCP93..15G..IDN200709-200710

sub81150-0D270

main81150-0D680iNCP9#..LHD..(13E,13J,15G,E,G)201203-201401

EXTENSION=SMOKE

main81150-0D690iNCP93..MA,TH;NCP93..15E..IDN201203-201310

EXTENSION=SMOKE

main81150-0D730iNCP93..15G..IDN201203-201304

EXTENSION=SMOKE

81156ABRACKET, HEADLAMP, LH

main81116-0D290iNCP9#200702-201403

81165CORD, HEADLAMP, LH

main81125-0D270iNCP93..15G..IDN200702-201304

main81125-0D290iNCP93..(15E,LIMO)..IDN;NCP9#..(13E,13J,15E,15G,15J,E,G,J,LIMO,S)..(MA,PH,TH,VN)200702-201403

81175UNIT ASSY, HEADLAMP, LH

main81070-0D270iNCP93..15G..IDN201003-201203

EXTENSION=CHROME

main81070-0D270iNCP93..15G..IDN200702-201003

main81170-0D280iNCP93..LIMO..VN201004-201401

EXTENSION=CHROME

main81170-0D280iNCP9#..LHD200708-201004

main81170-0D290iNCP93..LIMO..IDN201003-201304

EXTENSION=CHROME

main81170-0D290iNCP93..(15E,LIMO)..IDN;NCP93..(15E,15G,15J)..TH200702-201004

main81170-0D680iNCP9#..LHD..(13E,13J,15G,E,G)201203-201401

EXTENSION=SMOKE

main81170-0D690iNCP93..MA,TH;NCP93..15E..IDN201203-201310

EXTENSION=SMOKE

main81170-0D730iNCP93..15G..IDN201203-201304

EXTENSION=SMOKE

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15009iNCP9#..MA,PH,VN200702-201403

12V 21W,AMBER

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iNCP93..IDN,TH200702-201403

12V 5W

9006932030

main90069-32030

9006938004

main90069-38004

9010506246

main90105-06246

90159T0019

main90159-T0019

90189T0007

main90189-T0007

20 parts on this diagram · 1 diagram in section
