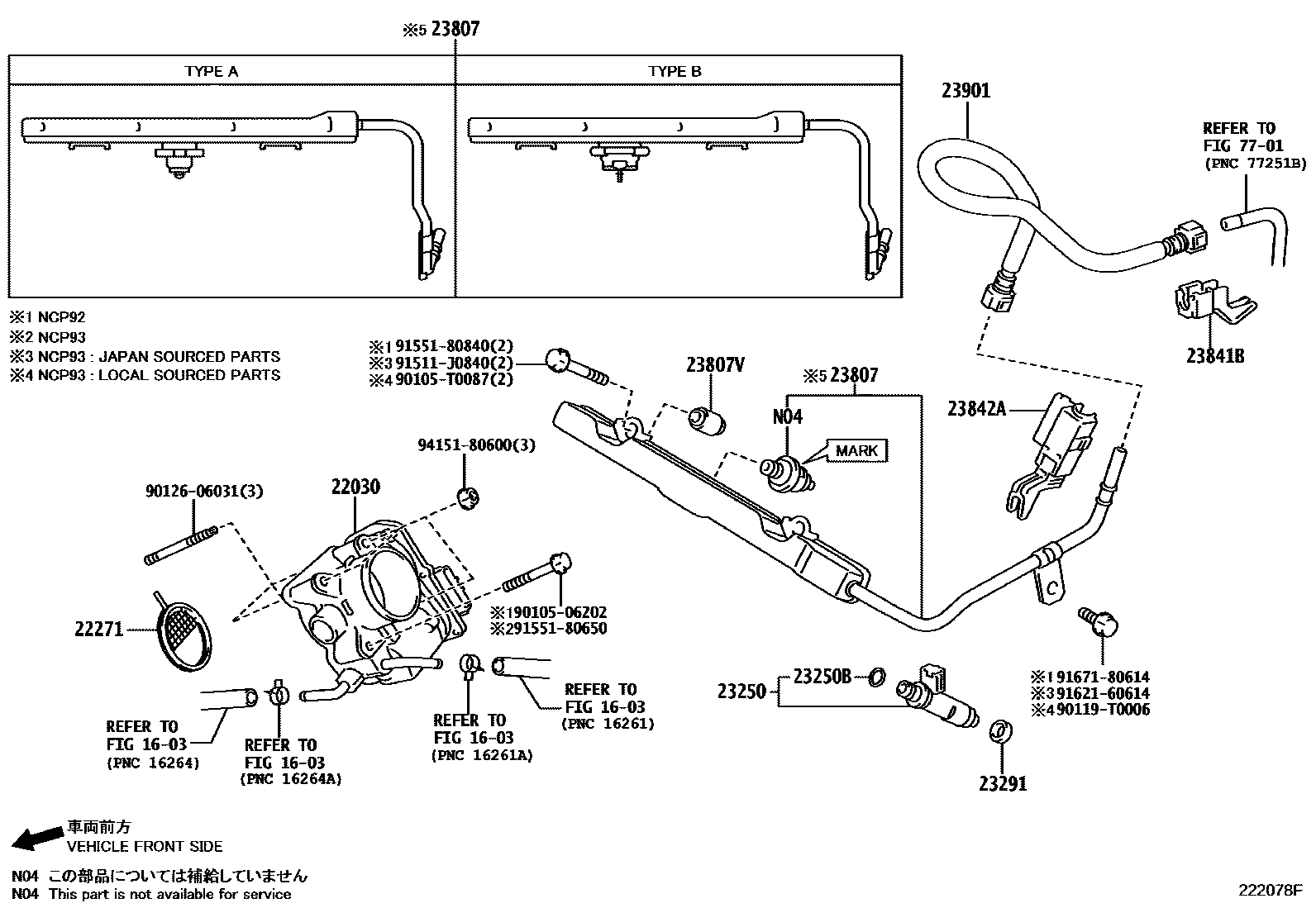

Toyota VIOS — FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0M010i1NZFE..NCP93200702-201004

(L)

main22030-21030i1NZFE..NCP93..MA,PH,VN200702-201004

(J)

main22030-21030i2NZFE..NCP92200708-201307

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE,2NZFE..NCP9#..MA,PH,VN200702-201403

23250INJECTOR ASSY, FUEL

main23209-0M010i1NZFE..NCP93200702-201004

(L)

main23209-21040i2NZFE..NCP92200708-201307

sub23209-21120

main23209-21040i1NZFE..NCP93..MA,PH,VN200702-201004

(J)

sub23209-21120

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i1NZFE,2NZFE..NCP9#..MA,PH,VN200702-201004

23291INSULATOR, INJECTOR VIBRATION

main23291-0H020i1NZFE..NCP93..IDN,TH200702-201004

(L)

main23291-23010i2NZFE..NCP92201107-201307

main23291-41010i2NZFE..NCP92200708-201107

main23291-41010i1NZFE..NCP93..IDN,TH200702-201004

(J)

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21051i2NZFE..NCP92201003-201209

TYPE A:REFER ILLUST.

sub23807-21090

main23807-21051i1NZFE..NCP93200702-201004

MARK 23270-21011

sub23807-21090

main23807-21070i1NZFE..NCP93..IDN,MA,PH,VN200711-201003

MARK 23270-21020

sub23807-21090

main23807-21070i1NZFE..NCP93..TH201003-201209

TYPE A:REFER ILLUST.

sub23807-21090

main23807-21090i2NZFE..NCP92201208

TYPE B:REFER ILLUST.

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010i1NZFE,2NZFE..NCP9#200702-201004

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NZFE..NCP93..IDN,TH200702-201403

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21040i1NZFE,2NZFE..NCP9#..MA,PH,VN200906-201301

main23841-37090i1NZFE,2NZFE..NCP9#201302-201403

main23842-21010i1NZFE,2NZFE..NCP9#200702-200906

23901TUBE SUB-ASSY, FUEL

main23901-0M010i1NZFE,2NZFE..NCP9#200702-201403

7701

9010506202

main90105-06202

90105T0087

main90105-T0087

90119T0006

main90119-T0006

9012606031

main90126-06031

91511J0840

main91511-J0840

9155180650

main91551-80650

9155180840

main91551-80840

9162160614

main91621-60614

9167180614

main91671-80614

9415180600

main94151-80600

22 parts on this diagram · 1 diagram in section
