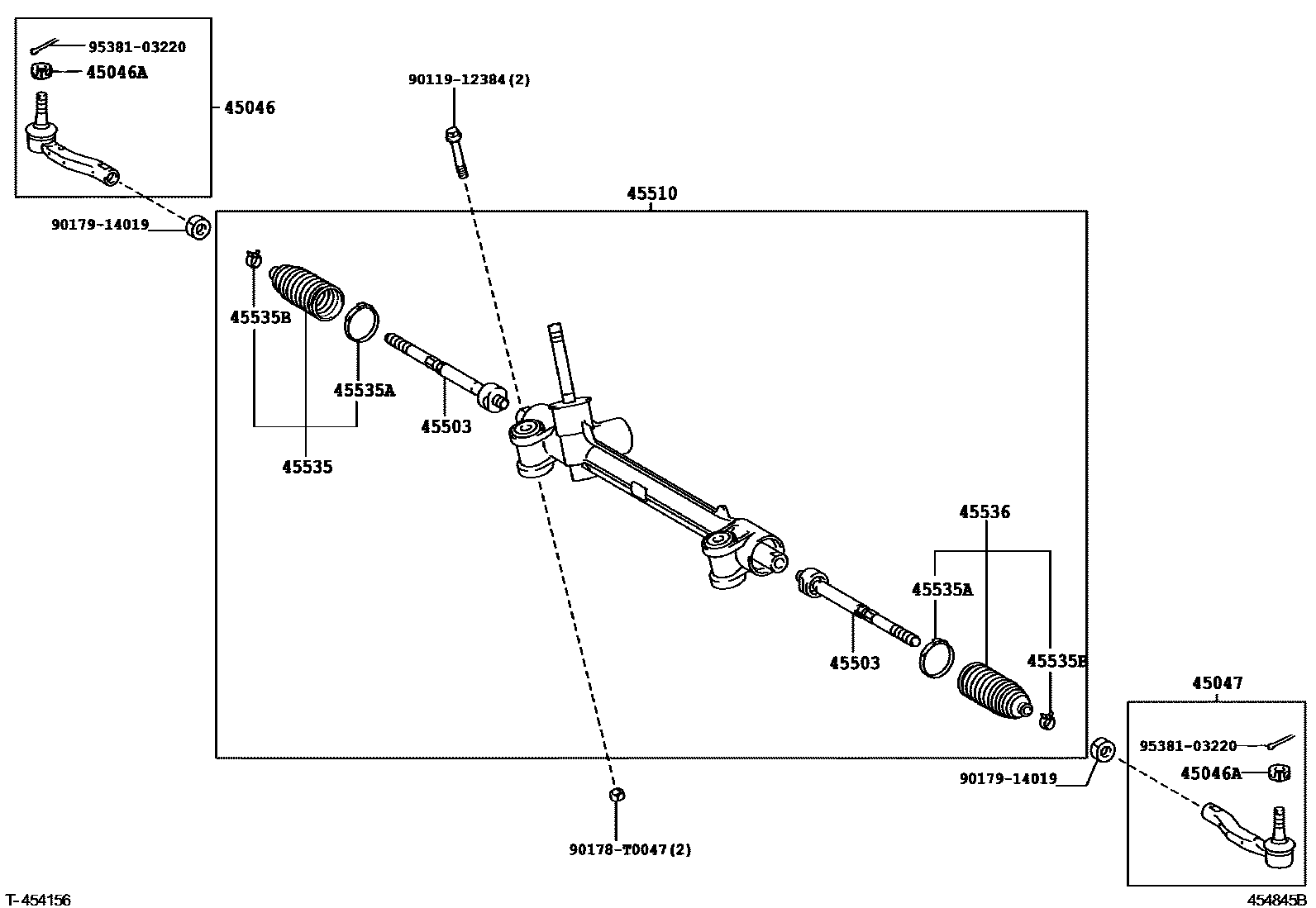

Toyota VIOS — FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09530iNCP9#200702-201403

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-T0004iNCP93..IDN,TH200702-201403

45047END SUB-ASSY, TIE ROD, LH

main45047-09250iNCP9#..MA,PH,VN200702-201403

45503END SUB-ASSY, STEERING RACK

main45503-0D080iNCP93..IDN,TH200702-201403

45510GEAR ASSY, STEERING

main45510-0D150iNCP9#..LHD200708-201301

sub45510-0D151

main45510-0D151iNCP9#..LHD201302-201403

main45510-0D180iNCP93..RHD200702-201301

sub45510-0D181

main45510-0D181iNCP93..RHD201302-201310

45535BOOT, STEERING RACK, NO.1

main45535-09100iNCP93..IDN,TH200702-201403

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-02020iNCP93..IDN,TH200702-201403

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iNCP93..IDN,TH200702-201403

45536BOOT, STEERING RACK, NO.2

main45535-09100iNCP93..IDN,TH200702-201403

9011912384

main90119-12384

90178T0047

main90178-T0047

9017914019

main90179-14019

9538103220

main95381-03220

13 parts on this diagram · 2 diagrams in section
