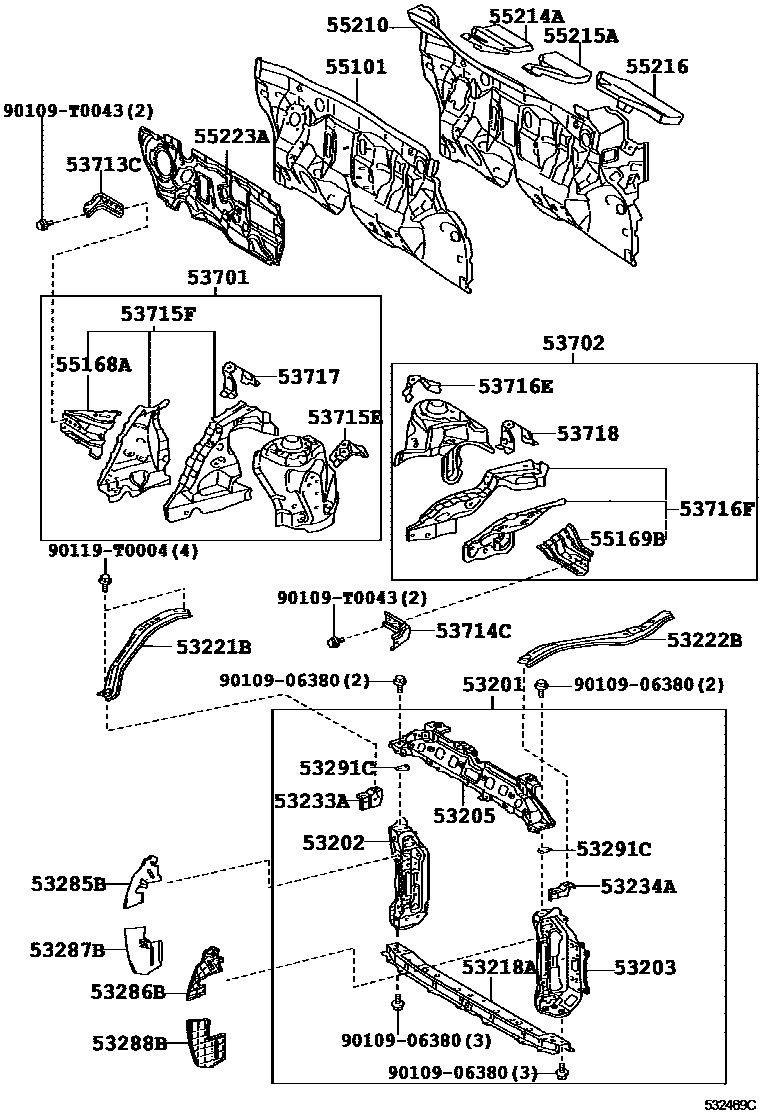

Toyota VIOS — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0D130iNCP9#200702-201403

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0D070iNCP93..IDN,TH200702-201403

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0D070iNCP93..IDN,TH200702-201403

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0D050iNCP93..IDN,TH200702-201306

main53205-0D050iNCP9#201306-201403

(L)

main53205-52100iNCP9#201306-201403

(J)

53218ASUPPORT, RADIATOR, LOWER

main53028-0D040iNCP93..IDN,TH200702-201306

main53028-0D040iNCP9#201306-201403

(L)

main53028-52070iNCP9#201306-201403

(J)

53221BBRACE, RADIATOR SUPPORT APRON, RH

main53221-0D010iNCP9#200702-201403

53222BBRACE, RADIATOR SUPPORT APRON, LH

main53222-0D010iNCP9#200702-201403

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-0D030iNCP93..IDN,TH200702-201403

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-0D030iNCP93..IDN,TH200702-201403

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-0D060iNCP9#200702-201001

sub53285-0D061

main53285-0D061iNCP9#201002-201403

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-0D060iNCP9#200702-201001

sub53286-0D061

main53286-0D061iNCP9#201002-201403

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-0D030iNCP9#200702-201001

sub53287-0D031

main53287-0D031iNCP9#201002-201403

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-0D030iNCP9#200702-201001

sub53288-0D031

main53288-0D031iNCP9#201002-201403

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-0D020iNCP93..IDN,TH200702-201403

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0D160iNCP9#200702-201403

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0D150iNCP9#200702-201403

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0D030iNCP93..IDN,TH200702-201403

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-0D030iNCP93..IDN,TH200702-201403

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0D020iNCP93..IDN,TH200702-201403

53715FAPRON, FENDER SIDE, RH

main53707-0D020iNCP93..IDN,TH200702-201403

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0D020iNCP93..IDN,TH200702-201403

53716FAPRON, FENDER SIDE, LH

main53708-0D020iNCP93..IDN,TH200702-201403

53717PLATE, FENDER APRON, RH

main53717-0D030iNCP9#..MA,PH,VN200702-201403

53718PLATE, FENDER APRON, LH

main53718-0D030iNCP93..IDN,TH200702-201403

55101PANEL SUB-ASSY, DASH

main55101-0D120iNCP93..ATM..(IDN,TH)200702-201304

main55101-0D230iNCP93..MTM..(IDN,TH)200702-201304

main55101-0D330iNCP9#..MTM..PH200708-201307

main55101-0D340iNCP9#..ATM..PH200708-201307

main55101-0D350iNCP93..MTM..VN200709-201403

main55101-0D360iNCP93..G..VN200709-201403

main55101-0D420iNCP93..MTM..MA200710-201310

main55101-0D430iNCP93..ATM..MA200710-201310

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-0D050iNCP93..IDN,TH200702-201403

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-0D050iNCP93..IDN,TH200702-201403

55210INSULATOR ASSY, DASH PANEL

main55210-0D180iNCP93..IDN,TH200702-201003

sub55210-0D340

main55210-0D190iNCP93..MA200710-201310

main55210-0D210iNCP9#..LHD200708-201403

main55210-0D340iNCP93..RHD..(15J,LIMO)201003-201304

main55210-0D440iNCP93..RHD..(15E,15G)201208-201304

main55210-0D450iNCP93..(E,G,S)..MA201208-201310

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-0D060iNCP93..MA200702-201310

main55214-0D090iNCP9#..LHD200708-201403

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-0D080iNCP93..RHD200702-201310

main55215-0D090iNCP9#..LHD200708-201403

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-0D030iNCP93..MA200702-201310

main55216-0D080iNCP9#..LHD200708-201403

55223AINSULATOR, DASH PANEL, OUTER

main55223-0D070iNCP93..RHD..(15E,15G,E,G,S)200702-201310

main55223-0D110iNCP9#..LHD200708-201403

main55223-0D280iNCP93..RHD..(15E,15G,E,G,S)201211-201310

9010906380

main90109-06380

90109T0043

main90109-T0043

90119T0004

main90119-T0004

35 parts on this diagram · 2 diagrams in section
