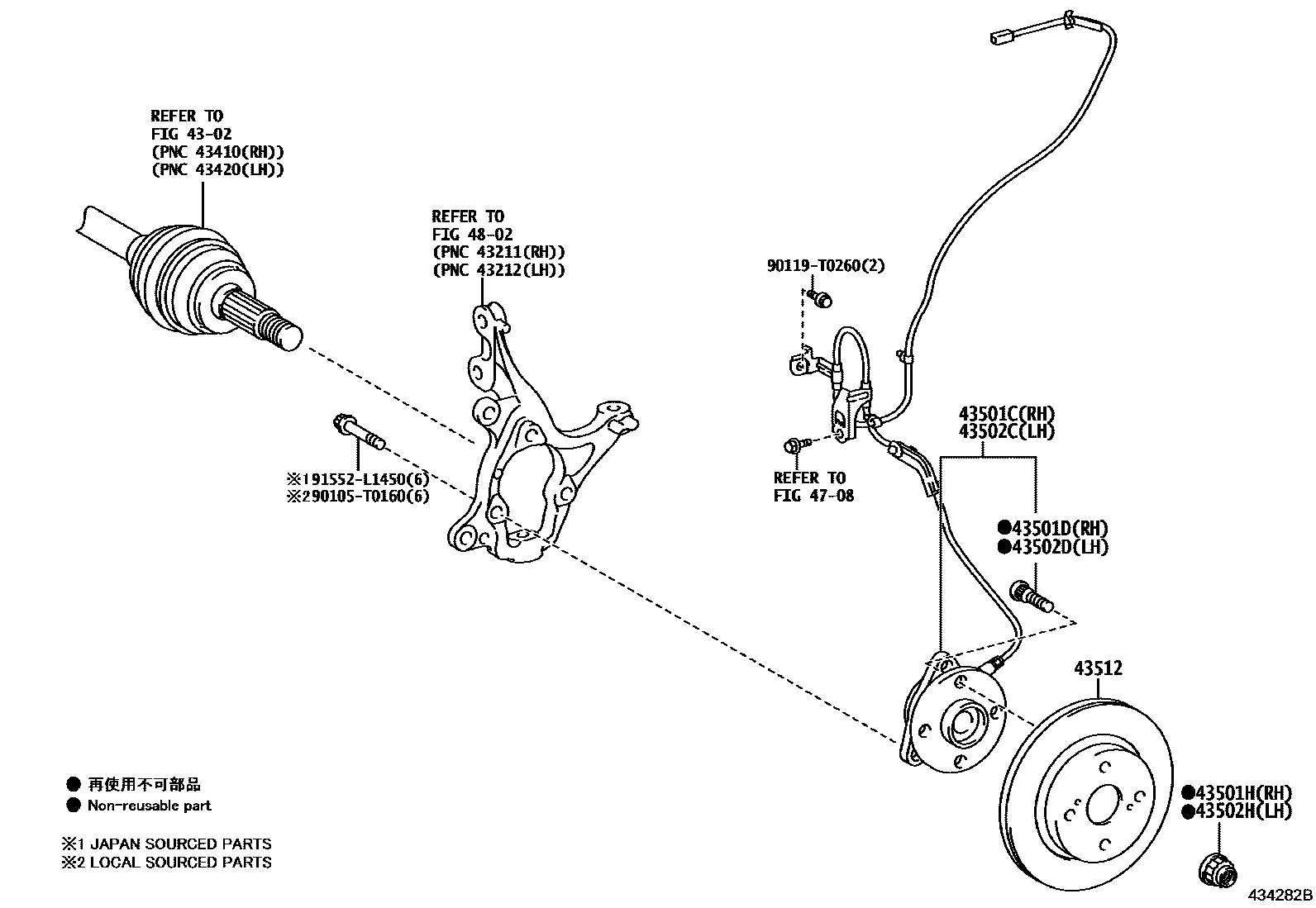

Toyota VIOS — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0D050iNSP151201911-202405

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02081×4iNSP151201911-202405

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNSP151201911-202405

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-0D050iNSP151201911-202405

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02081×4iNSP151201911-202405

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNSP151201911-202405

43512DISC, FRONT

main43512-0D100×2iNSP151201911-202405

main43512-0D190×2iNSP150201911

4708

4802

90105T0160

main90105-T0160

90119T0260

main90119-T0260

91552L1450

main91552-L1450

13 parts on this diagram · 1 diagram in section
