Toyota VIOS — FOG LAMP

81210ALAMP ASSY, FOG, RH

main81210-02120i200907-201004

main81210-02121i201007-201403

main81210-0D041i200702-200907

81210BBULB, FOG LAMP

main90981-13075×2i200907-201004

12V 55W,HALOGEN

main90981-13081i200702-200907

12V 55W,HALOGEN

81220LAMP ASSY, FOG, LH

main81220-02120i200907-201004

main81220-02121i201007-201403

main81220-0D041i200702-200906

9016750063

main90167-50063

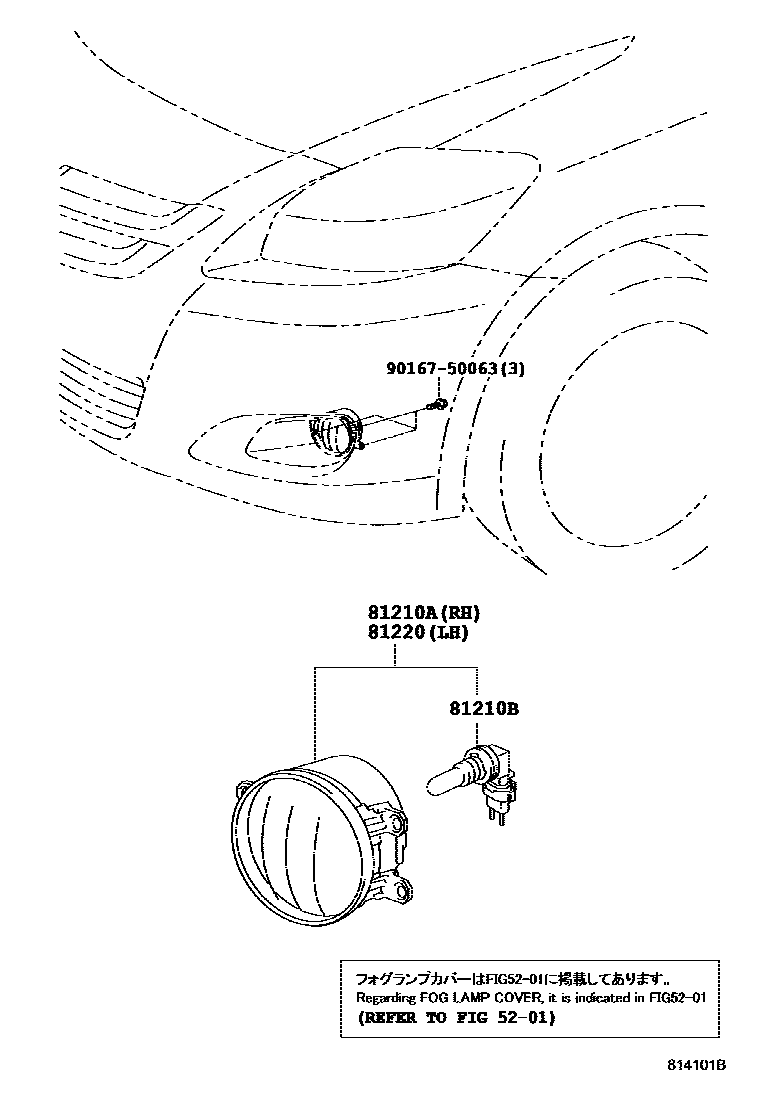

4 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota VIOS

This section contains 4 genuine Toyota parts for the FOG LAMP system of the Toyota VIOS. Key components include: LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP ASSY, FOG, LH.
