Toyota VIOS — FLOOR INSULATOR

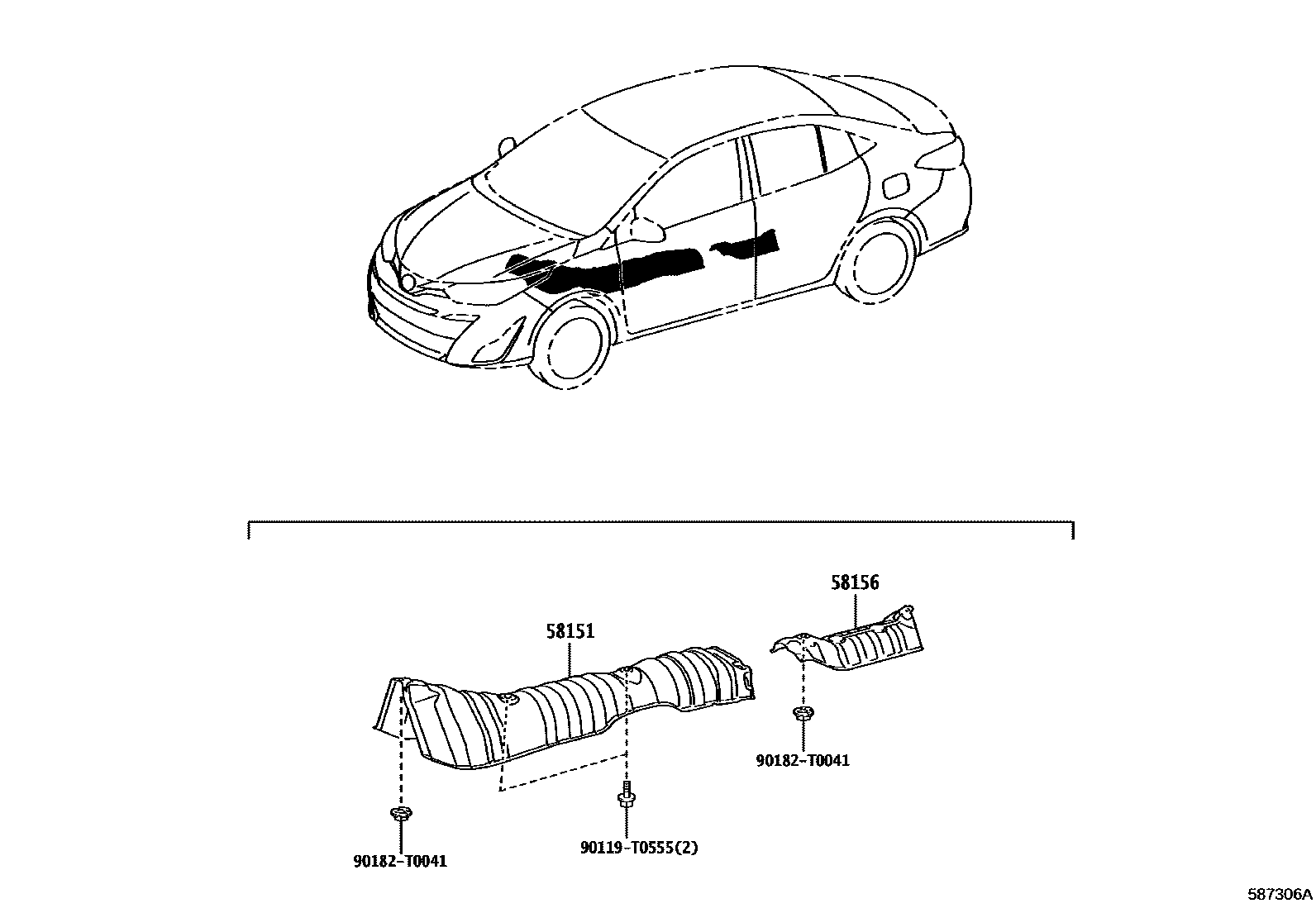

Parts diagram
58151INSULATOR, FRONT FLOOR HEAT, NO.1
main58151-0D180i201911-202405
58156INSULATOR, FRONT FLOOR HEAT, NO.4
main58156-0D140i201911-202405
90119T0555
main90119-T0555
90182T0041
main90182-T0041

4 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota VIOS

This section contains 4 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota VIOS. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.4.
