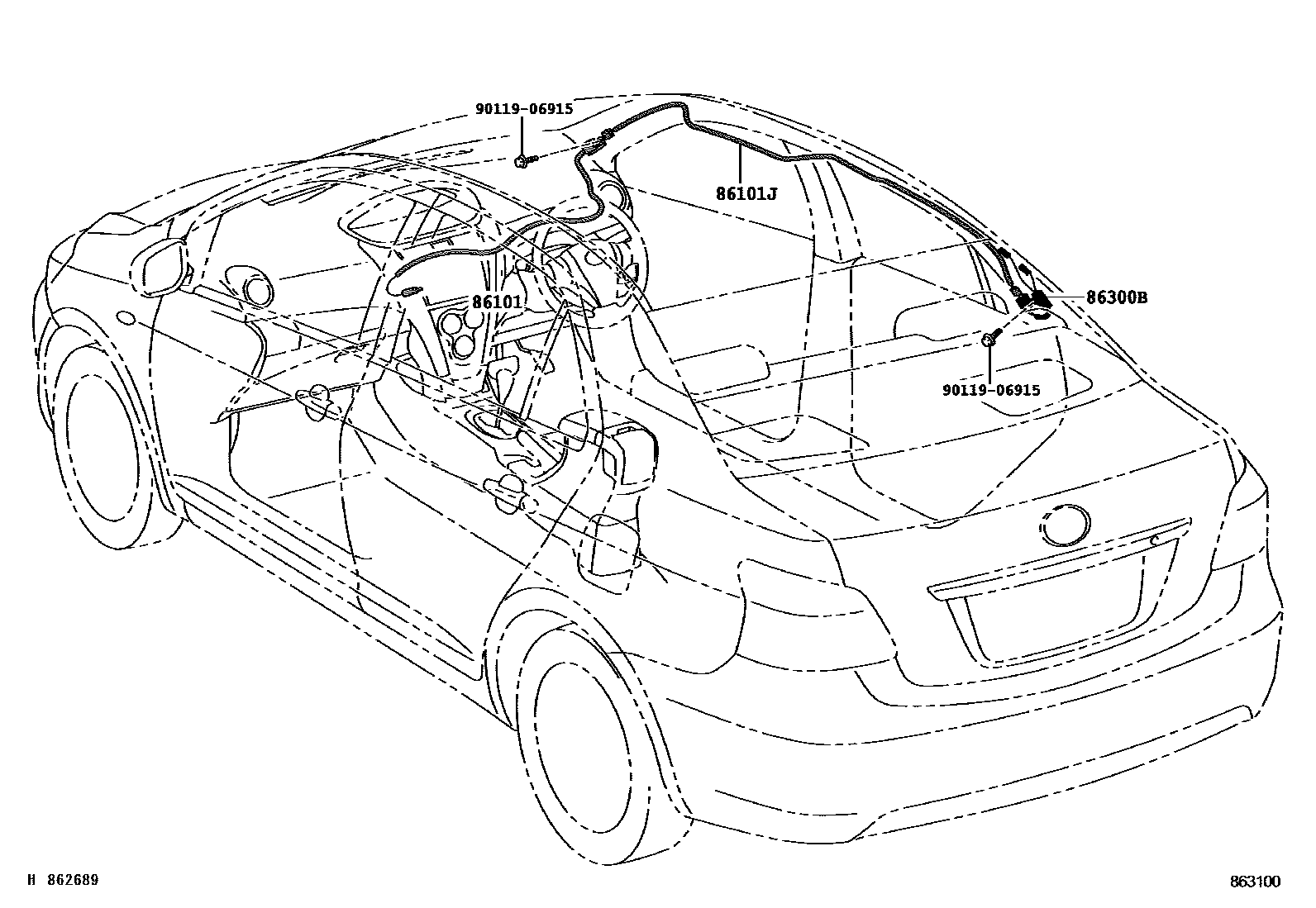

Toyota VIOS — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-0D240iNCP93..IDN,TH200702-201304

main86101-0D280iNCP93..MA200710-201310

main86101-0D290iNCP9#..LHD200708-201403

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0D220iNCP93..IDN,TH200702-201304

main86101-0D270iNCP9#..MA,PH,VN200708-201403

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0D150iNCP9#200702-201403

9011906915

main90119-06915

4 parts on this diagram · 1 diagram in section
